Parameter sets of signal modules

A.5 Settings from the digital output module SM 322; DO 16 x DC 24 V/0.5 A (6ES7322-8BH10-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

531

Structure of data record 1

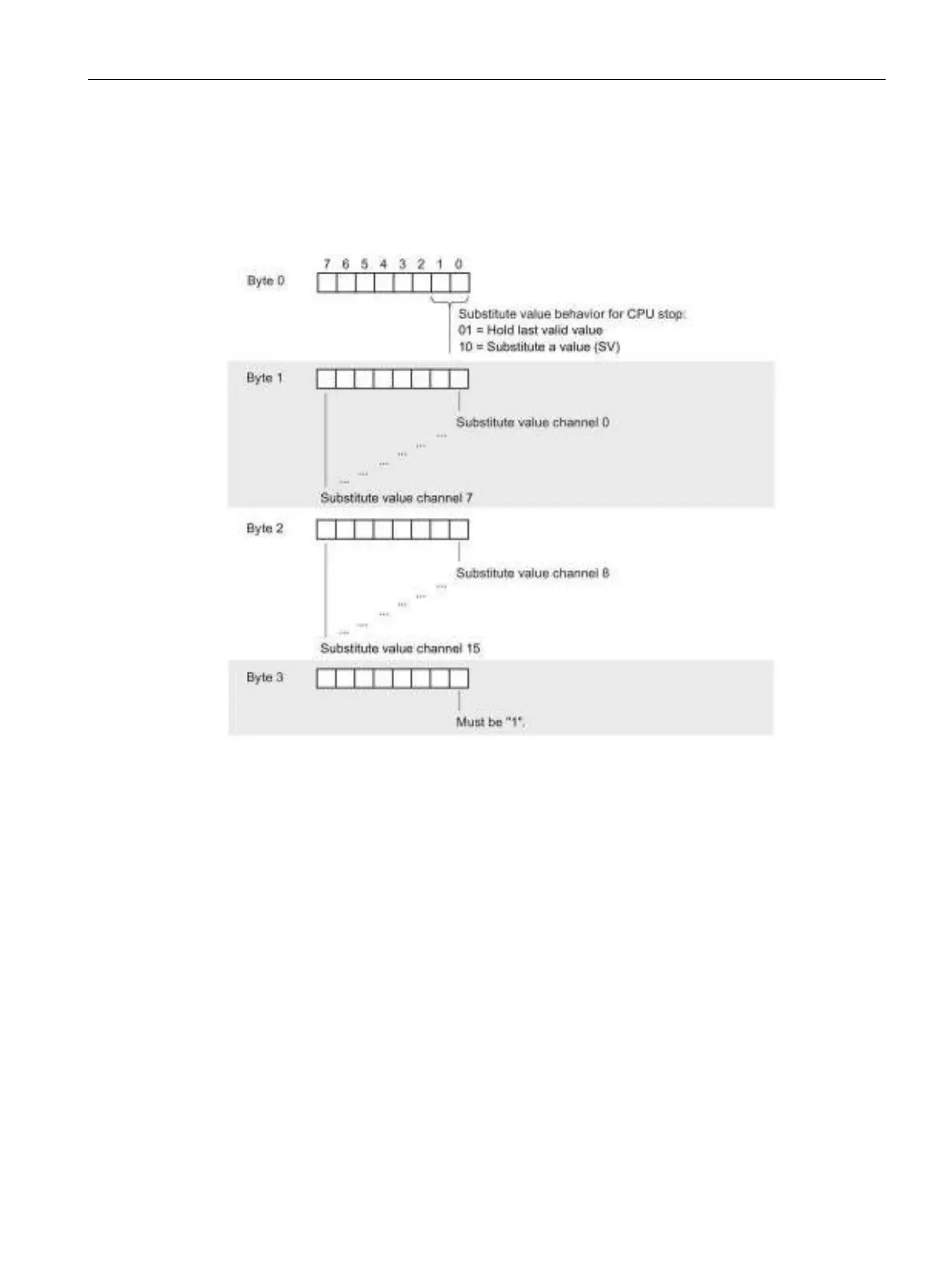

The figure below shows the structure of data record 1 for the parameters of digital output

modules.

You enable a parameter by setting a logic "1" at the corresponding bit of byte 0.
