Parameter sets of signal modules

A.8 Parameters of SM 331; AI 8 TC

S7-300 Module data

552 Manual, 06/2017, A5E00105505-AJ

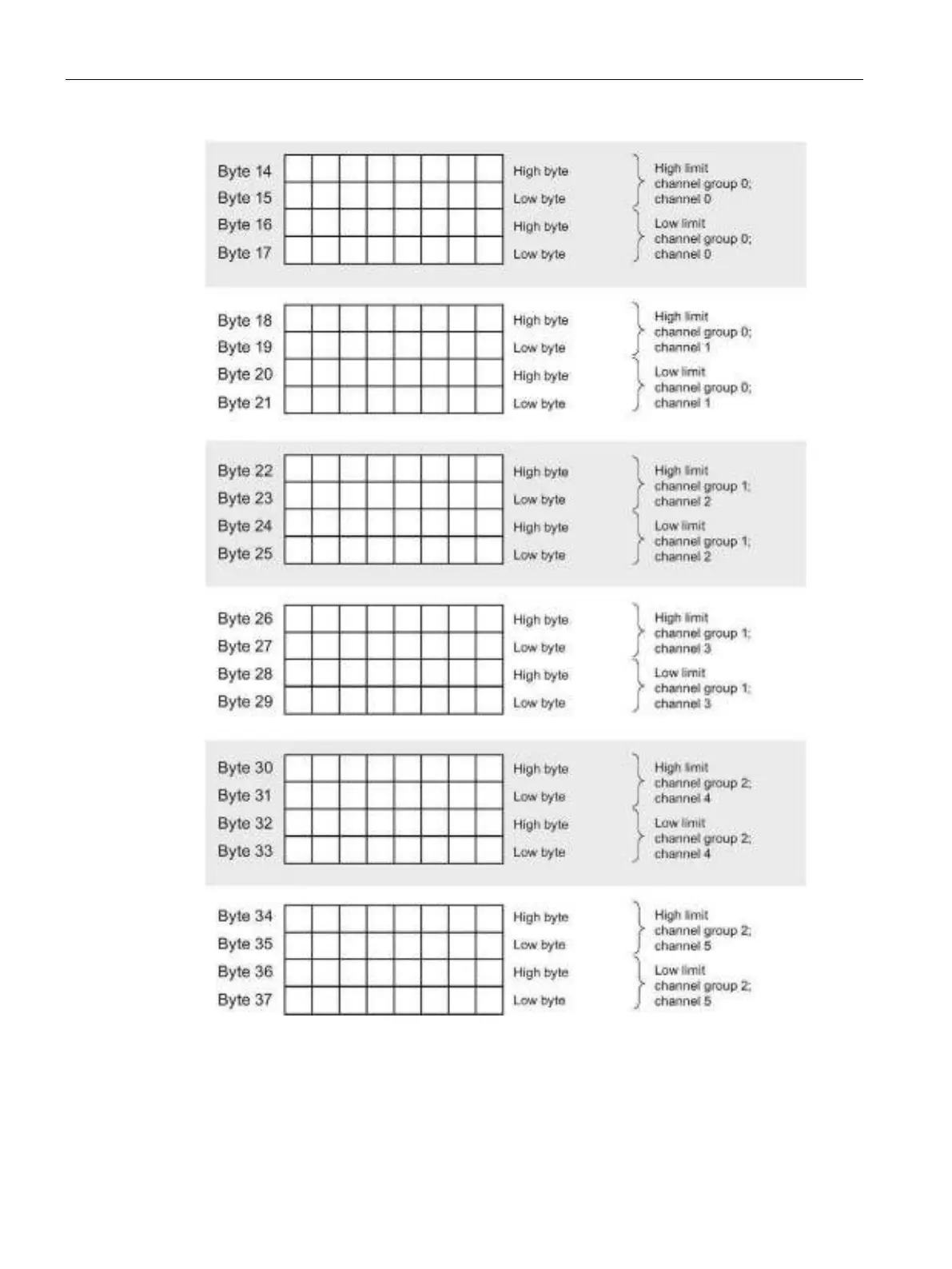

Figure A-14 Data record 128 of SM 331; AI 8 TC (continued)
