Parameter sets of signal modules
A.10 Setting of the analog input module SM 331; AI 8 x 16 Bit (6ES7331-7NF10-0AB0)
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
561
Structure of data record 1
The figure below shows the structure of data record 1 for the parameters of the electrically
isolated analog input module SM 331; AI 8 x 16 bit.
You enable a parameter by setting a logical "1" at the corresponding bit in byte 0.

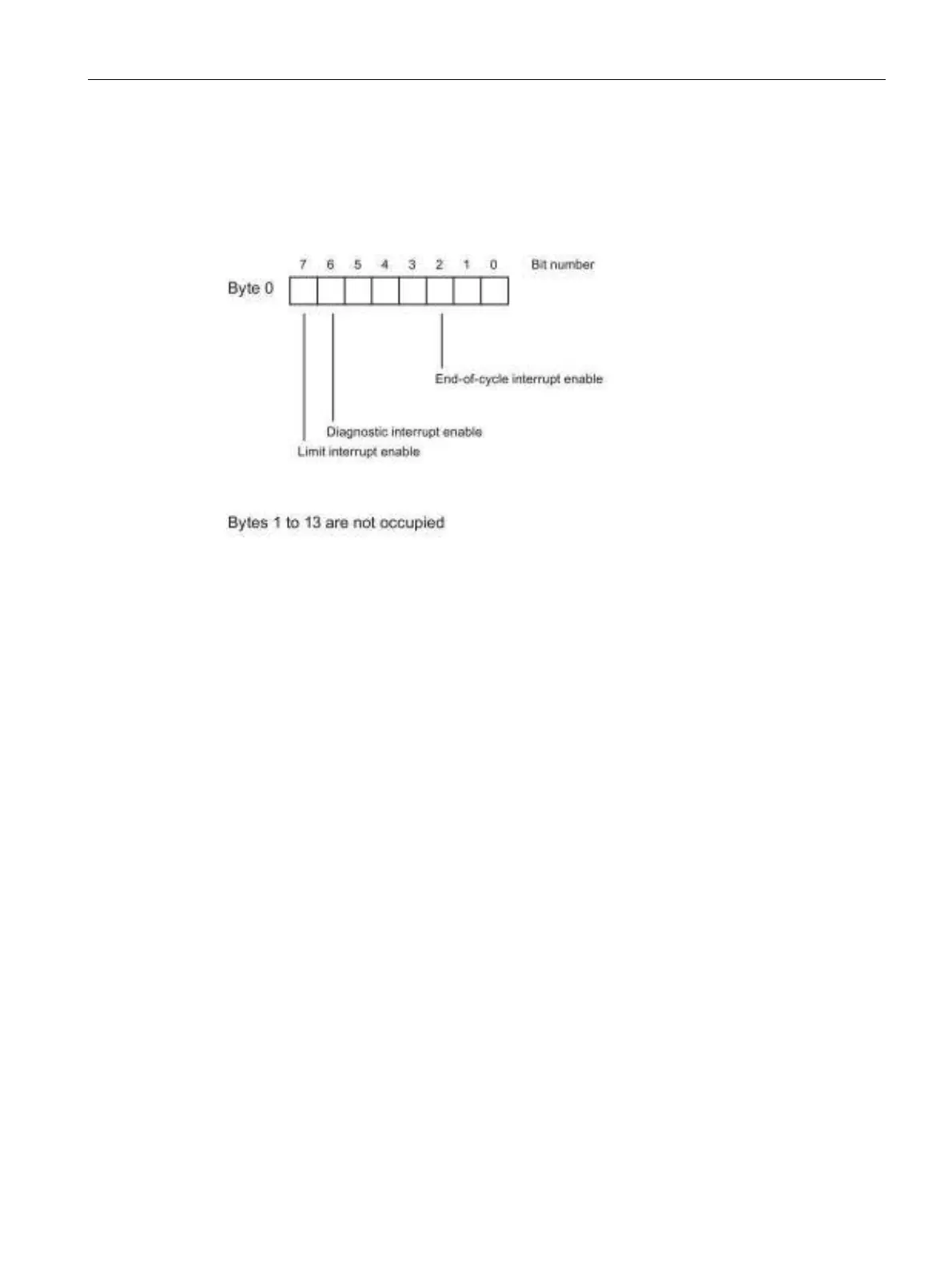

Figure A-17 Data record 1 for parameters of SM 331; AI 8 x 16 Bit
