Parameter sets of signal modules

A.11 Parameters of analog input module SM 331; AI 6 x TC isolated

S7-300 Module data

570 Manual, 06/2017, A5E00105505-AJ

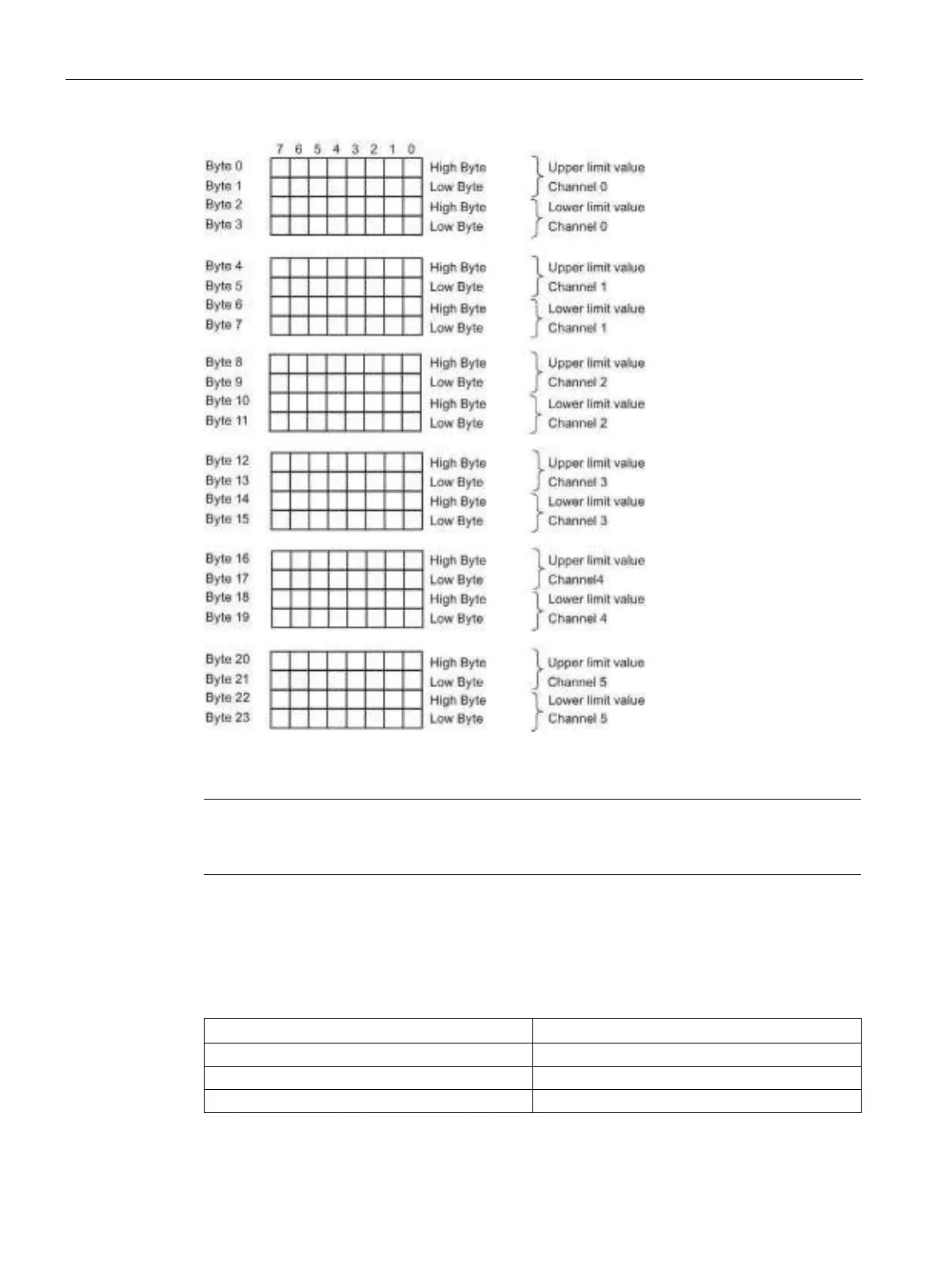

Figure A-24 Data record 128 for AI 6 x TC

Note

The representation of limits matches the analog value representation. When defining limit

values, take the measuring range limits into account.

Temperature measurement

The table below contains the coding you must enter at byte 0 of data record 1 for the various

temperature measurements.

Temperature unit for linearization

Code

Celsius

2#00

Fahrenheit

2#01

Kelvin

2#10
