Diagnostics data of signal modules

B.2 Structure and content of diagnostics data, byte 0 and up

S7-300 Module data

586 Manual, 06/2017, A5E00105505-AJ

Bytes 4 to 6 info block (data record 1)

Bytes 4 to 6 form the info block, which contains information relating to the channel type, the

length of the diagnostic information, and the number of channels.

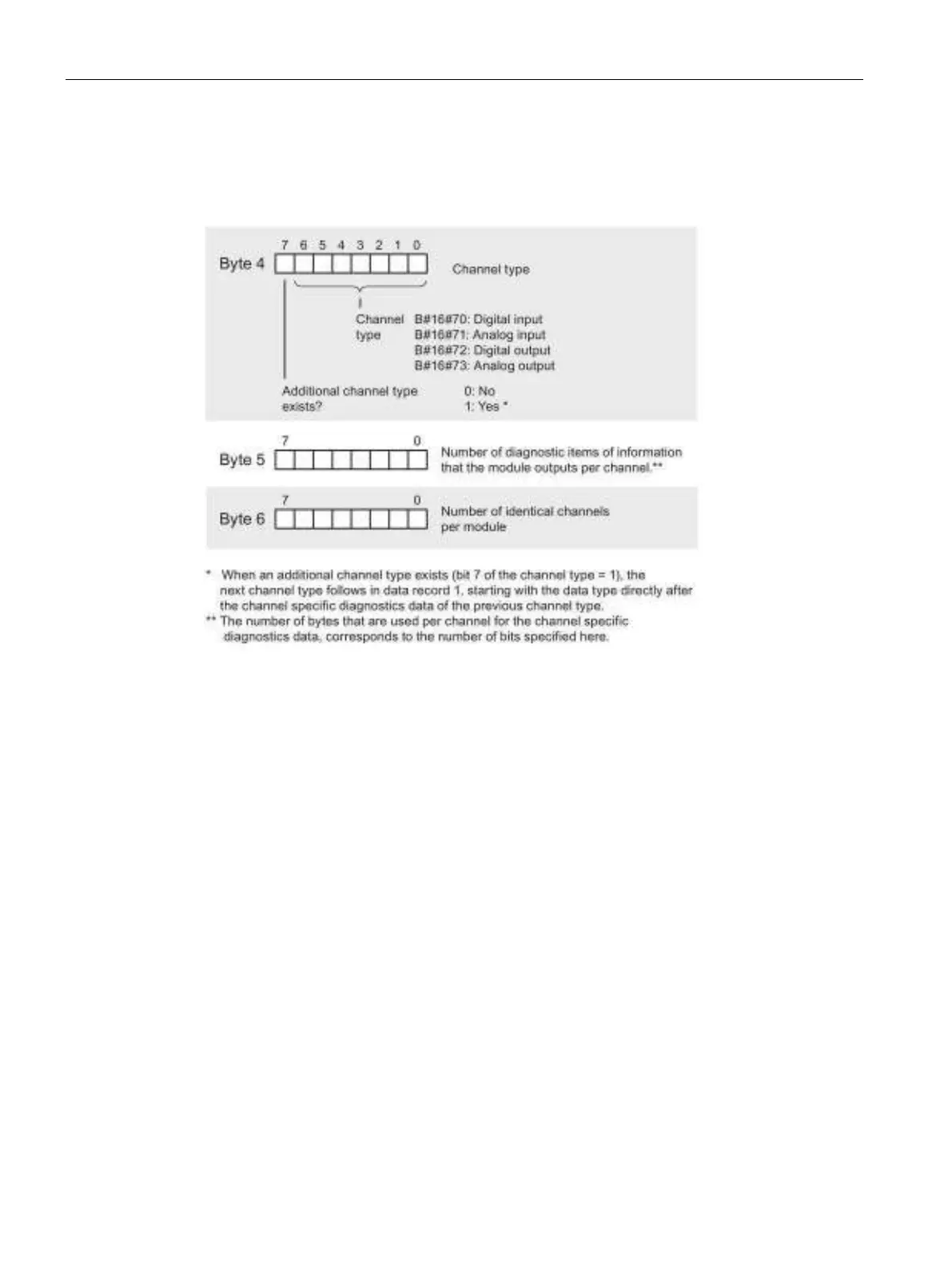

Figure B-3 Bytes 4 to 6 of diagnostics data
