Dimensional drawings
C.2 Dimensional drawings of the power supply modules
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
607
PS 307 5 A (6ES7307-1EA01-0AA0)
The drawing below shows the dimensions of power supply module PS 307; 5 A.

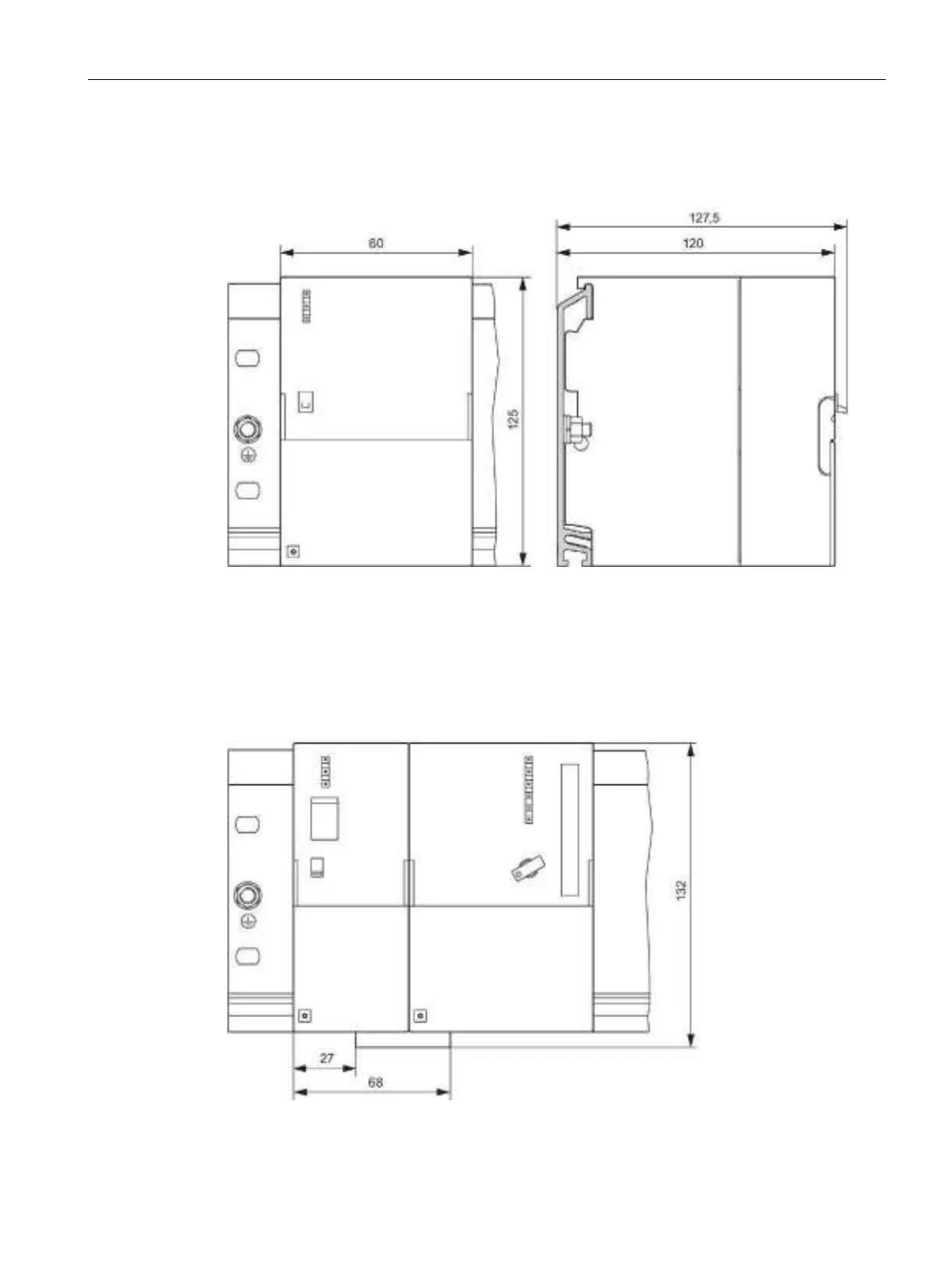

Figure C-11 Power supply module PS 307; 5 A
PS 307; 10 A with 313/314/315/ 315-2 DP CPU
The figures below show the dimensional drawings of a configuration consisting of a power
supply module PS 307; 10 A and a 313/314/315/315-2 DP CPU. Observe the dimensions
derived from the use of a power connector when wiring the PS 307; 10 A to the CPU.
Figure C-12 Dimensional drawing of power supply module PS 307; 10 A with CPU 313/314/315/315-
2 DP, front view
