Dimensional drawings

C.2 Dimensional drawings of the power supply modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

609

PS 305 2 A, PS 307 5 A (6ES7307-1EA80-0AA0) and PS 307 10 A

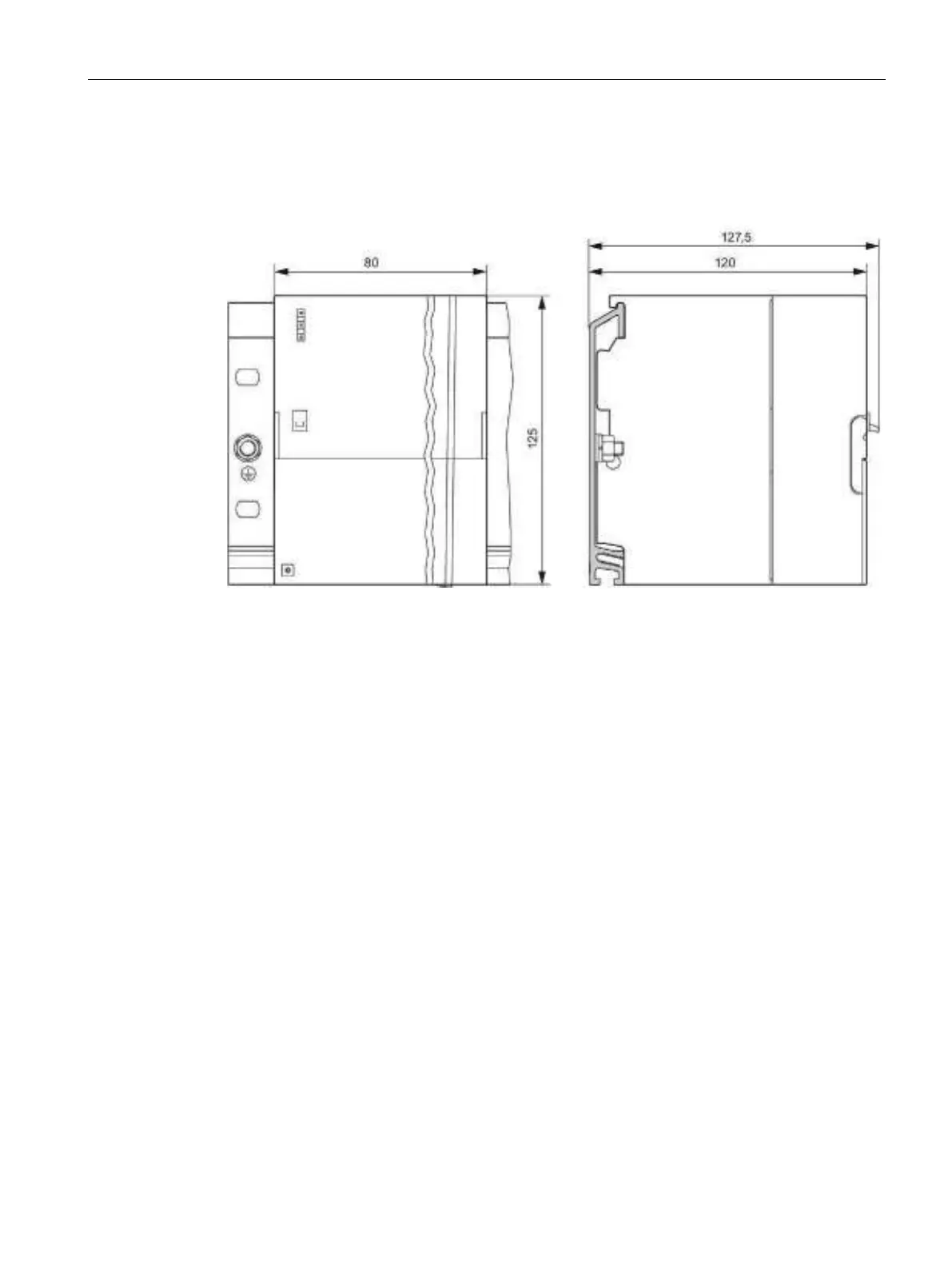

The following image shows the drawing of the power supply modules PS 305; 2 A,

PS 307 5 A and PS 307; 10 A.

Figure C-14 Power supply module PS 307; 10 A
