Dimensional drawings

C.3 Dimensional drawings of the interface modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

611

IM 365

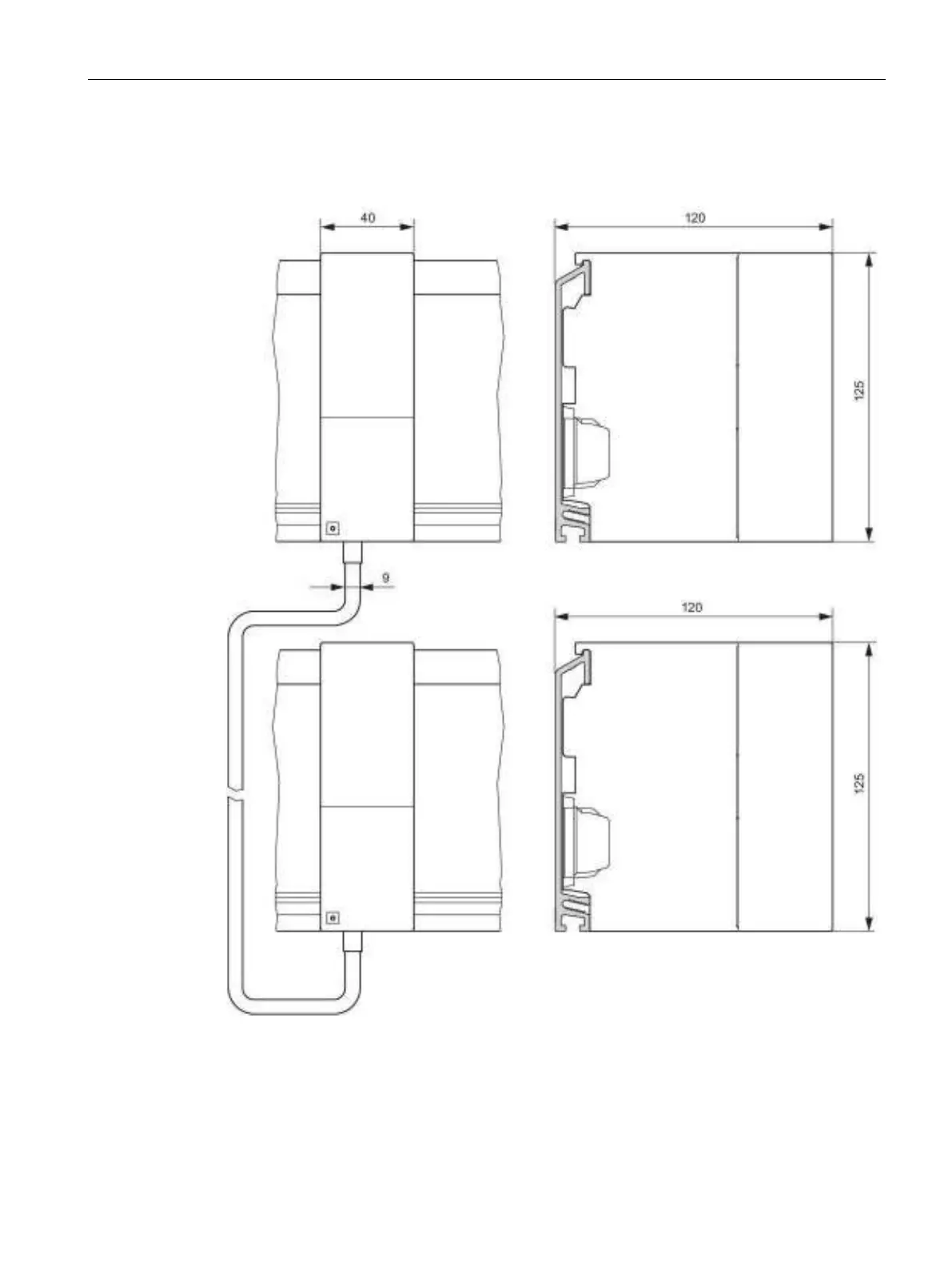

The figure below shows the dimensional drawing of interface module IM 365.

Figure C-17 Interface module IM 365
