Dimensional drawings

C.4 Dimensional drawings of the signal modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

613

64-channel signal module

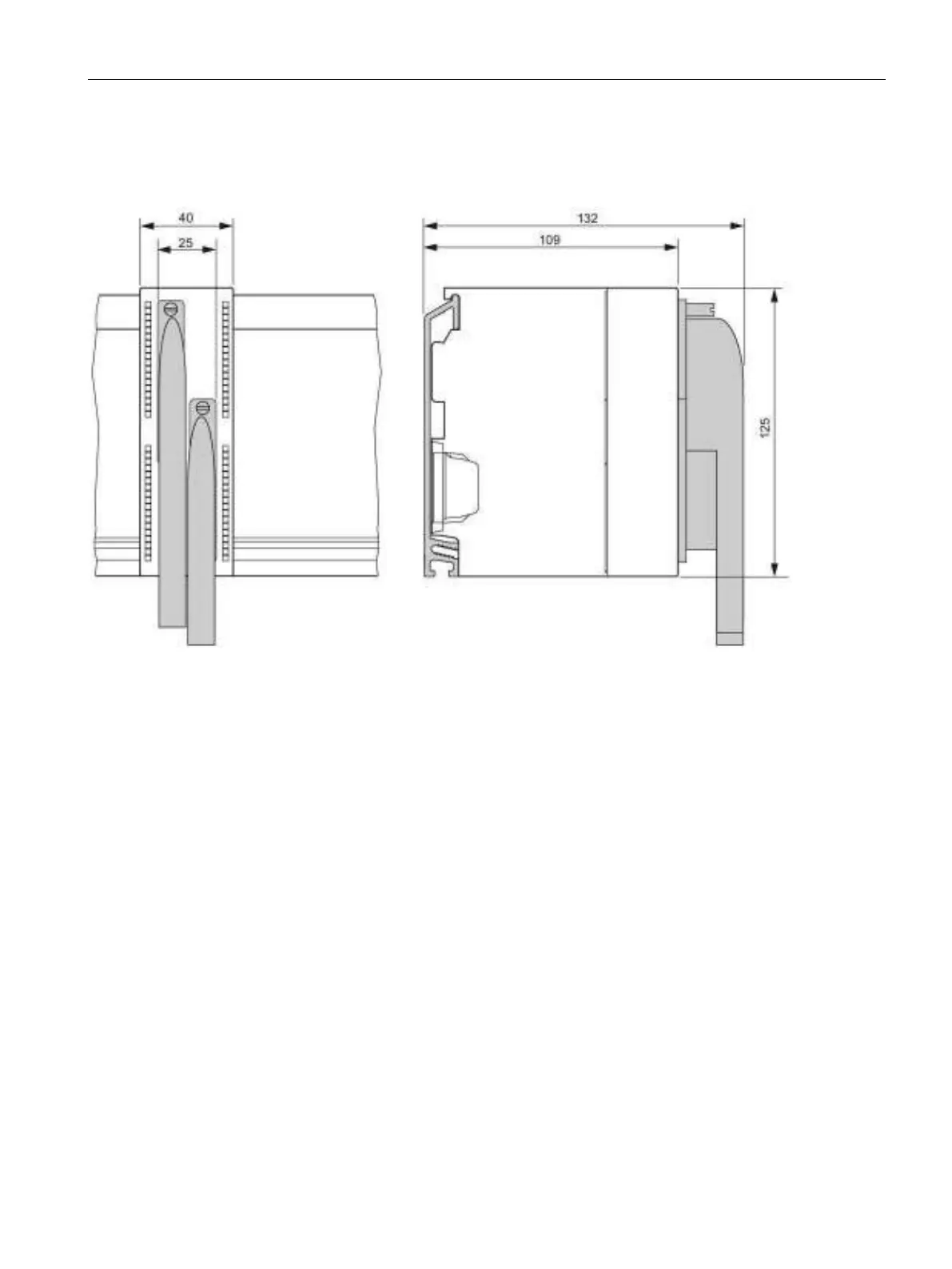

The figure below shows the dimension drawing for 64-channel I/O modules.

Figure C-19 64-channel signal module
