Digital modules

3.6 Digital input module SM 321; DI 64 x DC 24 V, sinking/sourcing; (6ES7321-1BP00-0AA0)

S7-300 Module data

64 Manual, 06/2017, A5E00105505-AJ

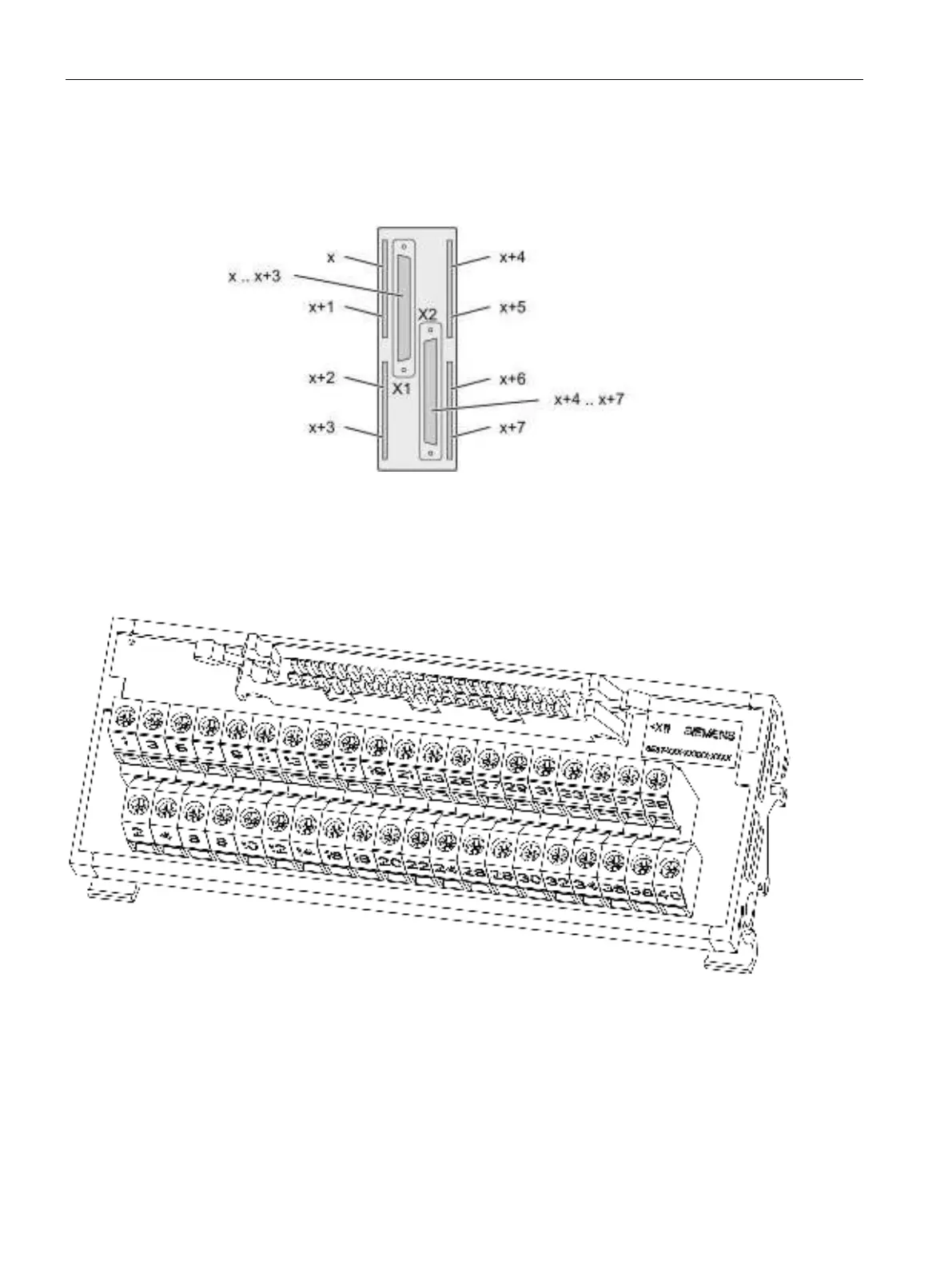

Terminal assignment of SM 321; DI 64 x DC 24 V, Sinking/Sourcing

The figure below shows how channels are assigned to addresses (input byte x up to input

byte x+7).

40-pin terminal block

SM321; DI 64 X DC 24 V Sinking/Sourcing features two terminal blocks for connecting

actuators and sensors to the module front connector. A connecting cable is used to establish

the module connections.
