3.3.2 Cooling and ventilation
The machines of this series are three-phase induction machines with a closed primary (internal)
cooling circuit and an open secondary cooling circuit (surface cooling). The surface cooling
varies depending on the version.
3.3.2.1 Machines with a fan

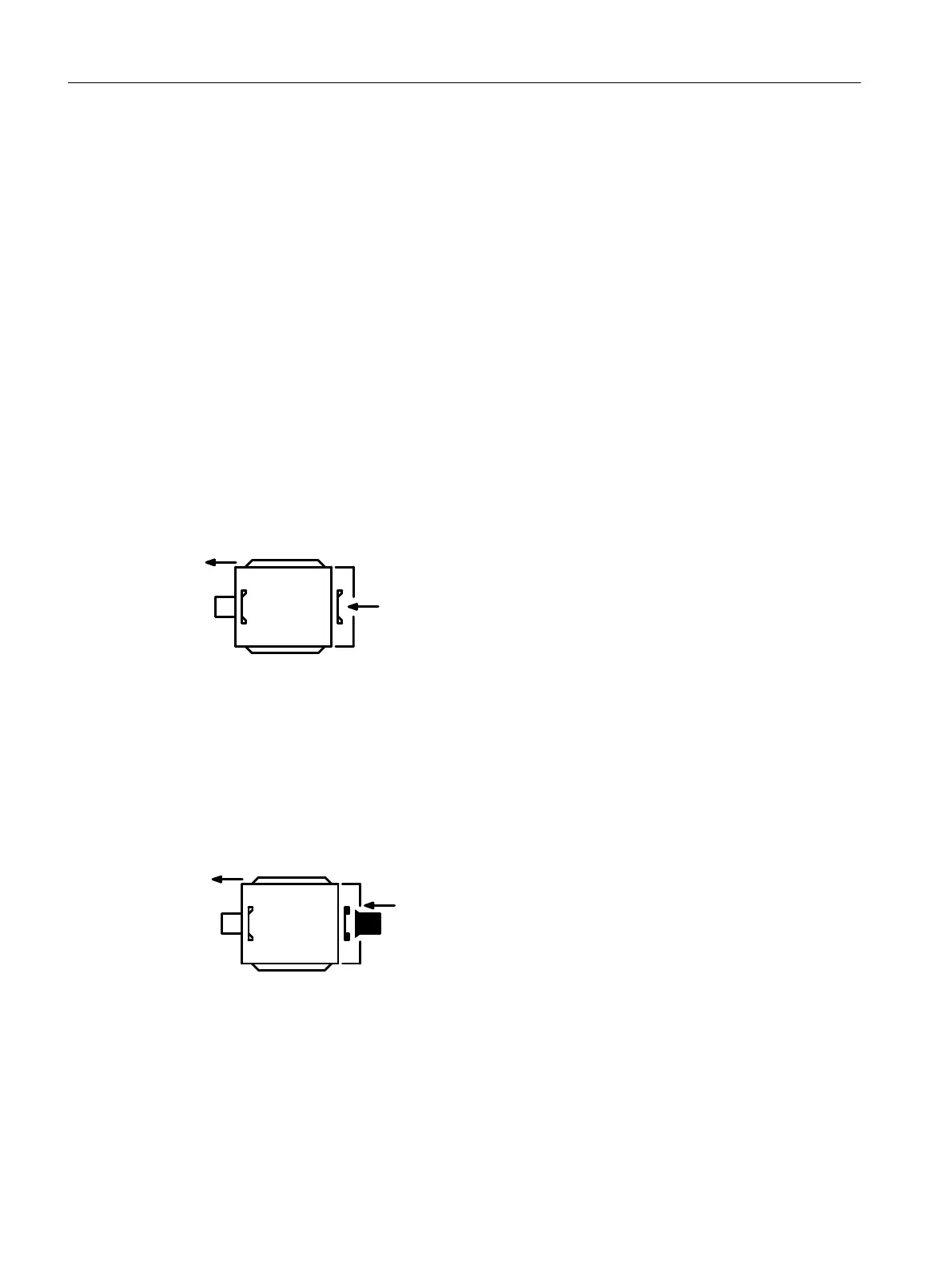

Self-ventilation (standard): Cooling method IC 411 according to EN/IEC60034-6
Located at the ND end of the stator housing is an air intake cowl that guides the external air on
its way to the motor. The external air is drawn in through openings in the air intake cowl and
ows axially across the outer cooling ribs of the motor frame. The fan wheel for the external
ow of cooling air is attached to the machine shaft.
The fan wheels are bidirectional.
Check the cooling eect below rated speed in the case of frequent switching or braking – or if
the speed is controlled continually below the rated speed.
Forced ventilation (optional): Type of cooling IC 416 in accordance with EN/IEC60034-6
Cooling that does not depend on the speed is achieved by means of a unit that is independent
of the motor operating state (forced ventilation). This unit is closed to the outside by a fan cover.
It has its own main drive with fan impeller which creates the cooling air ow required for cooling
the motor.
3.3.2.2 Machines without a fan (optional)
Cooling method IC 410
Surface cooling by free convection: Cooling method IC 410 according to EN/IEC60034-6
Cooling method IC 418
Description
3.3Installation
1MB..1/2/3/4 - shaft heights 63 ... 355
30 Operating Instructions, 11/2023, A5E52779900A
