3.3.6 Types of construction/method of installation
The type of construction of the machine is stated on the rating plate.

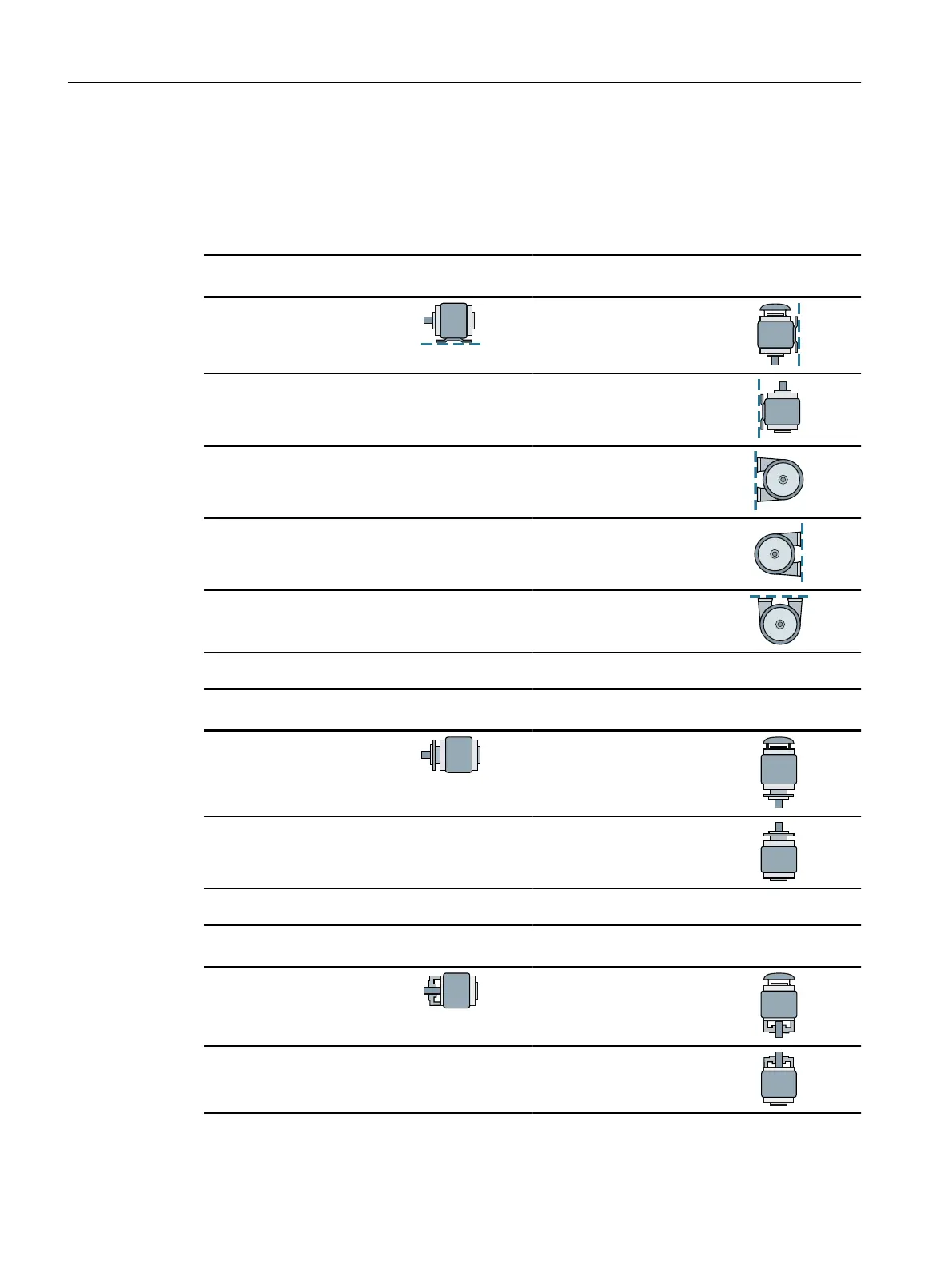

Table 3-3 Type of construction
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB3(IM1001) IM V5 (IM 1011)
  IM V6 (IM 1031)
  IMB6(IM1051)
  IMB7(IM1061)
  IMB8(IM1071)
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB5(IM3001) IM V1 (IM 3011)
  IM V3 (IM 3031)
Basic type of construc‐
tion code
Diagram Other methods of in‐
stallation
Diagram
IMB14(IM3601) IM V18 (IM 3611)
  IM V19 (IM 3631)
Description
3.3Installation
1MB..1/2/3/4 - shaft heights 63 ... 355
32 Operating Instructions, 11/2023, A5E52779900A
