Basic type of construc‐
tion code

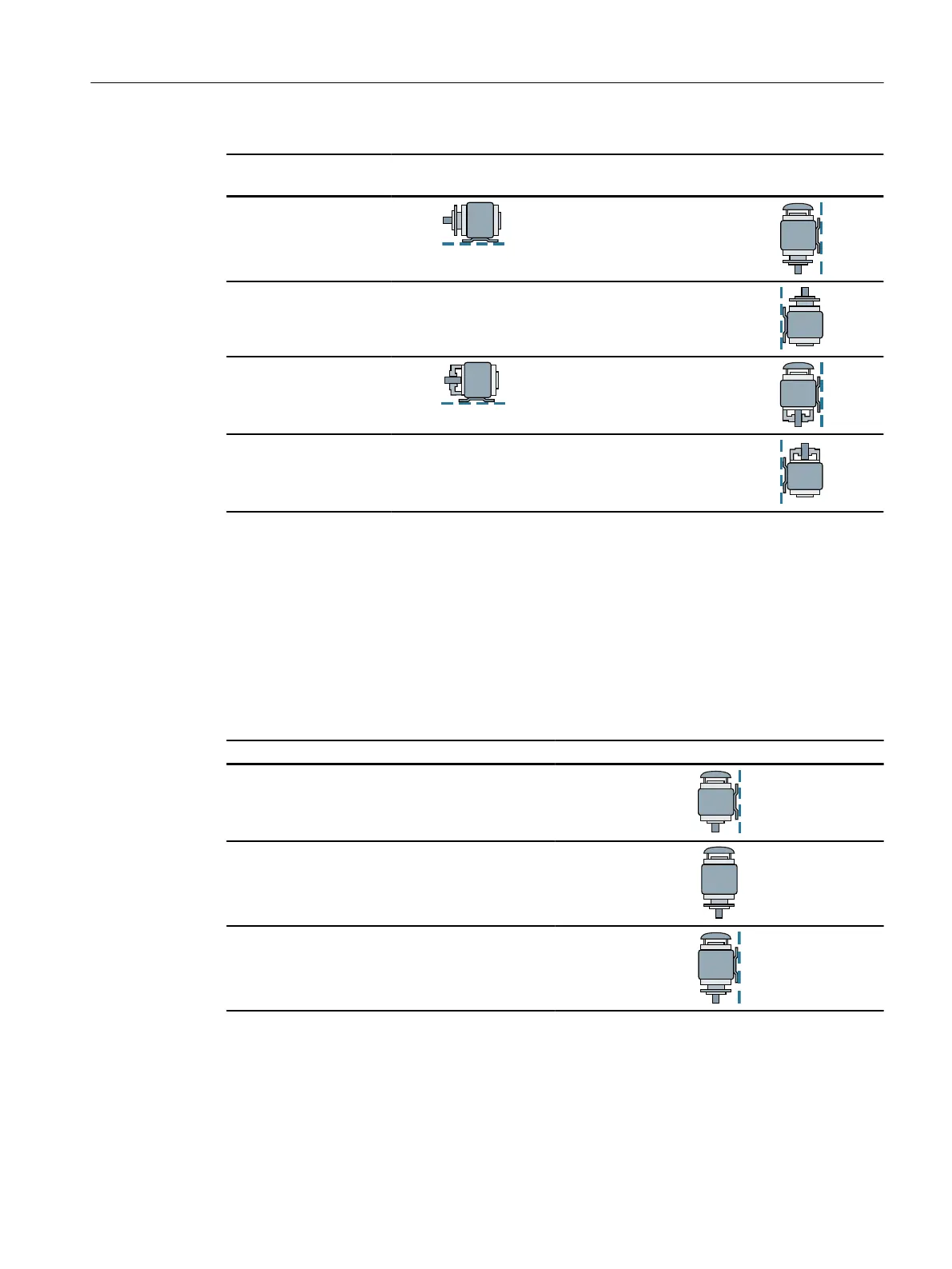

Diagram  
IMB35(IM2001) IMV15(IM2011)

  IMV35(IM2031)
IMB34(IM2101) IM V17 (IM 2111)
  IM V37 (IM 2131)
Types of construction/Installation conditions for explosion-proof machines
The type of construction of the machine is stated on the rating plate.
In the case of explosion-proof machines where the shaft extensions point downwards (types
of construction IM V5, IM V1 or IM V18 ) a protective top cover is mandatory. Explosion-proof
machines with IM V5, IM V1 and IM V18 types of construction are 󹪝tted with a canopy at the
factory.
Table 3-4 Construction type with canopy
Conditions of installation Diagram
IM V5 (IM 1011)
IM V1 (IM 3011)
IMV15(IM2011)
Description
3.3Installation
1MB..1/2/3/4 - shaft heights 63 ... 355
Operating Instructions, 11/2023, A5E52779900A 33
