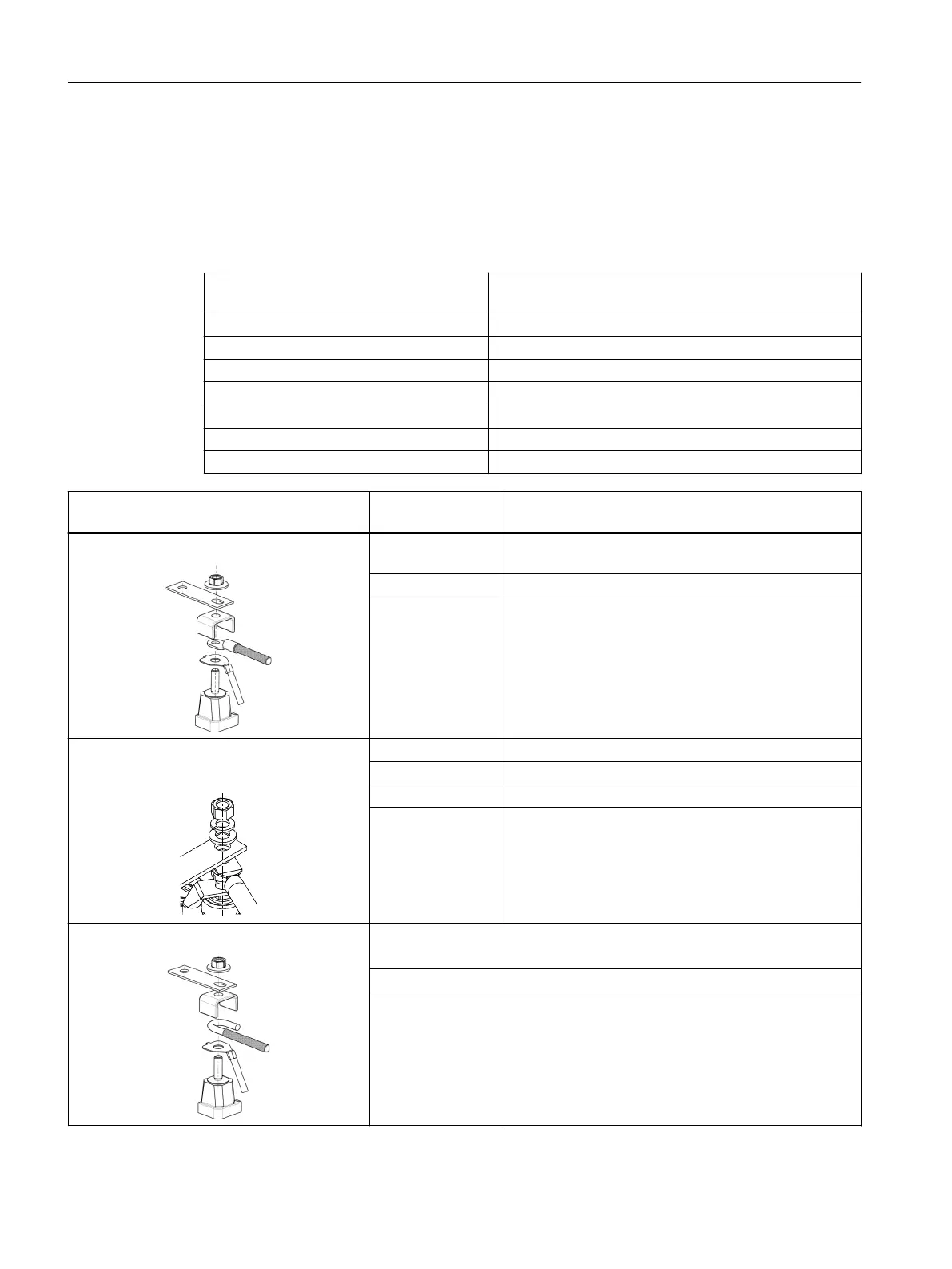

6.5 Conductor connection
Cross-sections that can be connected depending on the size of the terminal (possibly reduced
due to size of cable entries)
Table 6-3 Maximum conductor connection for explosion-protected machines
Shaft height Max. connectable conductor cross-section
mm²
63 ... 112 4.0
132 6.0
160 16.0
180 10.0
200 ... 225 50.0
250 ... 280 120.0
315 240.0
Type of connection Terminal studs Cable cross-section
mm²
Connection with cable lug DIN 46234 M4 1 ... 4
1 ... 6 (shaft height 132)
M5 1 ... 16
M6 4 ... 35
Connection with cable lug DIN 46234
Degree of protection "tb / tc"
M8 6...35
M10 6...120
M12 10...240
M16 25...240
Connection of a single conductor M4 1 ... 4
1 ... 6 (shaft height 132)
M5 1 ... 16
M6 4 ... 35
Electrical connection
6.5Conductor connection
1MB..1/2/3/4 - shaft heights 63 ... 355
88 Operating Instructions, 11/2023, A5E52779900A
