Siemens SIMOTICS XP 1MB 1 Series User Manual

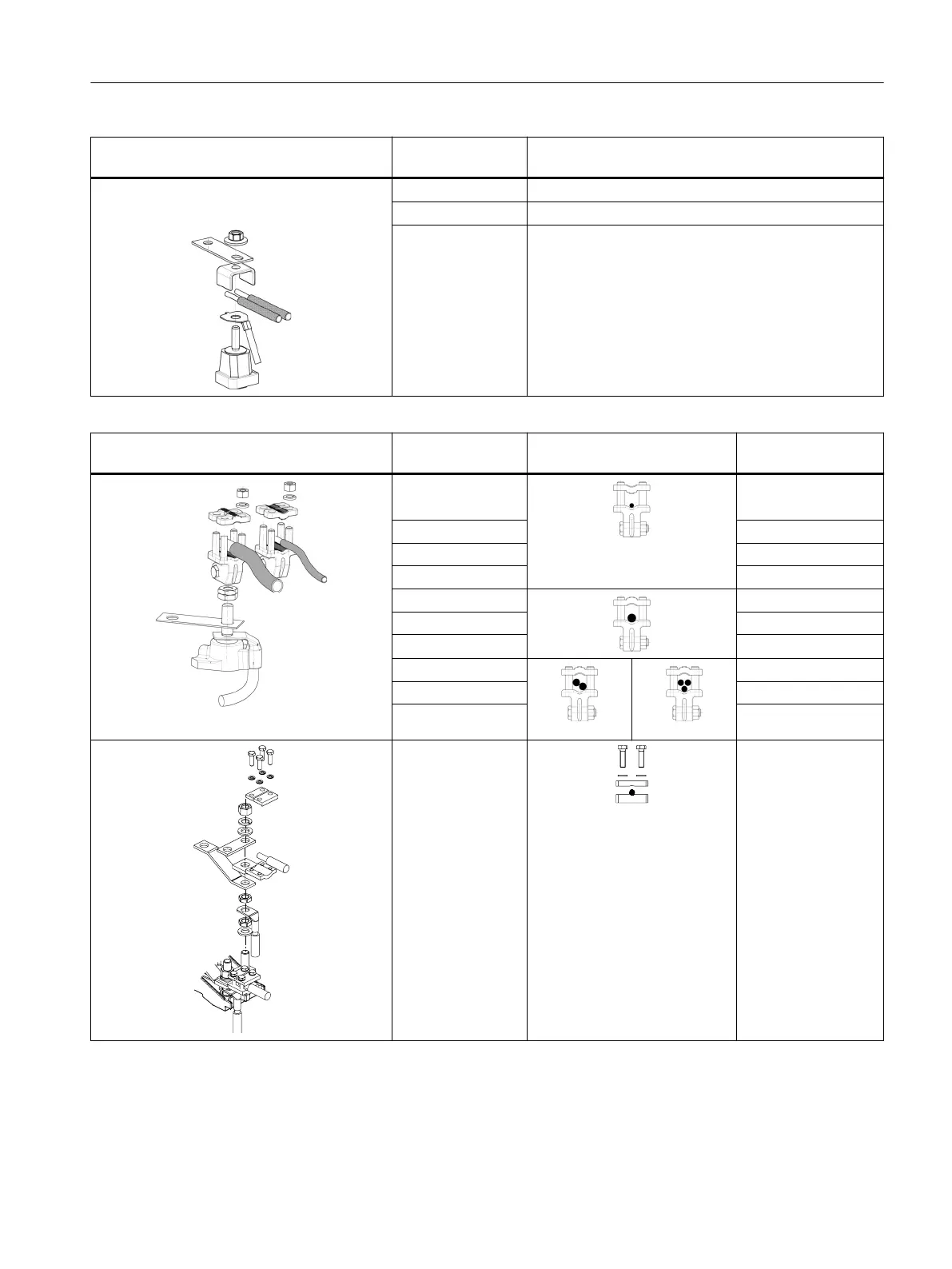

Type of connection Terminal studs Cable cross-section
mm²
Connecting 2 conductors with the same thick‐
ness using a terminal clamp
M4 Not permitted
M5 Not permitted
M6 4 ... 35
Type of connection Terminal studs Cable position with terminal Cable cross-section
mm²


M8
2.5...25
M10 10 ... 95
M12 25 … 185
M16 50 … 300
M10 50 … 120
M12 95 … 240
M16 120 … 300
M10 16 … 35
M12 16 … 70
M16 16 … 120
M16 25 ... 300
Electrical connection
6.5Conductor connection
1MB..1/2/3/4 - shaft heights 63 ... 355
Operating Instructions, 11/2023, A5E52779900A 89
