Siemens SINAMICS G120C Function Manual

Configuring telegram 900
Procedure

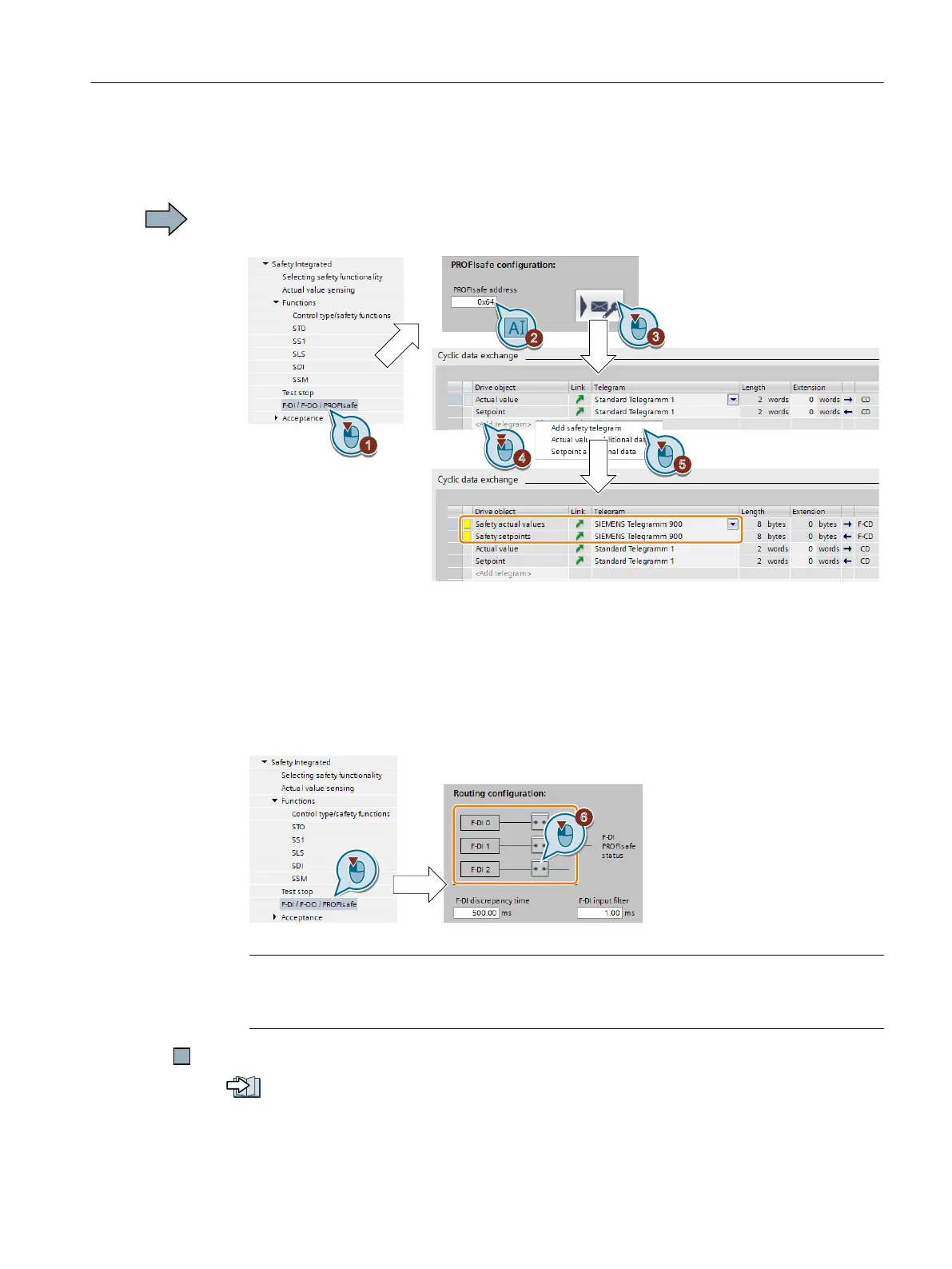

Proceed as follows to configure PROFIsafe telegram 900:
1. Select "F-DI / F-DO / PROFIsafe".





2. Press the "Telegram configuration" button.
Startdrive opens the "Properties" of the cyclic data exchange.
3. Select "Add telegram".
4. Insert a "Safety telegram"
5. Set telegram 900.
6. Set which F-DI status of the inverter is transferred via PROFIsafe status word 5 .

Note
You can transfer the status of a fail-safe digital input via PROFIsafe and simultaneously
use the same input to control a safety function.
You have configured PROFIsafe telegram 900.
Control word 5 and status word 5 (Page 54).


Commissioning
5.10 Configuring safety functions and PROFIsafe with Startdrive
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 123

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
