Siemens SINAMICS G120C Function Manual

6.3.3 Response to a discrepancy when STO is active
The inverter responds with the active safety function STO to a discrepancy at the fail-safe
digital input.
The inverter response depends on the wiring and the setting of the inverter:
● You are using the basic functions according to SIL 2 → case 1.
● You are using the extended functions → case 2.
● You are using the "STO via Power Module terminals" function → Case 3.
Case 1: Response of the drive for STO of the basic functions
You have selected one of the following settings:
● Basic Functions via onboard terminals
● Basic Functions via PROFIsafe and onboard terminals
● Extended Functions via PROFIsafe and Basic Functions via onboard terminals
6SHHG
<HOORZRQ<HOORZRQ
<HOORZIODVKHV
TXLFNO\
*UHHQRQ*UHHQRQ5HGIODVKHVTXLFNO\
W
W
672DFWLYH
,QWHUQDOHYHQW
'LVFUHSDQF\HJ
FDEOHEUHDN
7ROHUDQFHWLPH
GLVFUHSDQF\
<HOOR
Z
VORZ
)DLOVDIHLQSXWWR
VHOHFW672
)DLOVDIH
DFNQRZOHGJPHQW
6WDQGDUGDFNQRZOHGJH
212))
W
/('5'<
/('6$)(

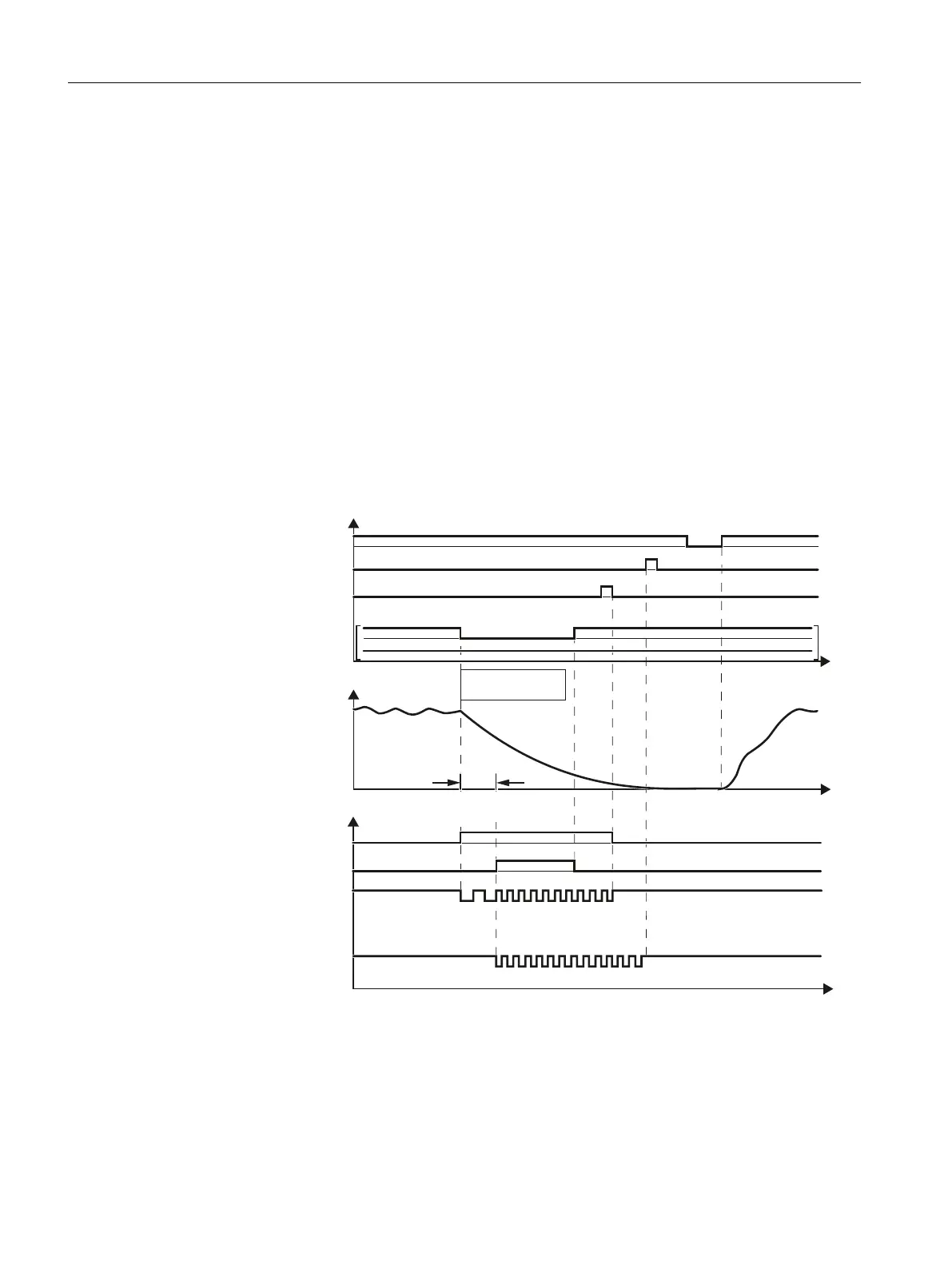

Figure 6-10 Inverter response for discrepancy of the input signal for STO (example: Cable break in the
channel of processor P1)
Operation
6.3 Safe Torque Off (STO)
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
226 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
