Siemens SINAMICS G120C Function Manual

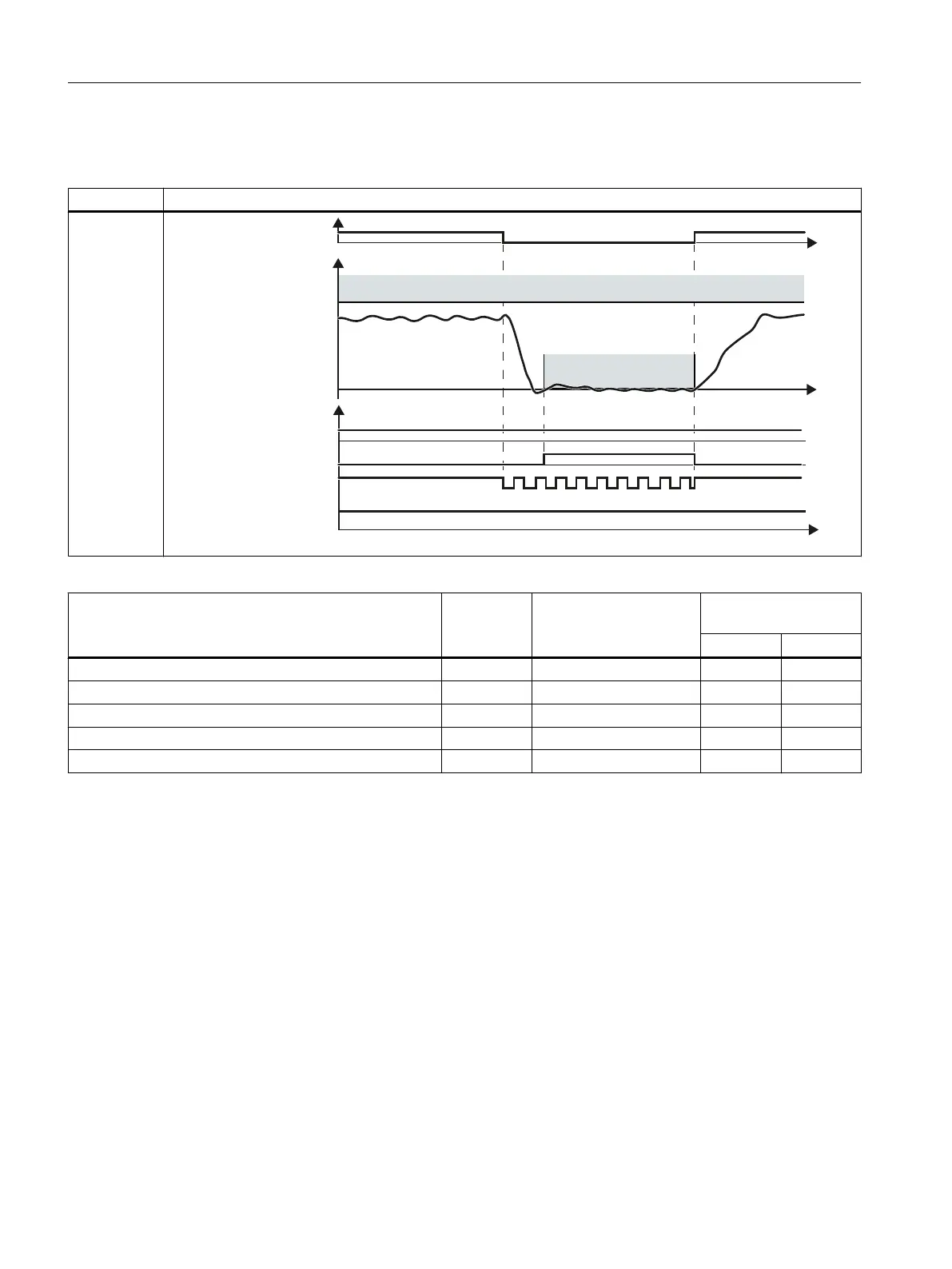

6.12.11 Selecting SDI when SSM is active
Select SDI
SSM is ac‐
tive
6SHHG
*UHHQRQ
<HOORZIODVKHVVORZO\<HOORZRQ<HOORZRQ
6SHHGEHORZWKH
OLPLWYDOXH
6',DFWLYH
'HVHOHFW6',
660
6',
W
W
W
/('5'<
/('6$)(
Inverter signals Parameter Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
SSM feedback signal active (speed below limit value) r9722.15 ✓ --- ✓
SDI+ active r9722.12 ✓ --- ✓
SDI+ deselect r9720.12 ✓ ✓ ---
SDI- active r9722.13 ✓ --- ✓
Deselect SDI- r9720.13 ✓ ✓ ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
316 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
