Siemens SINAMICS G120C Function Manual

The two signals of the fail-safe digital output each have the same state:
● High signal or NO contact closed: The fail-safe digital output is active.
● Low signal or NO contact open: The fail-safe digital output is not active.
4.5.2 Connecting the fail-safe digital output for a SINAMICS G120
Connecting a relay


'212
',
',&20
'2&20


'212
'2&20


9RXW
8
H[W
0
H[W
*1'

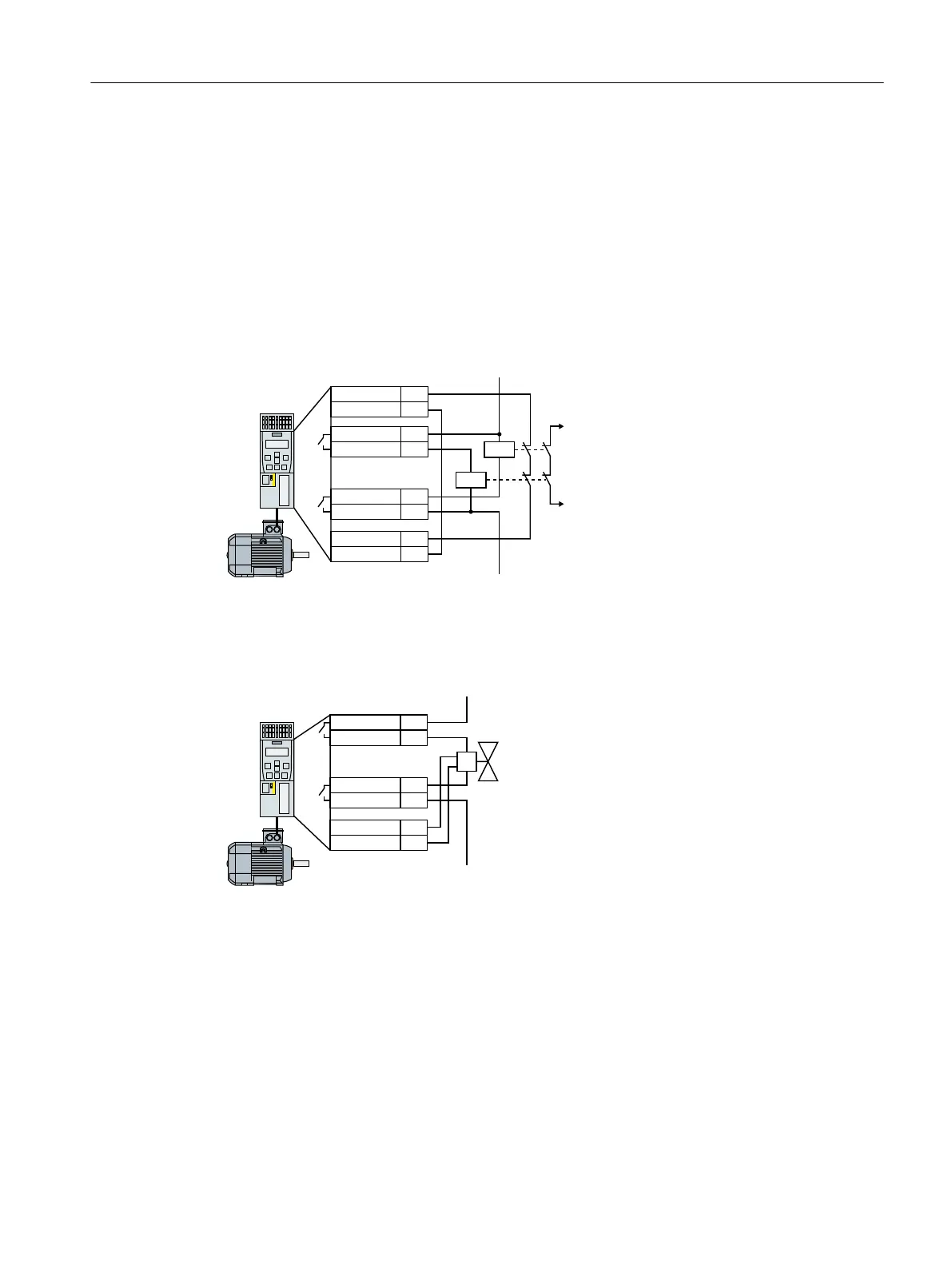

Figure 4-45 Connecting a relay at the F-DO
Connecting an actuator with feedback signal


'212
',
',&20
'2&20


'212
'2&20
8
H[W
0
H[W
Figure 4-46 Connecting an F-DO to an actuator
Installing
4.5 Evaluating via a fail-safe digital output
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 95

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
