Siemens SINAMICS G120C Function Manual

5.11.5 Setting the delay time for SS1
Precondition
You are online with STARTER or Startdrive.
Procedure
Set a delay time > OFF3 ramp down time.

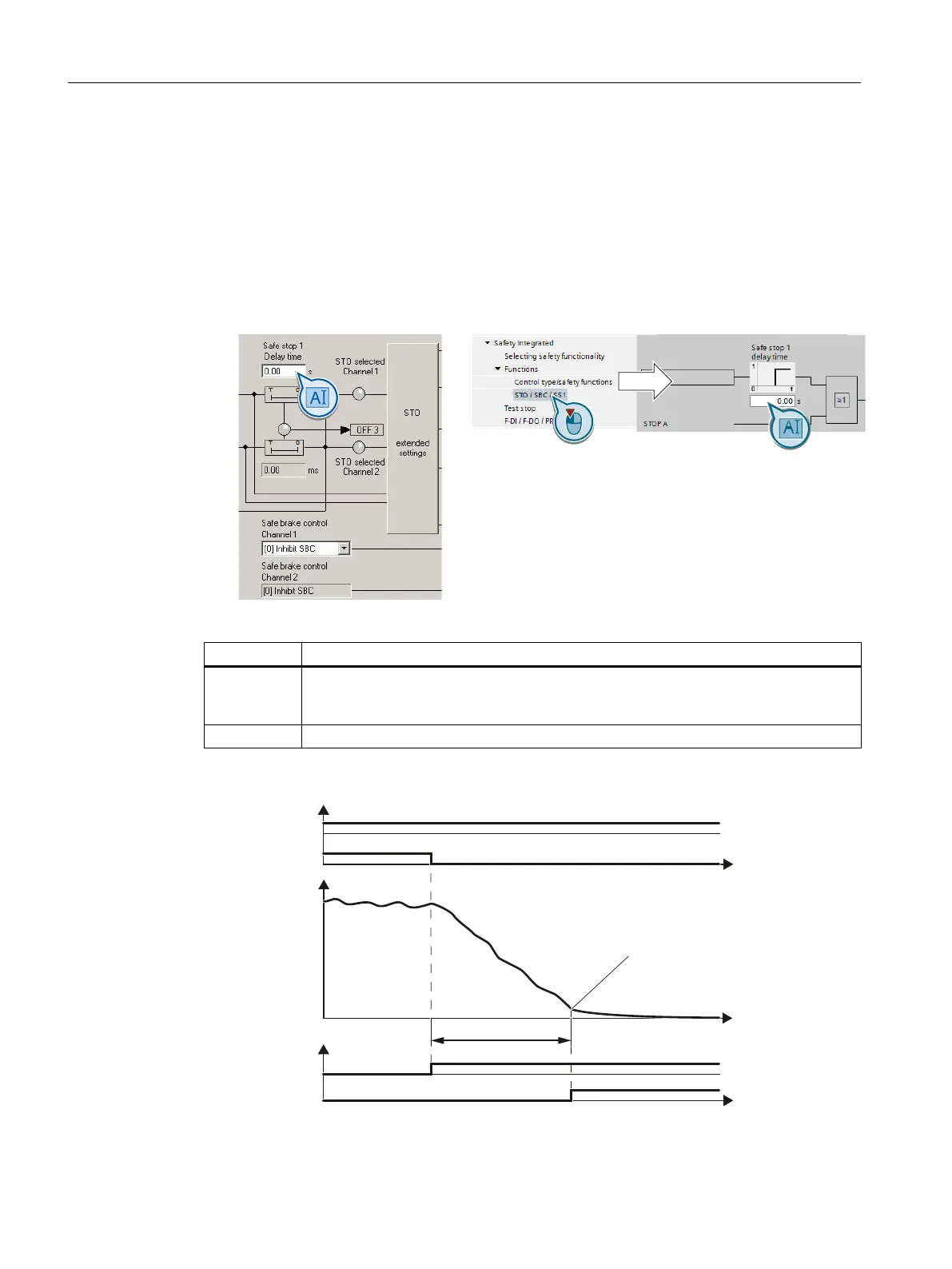

Set SS1 using STARTER: Set SS1 using Startdrive:
Parameter Description
p9652 Safe Stop 1 delay time
Sets the delay time of the pulse suppression for the "Safe Stop 1" (SS1) function to
brake with the OFF3 ramp-down time.
p1135 OFF3 ramp-down time
Description: the SS1 function without monitoring the speed
7KHPRWRUFRDVWV
WRDVWDQGVWLOO
6SHHG
212))
'HVHOHFW66
66DFWLYH
672DFWLYH
'HOD\WLPH
W
W
W
672
Figure 5-8 SS1 without monitoring the speed
Commissioning
5.11 Setting basic functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
136 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
