Siemens SINAMICS G120C Function Manual

5.9 Configuring safety functions and PROFIsafe using STARTER
Procedure with STARTER

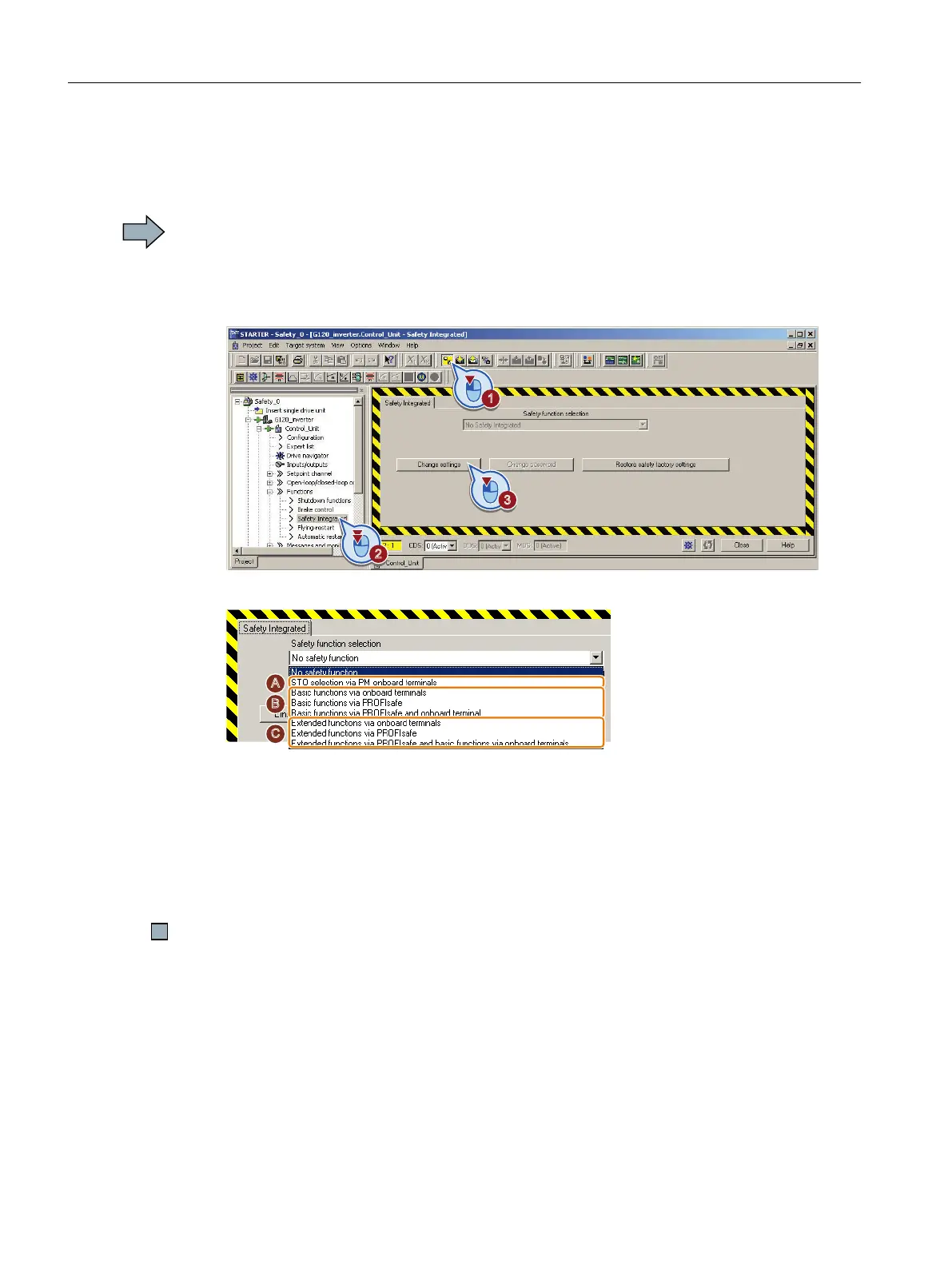

To configure the safety functions, proceed as follows:
1. Go online.
2. Select the "Safety Integrated" function
3. Select "Change settings".



4. Define the configuration of the safety functions:
&
%
$
– (A) This option is only available with a PM240‑2 or PM240P‑2 FSD ... FSF Power Module.
Select this option if you only wish to use the "STO via Power Module terminals" function.
– (B) If you only wish to use the basic functions of the inverter, select the interface that is
appropriate for your particular application.
– (C) If you wish to use the extended safety functions, then select the interface that is
appropriate for your particular application.
You have configured the safety functions.
If you selected the onboard terminals as interface, you can now start to commission the safety
functions.
For control via PROFIsafe, you must configure the PROFIsafe interface before you start to
commission the safety functions.


Commissioning
5.9 Configuring safety functions and PROFIsafe using STARTER
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
114 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
