Siemens SINAMICS G120C Function Manual

5.10.2 Configuring PROFIsafe
Precondition
You are offline with Startdrive.
Procedure

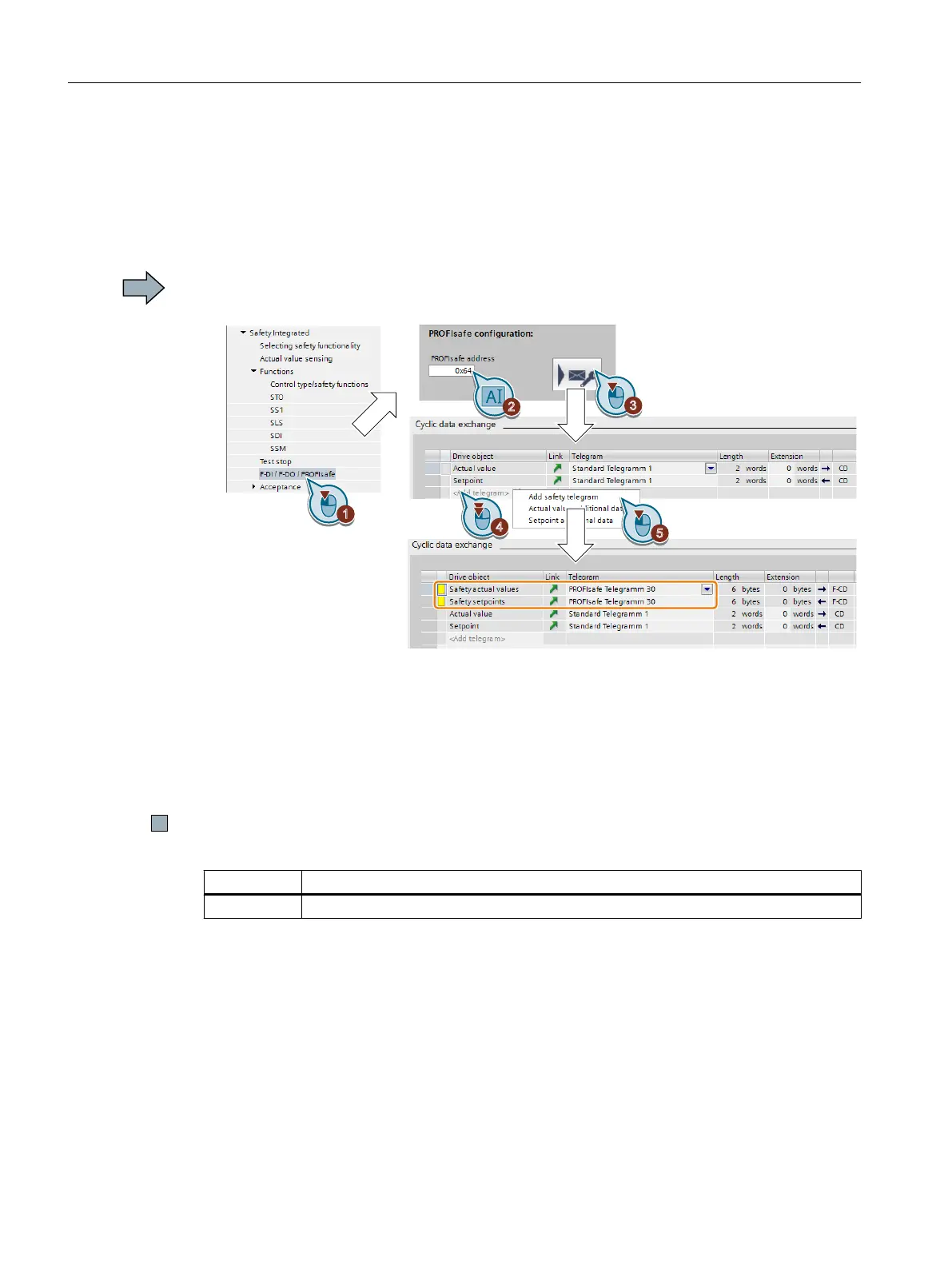

Proceed as follows to set the PROFIsafe address and telegram 30:
1. Select "F-DI / F-DO / PROFIsafe".





2. Enter the same address as hexadecimal value that you defined in the hardware
configuration for the higher-level control system.
3. Press the "Telegram configuration" button.
Startdrive opens "Properties" of the cyclic data transfer.
4. Select "Add telegram".
5. Insert a "Safety telegram".
You have established communication between the inverter and higher-level control (F-CPU)
via PROFIsafe telegram 30.
Parameter Description
p9610 PROFIsafe address (factory setting: 0000 hex)


Commissioning
5.10 Configuring safety functions and PROFIsafe with Startdrive
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
122 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
