4.4.2.3 Controlling several inverters in parallel using electromechanical sensors
You may activate the safety functions of several inverters simultaneously with one or several
series-connected safety sensors.
If there is a risk of cross-circuits or short-circuits, the cables between the sensor and the inverter
must be protected, for example, by routing them in a steel tube.
The inverter supplies the power supply voltage
)',
)',
',

9RXW
',
',
',
',&20
',&20
*1'
6,1$0,&6*
&8(
)',
)',
;
',
;
',
;
',
;
',
;
0
;
/
6,1$0,&6*'
)',
;',
;',
;0
;/
6,1$0,&6*0

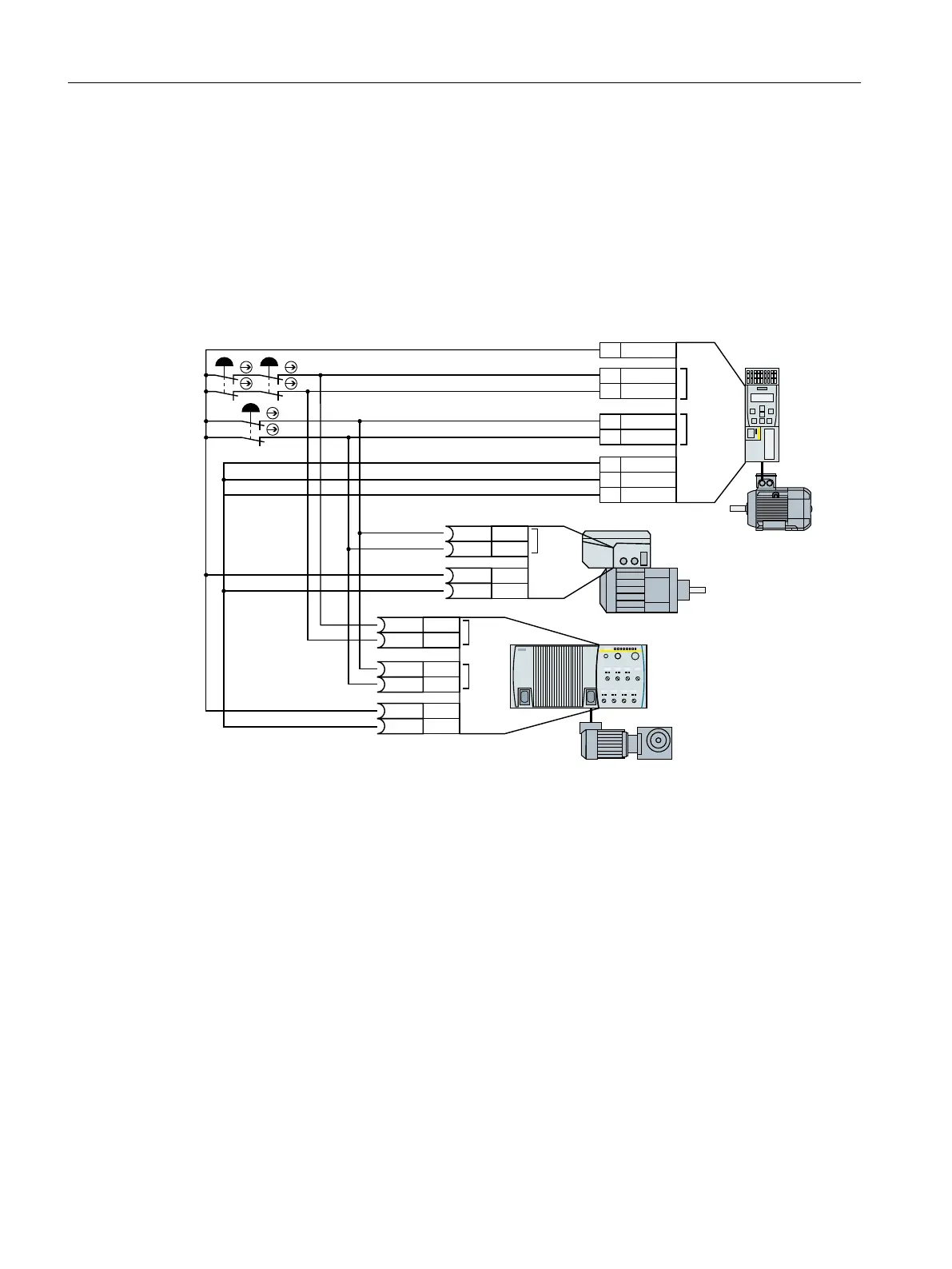

Figure 4-12 Example for controlling several inverters in parallel with the power supply from the inverter
Installing
4.4 Controlling via a fail-safe digital input
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
68 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
