4.2 Sequence when installing an inverter with safety functions
The following overview shows the procedure for installing integrated safety functions in an
inverter. For information on some of the steps you will need to consult descriptions in other
manuals.
Procedure

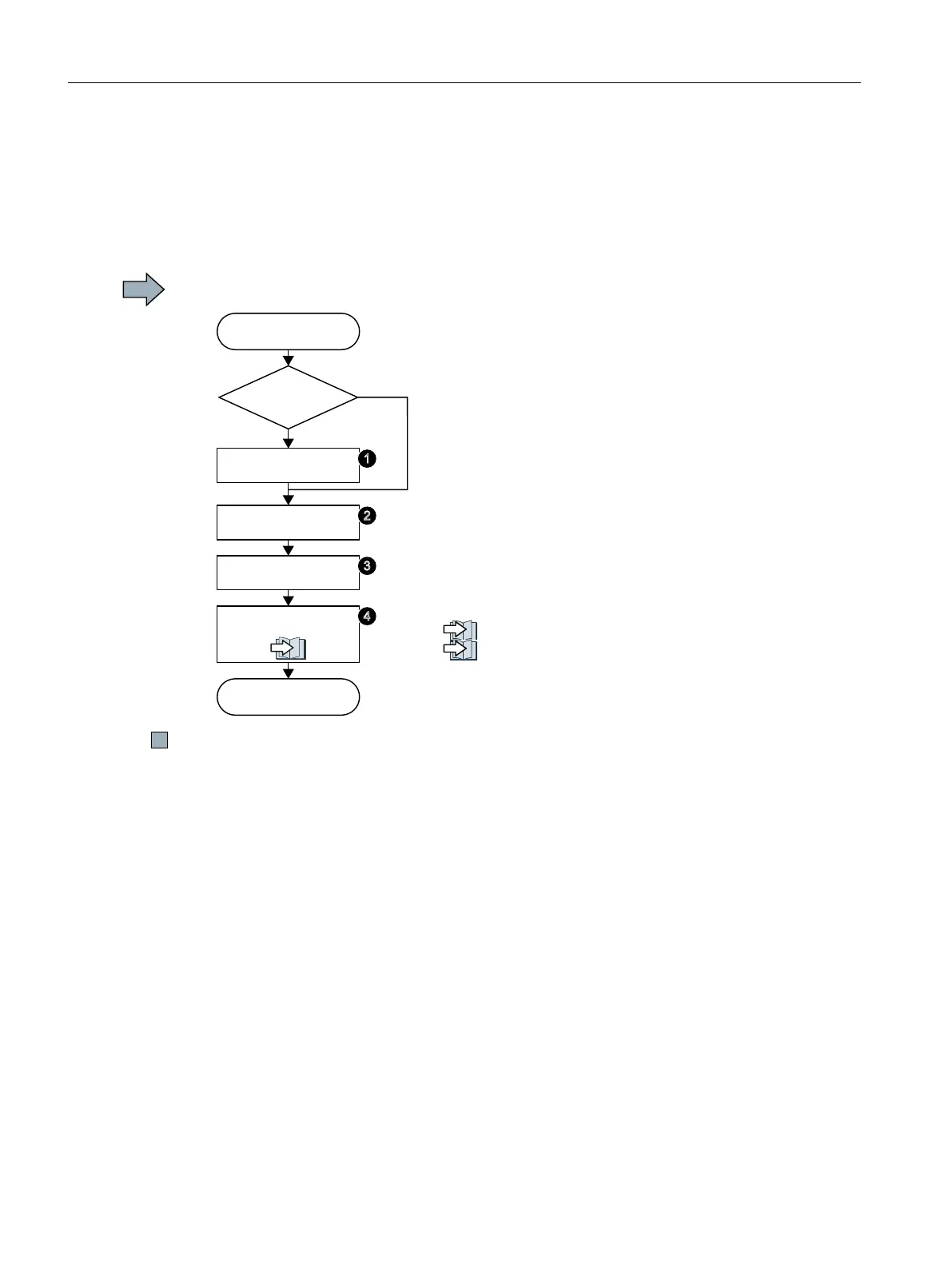

To install the inverter, proceed as follows:




&RQILJXUDWLRQDQG
LQVWDOODWLRQ
(QG
&UHDWLQJD3/&
SURJUDP
:LULQJIDLOVDIH,2
:LULQJVWDQGDUG,2
,QVWDOOLQJDFRQYHUWHU
,VD3/&
EHLQJXVHG"
1R
<HV
1. If you are using a higher-level control system (PLC), then
create the control program first.
2. Install the inverter.
⇒ inverter operating instructions
3. Connect the inverter to the line supply, and wire the
standard inputs and outputs of the inverter.
⇒ inverter operating instructions
4. How do you wire the fail-safe digital inputs and outputs?
Controlling via a fail-safe digital input (Page 58)
Evaluating via a fail-safe digital output (Page 94)
You have now installed the inverter.


Installing
4.2 Sequence when installing an inverter with safety functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
46 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
