4.6.2 Connecting a Brake Relay at a PM250 Power Module
Connecting the Brake Relay to the inverter
The connector for the brake relay is located at the front of the Power Module for the FSC frame
size. These Power Modules have a cable entry for the connecting cable to the Brake Relay.
The connector for the Brake Relay is located at the bottom of the Power Module for the FSD
… FSF frame sizes.
3RZHU0RGXOH)6&3RZHU0RGXOH)6')6)

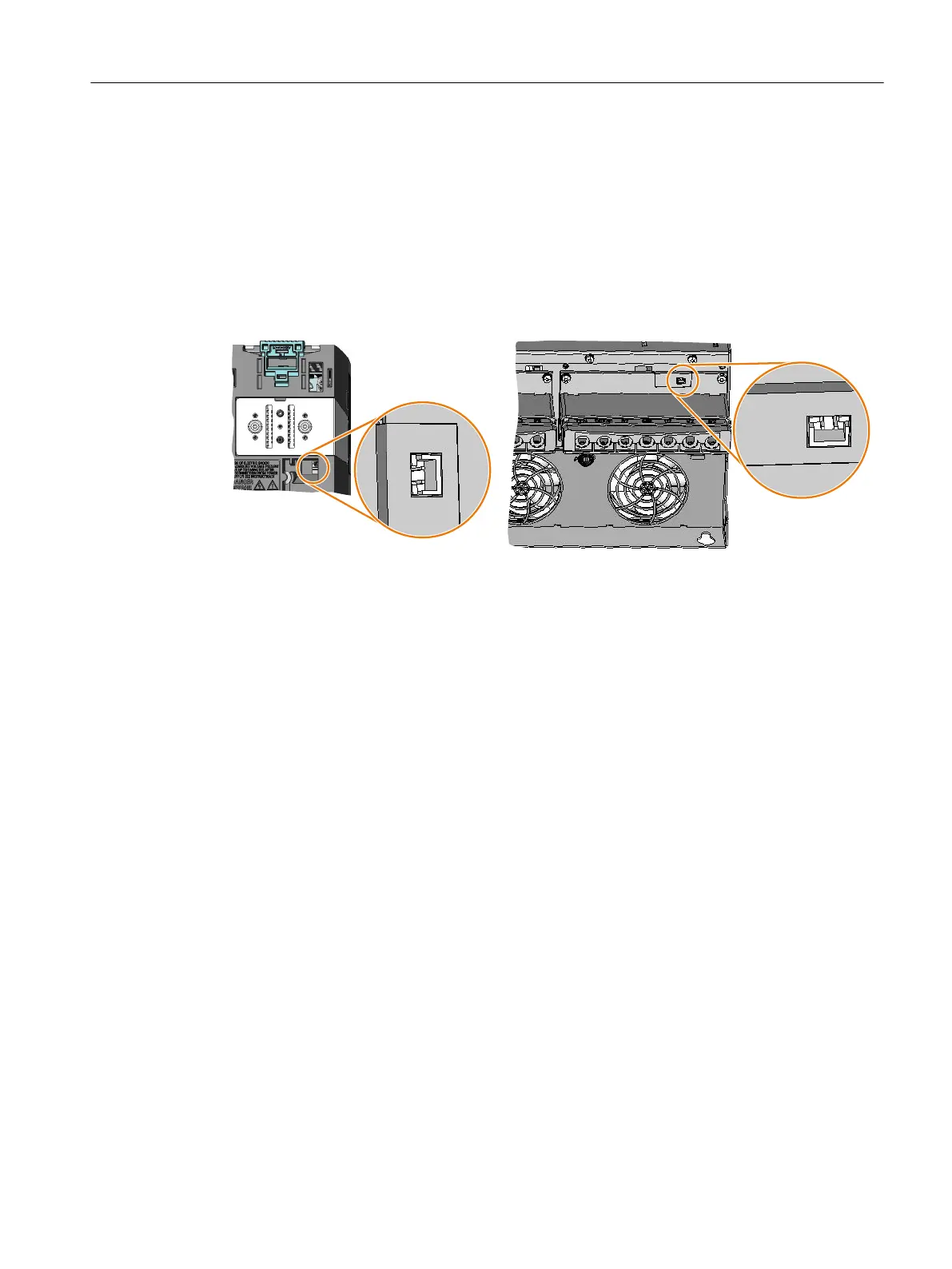

Figure 4-52 Connector position for the Brake Relay
Installing
4.6 Connecting a motor holding brake via Safe Brake Relay
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 99

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
