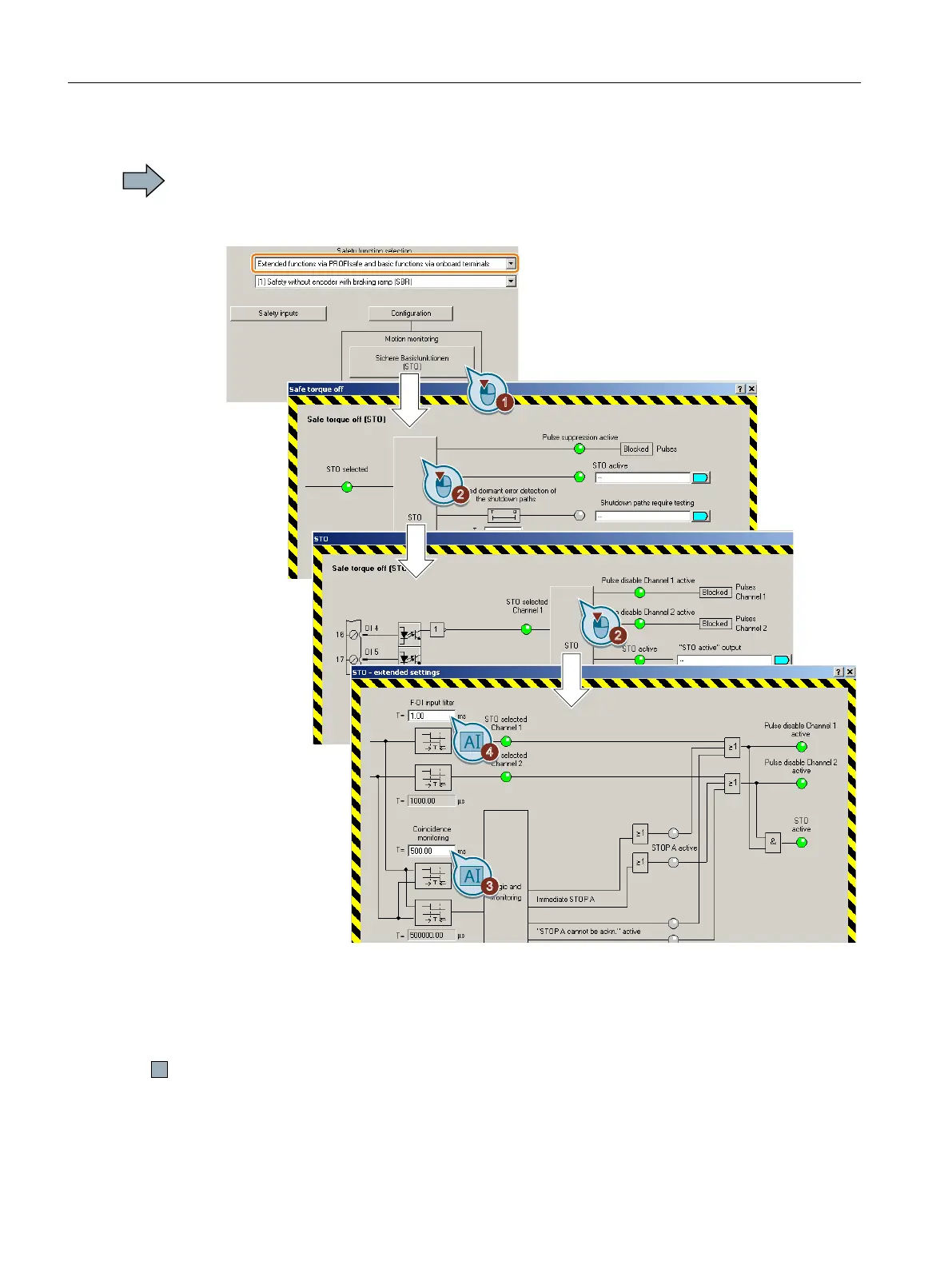

Procedure
To set the filters for the fail-safe digital inputs, proceed as follows:
1. Press the "Safety basic functions" button.
2. Press the “STO” button in the following two screen forms.





3. The discrepancy time (simultaneity monitoring) tolerates signal changes at the fail-safe
digital input that do not occur simultaneously.
4. The input filter suppresses brief signal changes.
5. Close the screen forms.
You have set the filter for the fail-safe digital inputs.


Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
158 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
