Siemens SINAMICS G120C Function Manual

6SHHG
$QJOH
6',DFWLYH
6',DFWLYH
6',GHVHOHFW
212))
'HVHOHFW6',
'HOD\WLPH'HOD\WLPH
7ROHUDQFH
6SHHG
6HWSRLQWVSHHG
OLPLWLQJ
W
W
W
6',
6',
6',

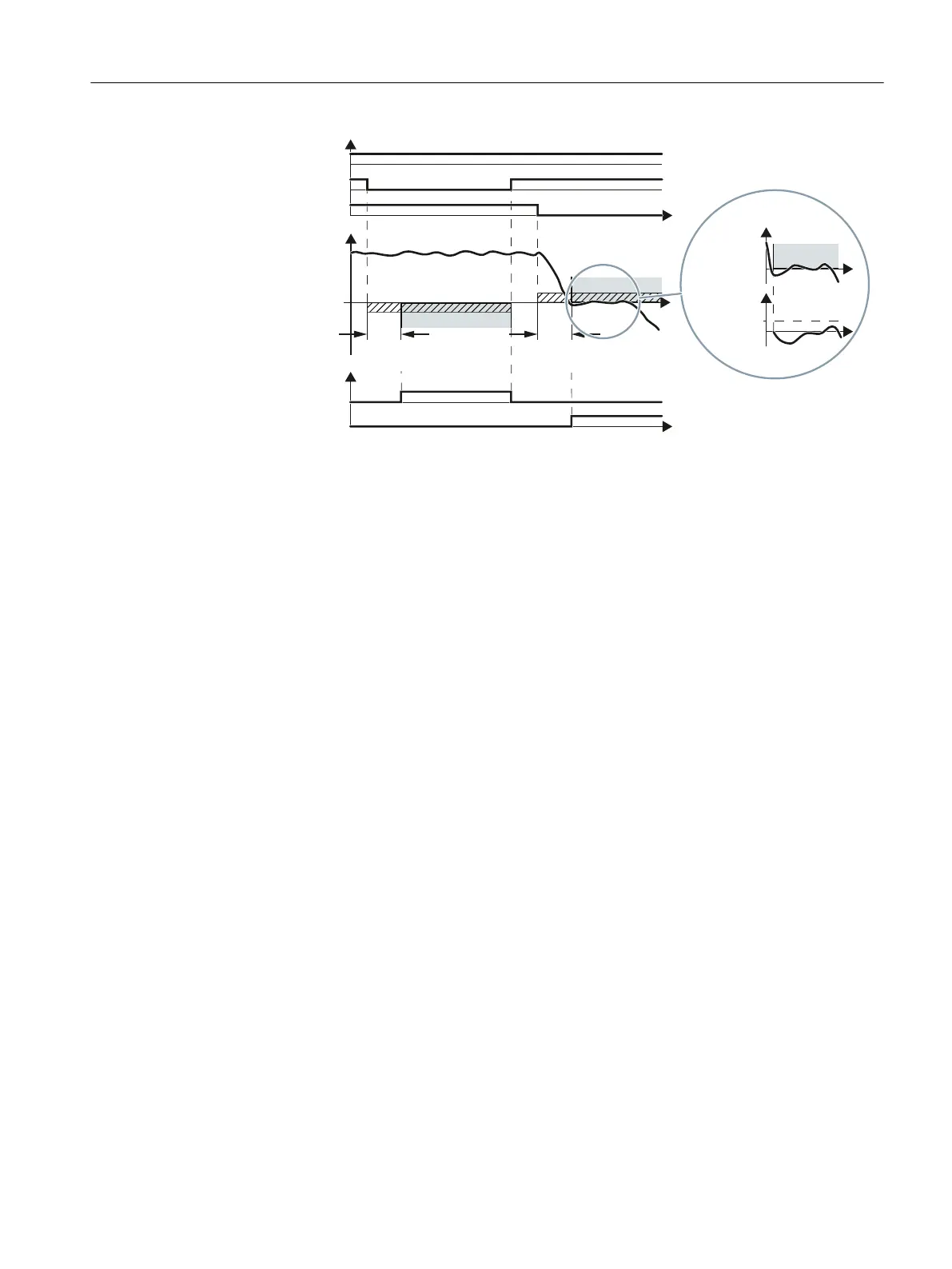

Figure 5-33 Delay time and tolerance
Delay time
The inverter monitors the direction of rotation of the motor after the delay time has expired.
When SDI is selected, the delay time must be longer than the time that the motor requires to
brake the maximum load from maximum speed down to standstill. The inverter brakes the
motor with the OFF3 ramp-down time.
Tolerance
The inverter permits brief motion in the monitored direction, for example for brief speed
overshoots after braking down to standstill. To do this, the inverter converts the motor speed
into an angle. With the tolerance, you limit the maximum permissible angle in the monitored
direction.
Feedback signal SDI when the motor is switched off
You can select as to whether the SDI function should remain active when the motor is switched
off.
● With the motor switched off, the inverter freezes the "SDI active" signal.
● When the motor is switched off, STO is active.
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 195

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
