Siemens SINAMICS G120C Function Manual

Selecting SS1 when the motor is rotating
Function
1. The higher-level control selects the SS1 function
2. The inverter brakes the motor with the OFF3 ramp-down time.
3. The inverter closes the motor holding brake once the motor is at a standstill.
4. If the standstill monitoring is undershot, or once the delay time has expired, the inverter
activates the STO function and controls the brake with the SBC function.
000
6SHHG
212))
'HVHOHFW66
2SHQPRWRUKROGLQJEUDNH
0RWRUKROGLQJEUDNHLVRSHQ
672LVDFWLYH
6%&LVUHTXHVWHG
W
W
W
W

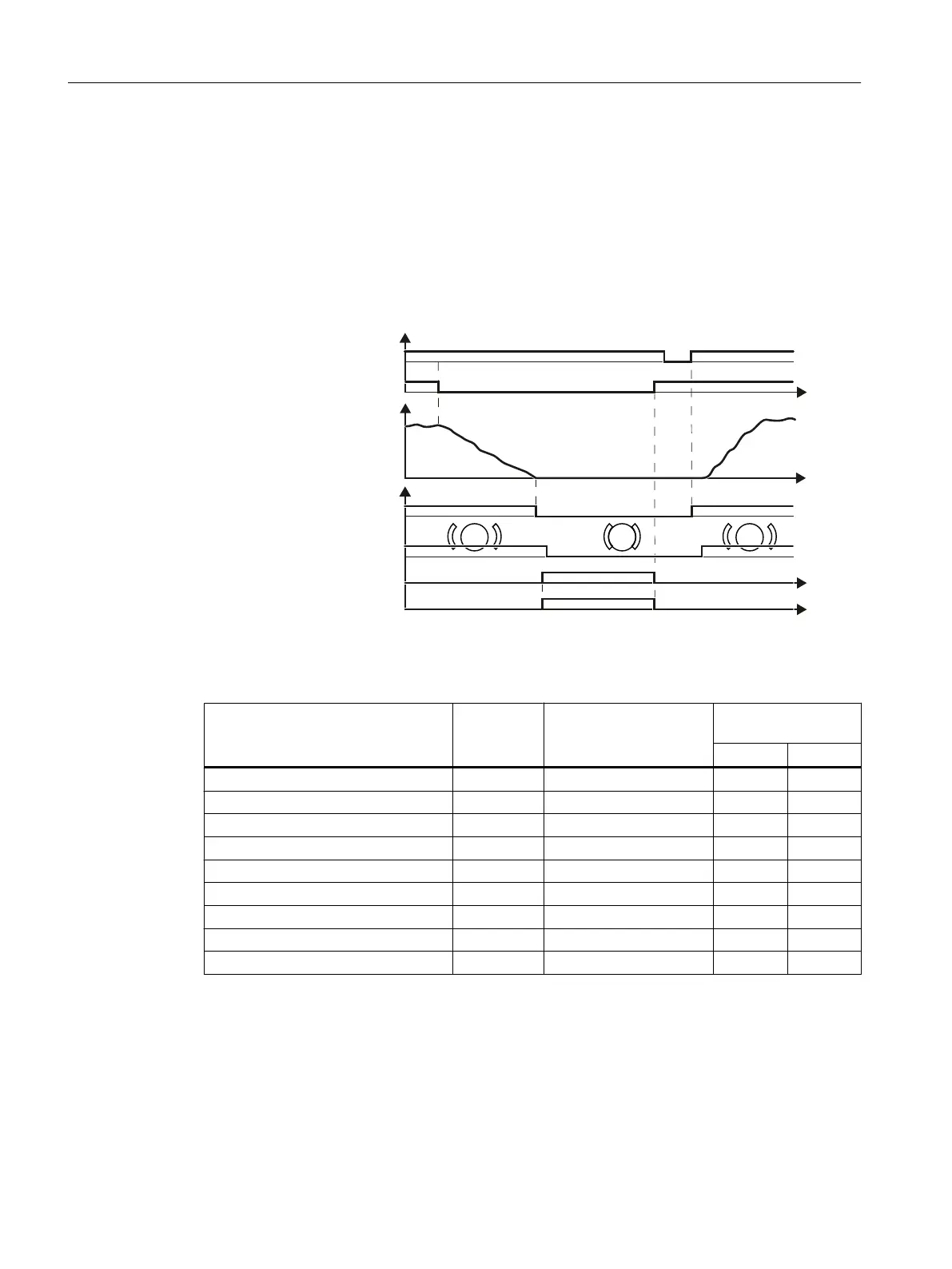

Figure 6-14 When selecting SS1, the motor holding brake closes at standstill
Before you can switch on the motor again, you must deselect the SS1 function.
Inverter signal Parameter Included in the PROFI‐
safe telegram
Can be interconnec‐
ted with
F-DI F-DO
STO active (basic functions) r9773.1 ✓ --- ✓
STO active (extended functions) r9722.0 ✓ --- ✓
Deselect STO (extended functions) r9720.0 ✓ ✓ ---
SBC requested (basic functions) r9773.4 --- --- ---
Deselect SS1 (basic functions) r9773.5 ✓ ✓ ---
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
ON/OFF1 r0054.0 --- --- ---
Release motor holding brake r0899.12 --- --- ---
Close motor holding brake r0899.13 --- --- ---
Operation
6.4 Safe Brake Control (SBC)
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
234 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
