2nd case: Response of the drive for SS1 of the extended functions
You have selected the extended functions via onboard terminals.
*UHHQRQ5HGIODVKHVTXLFNO\*UHHQRQ
<HOORZRQ<HOORZIODVKHVVORZO\<HOORZRQ
6SHHG
6KXWGRZQVSHHG
66DFWLYH
672DFWLYH
7ROHUDQFHWLPH
'LVFUHSDQF\
'LVFUHSDQF\HJ
FDEOHEUHDN
)DLOVDIHLQSXWWRVHOHFW
66
)DLOVDIH
DFNQRZOHGJPHQW
6WDQGDUGDFNQRZOHGJH
212))
W
W
66
/('5'<
/('6$)(
W

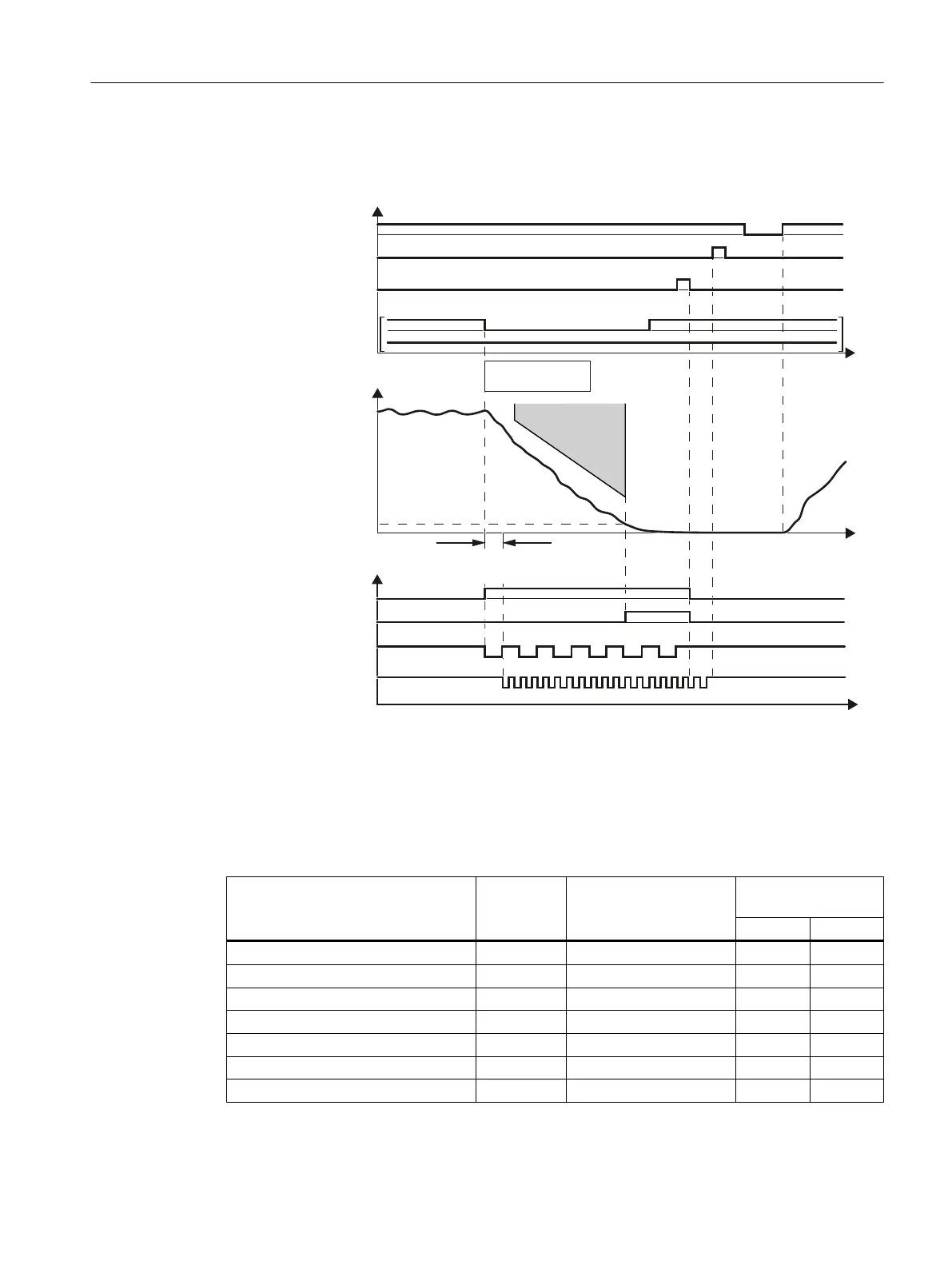

Figure 6-22 Inverter response for discrepancy of the input signal for SS1 (as example: SS1 with braking
ramp monitoring)
The inverter does not set the error bit of the safety functions (= internal event).
After the tolerance time has expired, the inverter signals the discrepancy (message C01770
or C30770) but does not interrupt the braking operation for the motor.
Inverter signal Parameter Included in the PROFI‐
safe telegram
Can be interconnec‐
ted with
F-DI F-DO
STO active (extended functions) r9722.0 ✓ --- ✓
SS1 active (extended functions) r9722.1 ✓ --- ✓
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
"Standard" acknowledgment p2103 --- --- ---
Fail-safe acknowledgment r9720.7 ✓ ✓ ---
ON/OFF1 r0054.0 --- --- ---
Operation
6.5 Safe Stop 1 (SS1)
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 249

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
