Siemens SINAMICS G120C Function Manual

Scenario 2: The absolute value of the load speed is higher than the setpoint speed limit.
Function
1. The inverter brakes the motor.
2. The inverter monitors the speed after the delay time has expired.
3. If you deselect SLS, then the motor accelerates again up to the speed setpoint.
6SHHG
6SHHGPRQLWRULQJ
*UHHQRQ
6/6DFWLYH
6$06%5DFWLYH
<HOORZRQ<HOORZRQ<HOORZIODVKHVVORZO\
%UDNLQJUDPSPRQLWRULQJ
GHOD\WLPH
'HVHOHFW6/6
212))
W
W
W
6/6
/('5'<
/('6$)(
6%5

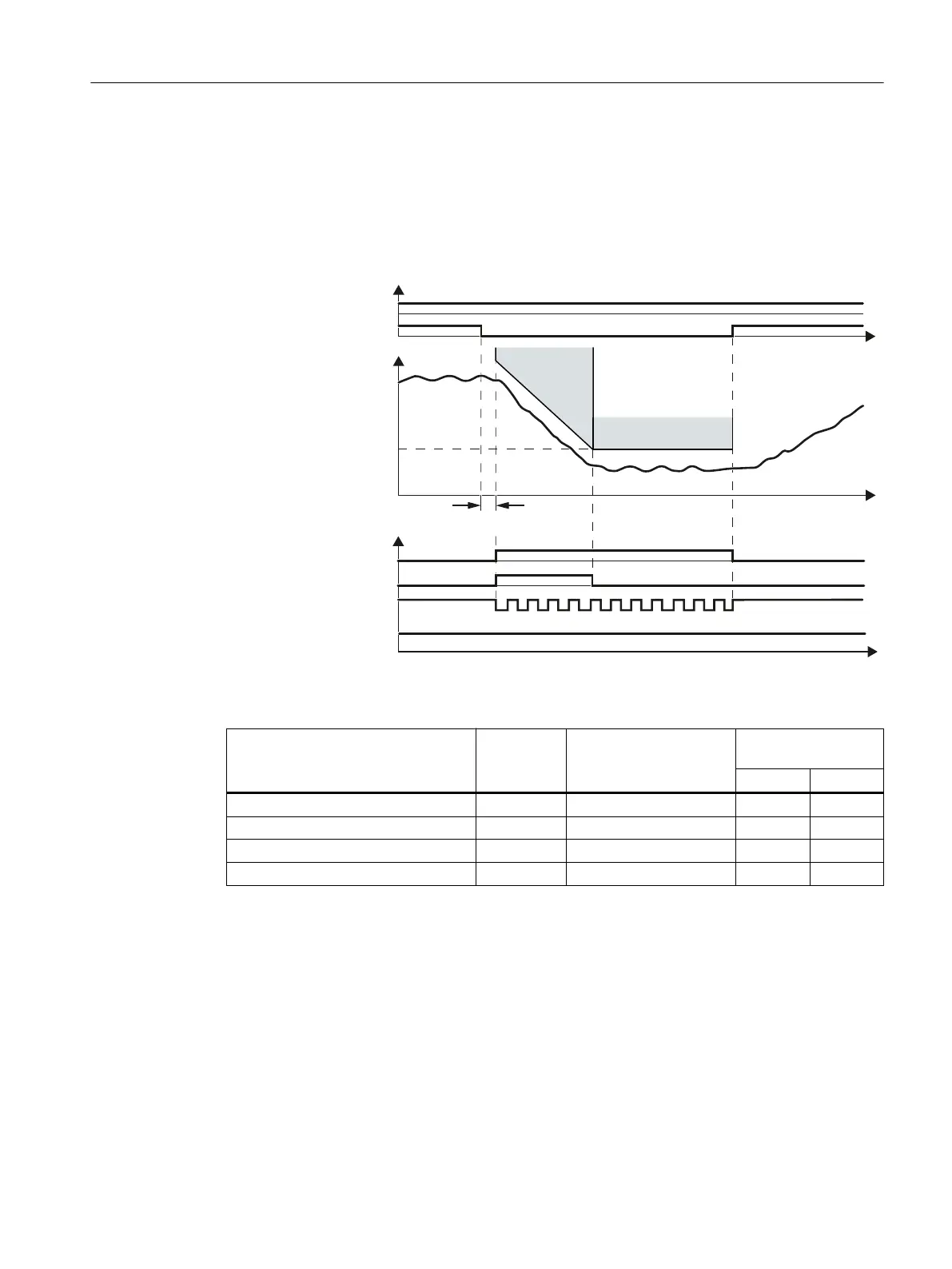

Figure 6-25 Selecting and deselecting the SLS safety function at high speeds
Inverter signal Parameter Included in the PROFI‐
safe telegram
Can be interconnec‐
ted with
F-DI F-DO
SLS active r9722.4 ✓ --- ✓
Deselect SLS r9720.4 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
ON/OFF1 r0054.0 --- --- ---
Operation
6.6 Safely Limited Speed (SLS)
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 257

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
