Siemens SINAMICS G120C Function Manual

When switching off, the speed is higher than the SSM limit value
6SHHG
*UHHQRQ
<HOORZRQ
<HOORZIODVKHVVORZO\<HOORZRQ
672DFWLYH
672DFWLYH
6SHHGEHORZWKH
OLPLWYDOXH
6SHHGEHORZWKH
OLPLWYDOXH
660DFWLYHUHPDLQVDFWLYH
660DFWLYHEHFRPHVLQDFWLYH
W
212))
6WDQGVWLOOPRQLWRULQJ
660
W
W
/('5'<
/('6$)(
/('6$)(

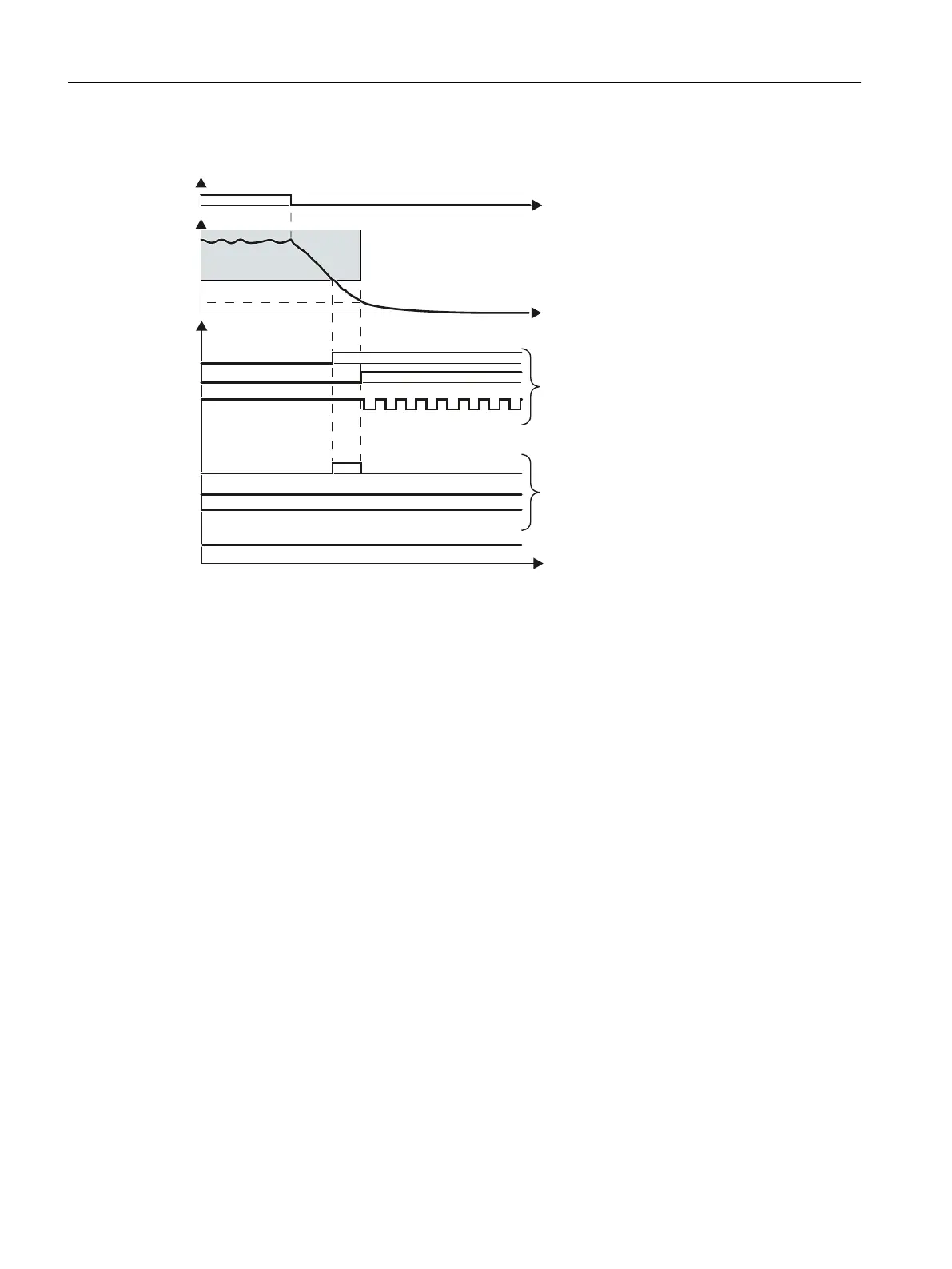

Figure 6-38 OFF1 command when the SSM safety function is active
If you switch off the motor with the SSM function active using the OFF1 or OFF3 command,
e.g. when reaching limit switches, the following happens:
1. The inverter brakes the motor down to standstill and then switches it off.
2. Also while braking, the inverter monitors the motor speed.
If the "SSM active" feedback signal should remain active when the pulses are inhibited, then
the inverter safely switches off the motor torque using the safety function STO.
Operation
6.7 Safe Speed Monitor (SSM)
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
276 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
