Siemens SINAMICS G120C Function Manual

Status
2. Switch on motor
2.1. Enter a positive speed setpoint.
2.2. Select SDI+ so that only positive speeds are permitted.
2.3. The next steps depend on how you have set the SDI function during commission‐
ing:
Diagram 1:
The "SDI active" feedback signal re‐
mains active when the motor is switch‐
ed off.
Diagram 2:
The "SDI active" feedback signal be‐
comes inactive when the motor is switch‐
ed off.
Switch on motor within 5 seconds after
deselecting SDI (ON command).
If you wait longer than 5 seconds for
the ON command, then STO is activa‐
ted. In this case, deselect SDI and
then select it again.
Switch on the motor (ON command).
2.4. Check that the correct motor is rotating in the expected direction.

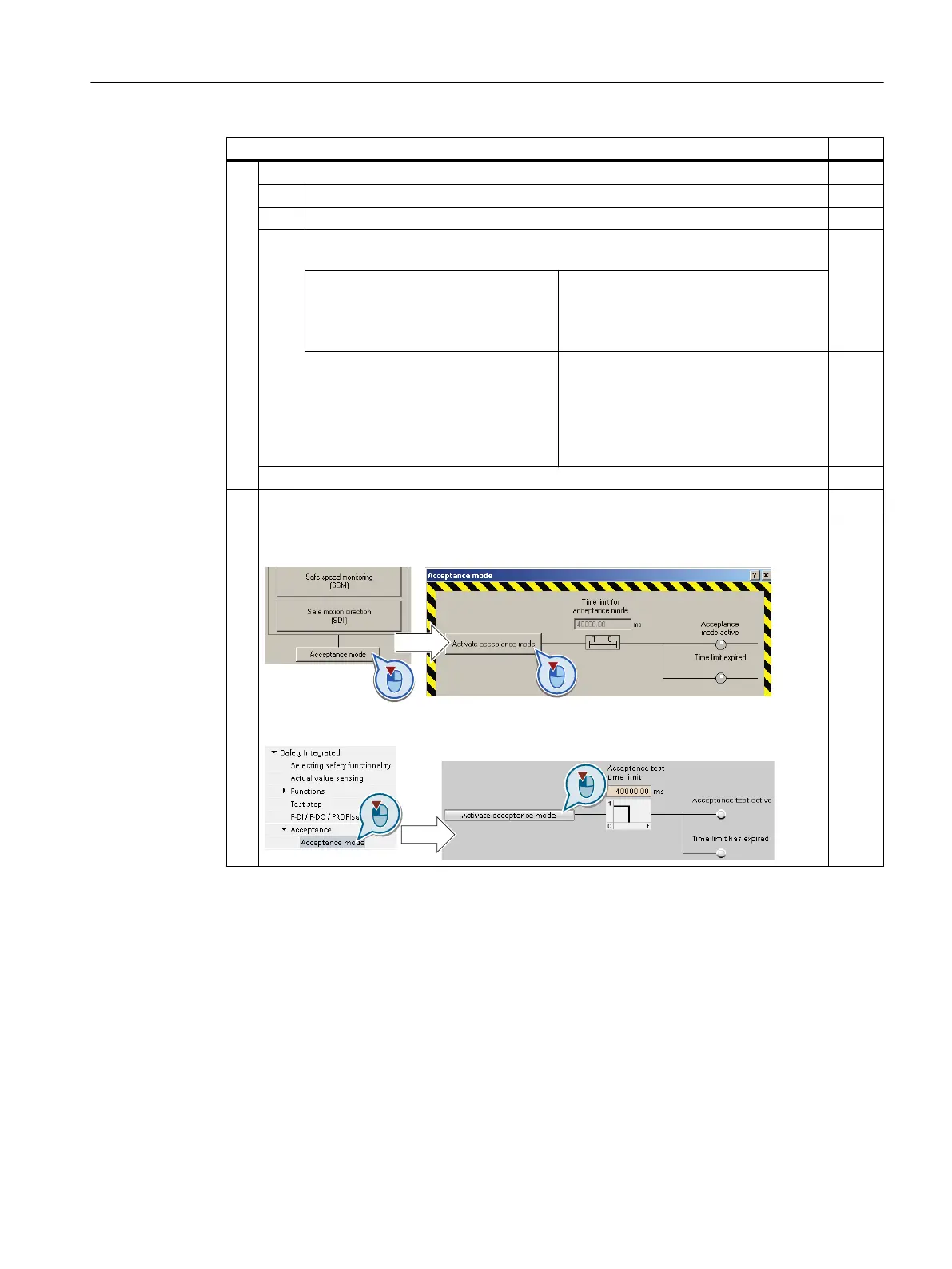

3. Deactivate the setpoint limitation for the acceptance test
Activate the Acceptance mode:
In STARTER:
In Startdrive:
Appendix
A.2 Examples of acceptance tests
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 405

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
