Components in separate control cabinets
:LULQJLQVWHHOFRQGXLW
&RQWUROFDELQHW
&RQWUROFDELQHW
6DIHW\IXQFWLRQ6DIHW\IXQFWLRQ
6WDUW6WDUW
9'&
0
0
)',
)',
',
',
',
',
',&20
',&20
6,1$0,&6*
&8(
6.$%
$
$,1,167 ,1),17


$XWRVWDUW
0RQLWRUHG6WDUW
6.$%
$
$,1,167 ,1),17


$XWRVWDUW
0RQLWRUHG6WDUW

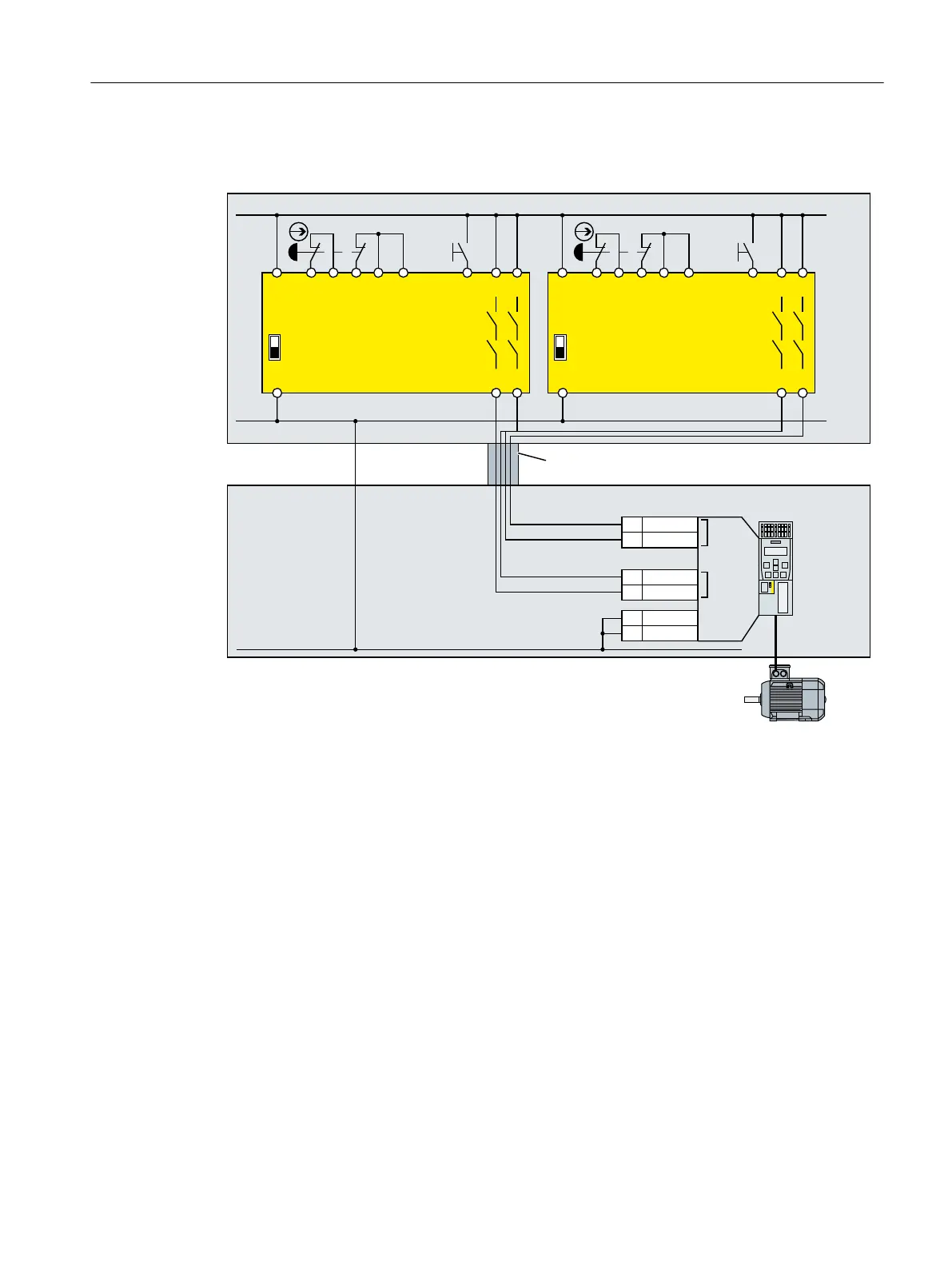

Figure 4-15 Wiring inverter and safety relay in separate electrical cabinets using SINAMICS G120 with
CU240E-2 as example
For configurations in separate control cabinets, the cables between the safety relay and the
fail-safe digital inputs of the inverter must be protected against cross circuits and short-circuits.
Installing
4.4 Controlling via a fail-safe digital input
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 71

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
