SINAMICS G120D requires a PP-switching fail-safe output.
1)
The wiring of the ET 200SP shows as example, the supply of a new potential group when using a
bright base unit.
You may operate the inverter and the ET 200SP with different 24‑V supplies - as well as with the
same 24‑V supply.

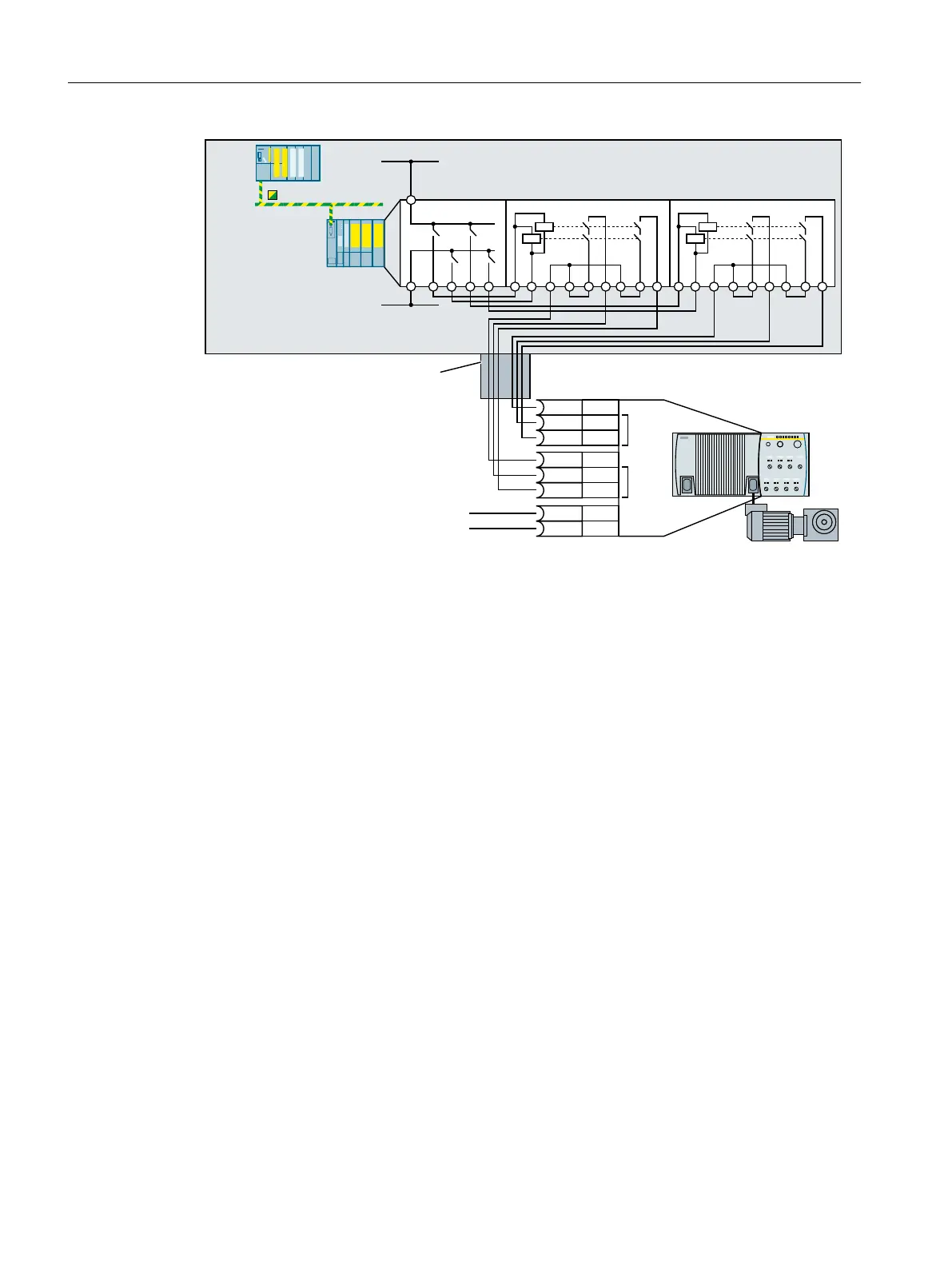

Figure 4-29 Connecting PP-switching ET 200SP modules using a SINAMICS G120D as example
Installing
4.4 Controlling via a fail-safe digital input
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
82 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
