SINUMERIK 802D sl Operating and Service Training Manual Page 10
C83
C83
Section 3

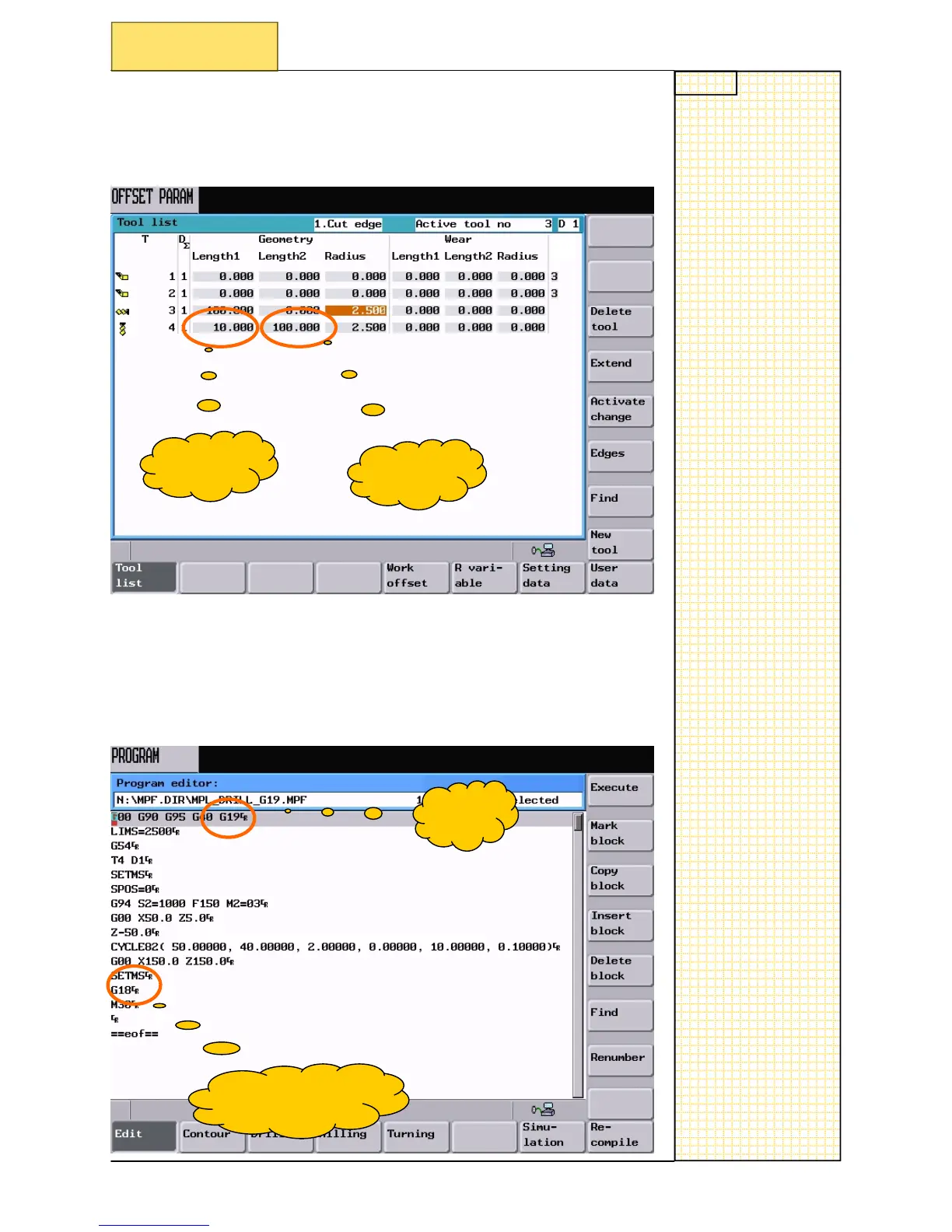

Tool types for milling/drilling
When you have selected this tool type, you must remember to use G19 as
your working plane.
When you set the tool o
ffset
you must also rem
ember to set the correct
Axis to Length 1 and Length 2 in t
he
Geometry colum
n.
This is your
X axis offset
This is your
Z axis offset
Shown below is a typical program for drilling on the peripheral surface of
your turned component using G19
Default plane acti-
vated at end of cycle
Selected
plane
