Siemens SINUMERIK 802D - Manual mode; 5.1 Manual mode

Notes
SINUMERIK 802D sl Operating and Service Training Manual Page 13
C99
C99
PRESS

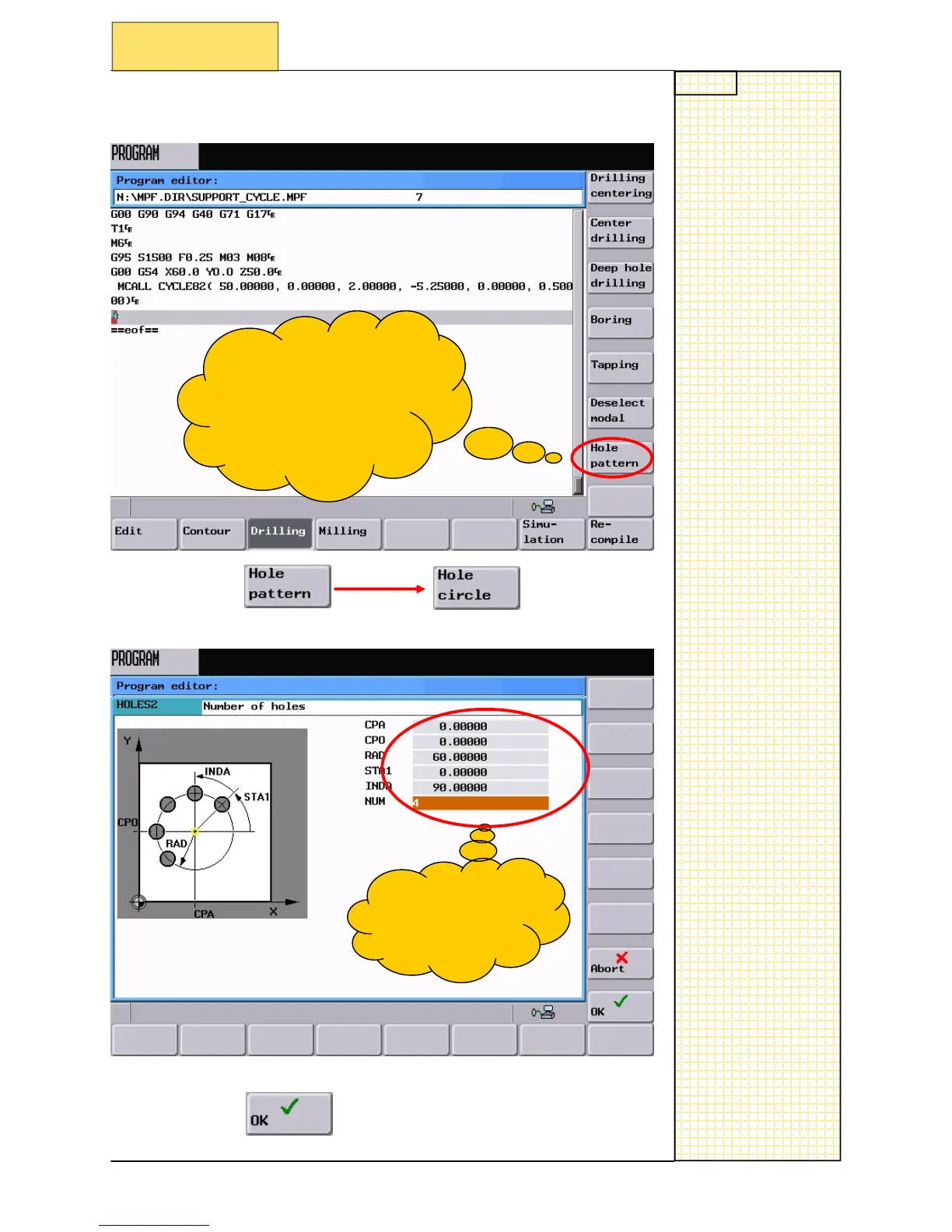

You now need to give the
coordinates for the posi-
tions of the holes. You
can use for this exercise
hole pattern and circle
pattern
Enter data taken
from your drawing
PRESS
We then add the positions of the 4 holes.
Section 4
Drilling cycles
