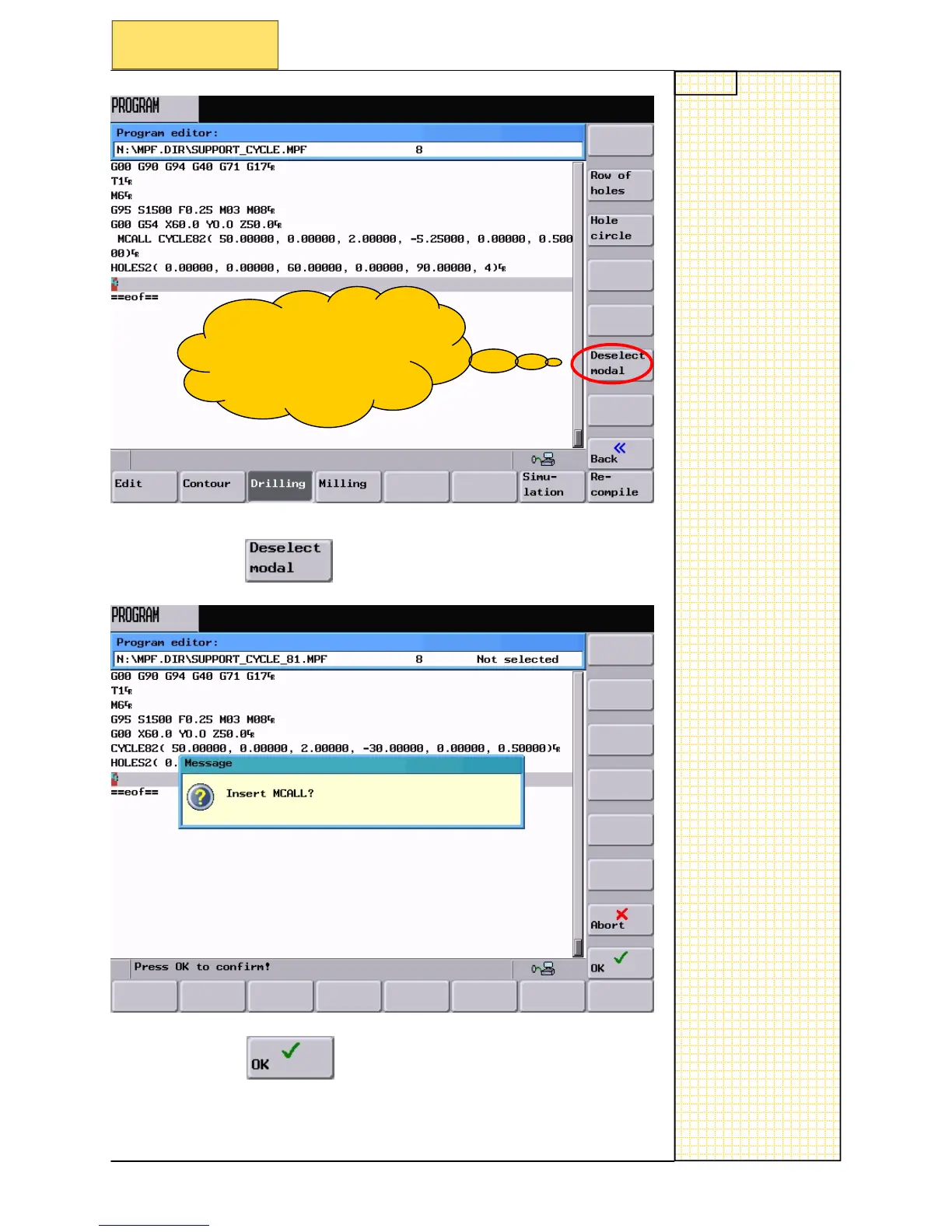

SINUMERIK 802D sl Operating and Service Training Manual Page 14

C99

Because the drilling cycle

was a modal call, you

have to deactivate the

call

PRESS

Section 4

Drilling cycles
