Siemens SINUMERIK 810D Operation & Programming Manual

12
Examples 08.02
12.3 Exam
p
le 3: External machinin
g
with thread undercuts and
g
rooves
12
© Siemens AG, 2002. All rights reserved
12-198 SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition

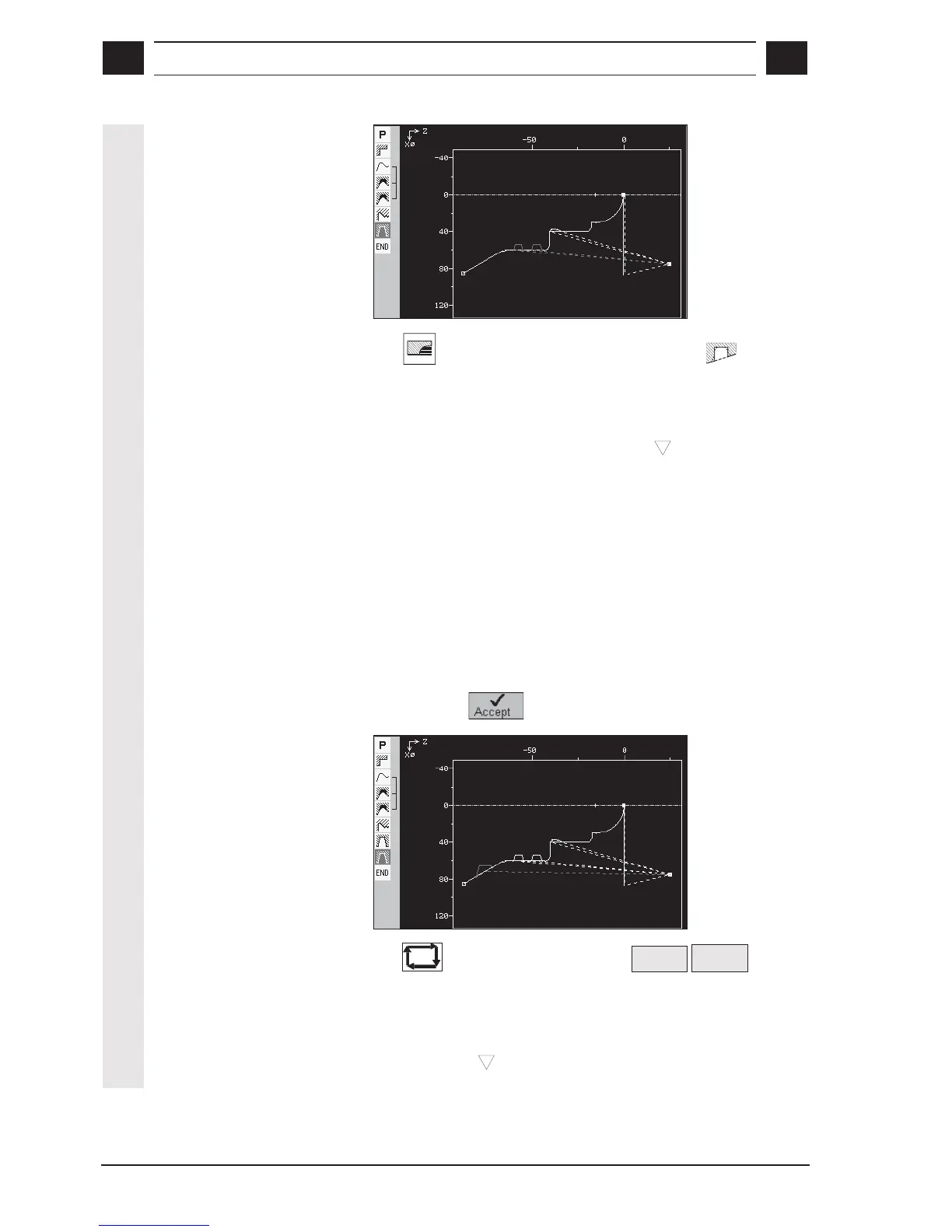

Result:
8. Groove with
tapers/radii in a taper
(roughing)
• Call
STOCK REMOVAL mode and press the soft key
• Set parameters:
T3 F: 0.12 mm/rev S: 180 m/min
Set position and reference point
Reference point X0: 77.7 Z0: -80
Groove width B1: 6 inc
Groove depth T1: 6 inc
Taper angle α
αα
α0: -30.579
Flank angle α
αα
α1: 16 α
αα
α2: 16
Radius R1: 0.5 R2: 0 R3: 0 R4: 0.5
Infeed depth 1st cut D: 0
Finishing allowance U: 0.0
Tool edge width BS: 3
Number of grooves N: 1
• Press soft key
Result:
9. Longitudinal thread
M12x1.75 (roughing)
• Call
CYCLE mode and press the
Thread
Longitud.
thread
soft
keys
• Set parameters:
T4 P: 1.75 mm/rev G:0 S: 400 rev/min
External
Linear
