Siemens SINUMERIK 810D Operation & Programming Manual

12
08.02 Examples
12.3 Exam
p
le 3: External machinin
g
with thread undercuts and
g
rooves
12
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 12-199
Reference point X0: 40 Z0: -17
Longitudinal thread Z1: -39
Thread run-in (2*F) W: 15
Thread run-out R: 0
Thread depth K: 1.1
Helix angle α:
α:α:
α: 29
Number of cuts AS: 8
Insertion depth E: 0.24
Finishing allowance U: 0
Return distance V: 2
Starting angle offset Q: 0

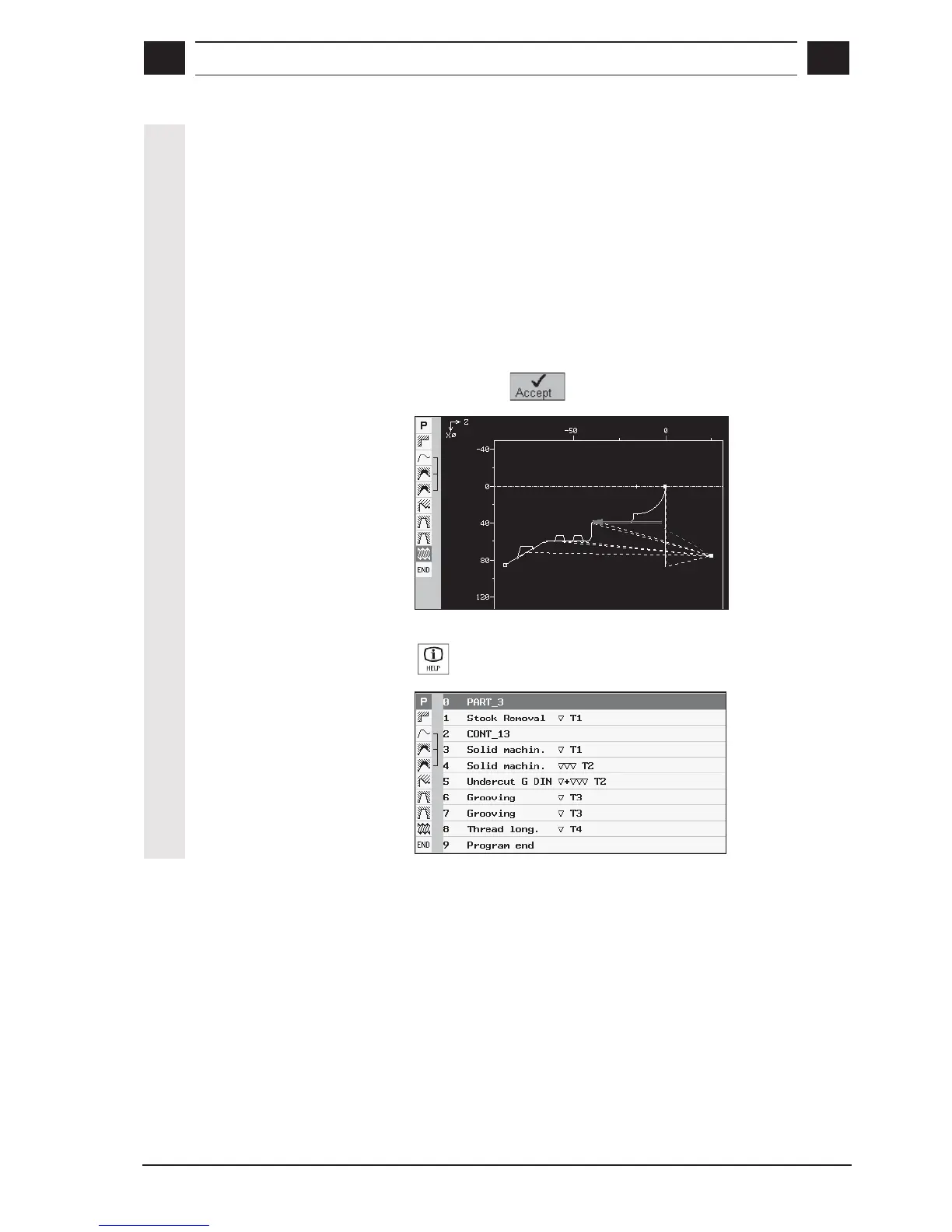

• Press soft key
Result:
10. Completed EasyStep
program
Switch from the programming graphics to the flow chart by pressing
the
key:
