Detailed Description
2.11 General conditions and NC-VAR_Selector
PLC Basic Program Solution Line (P3 sl)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-79

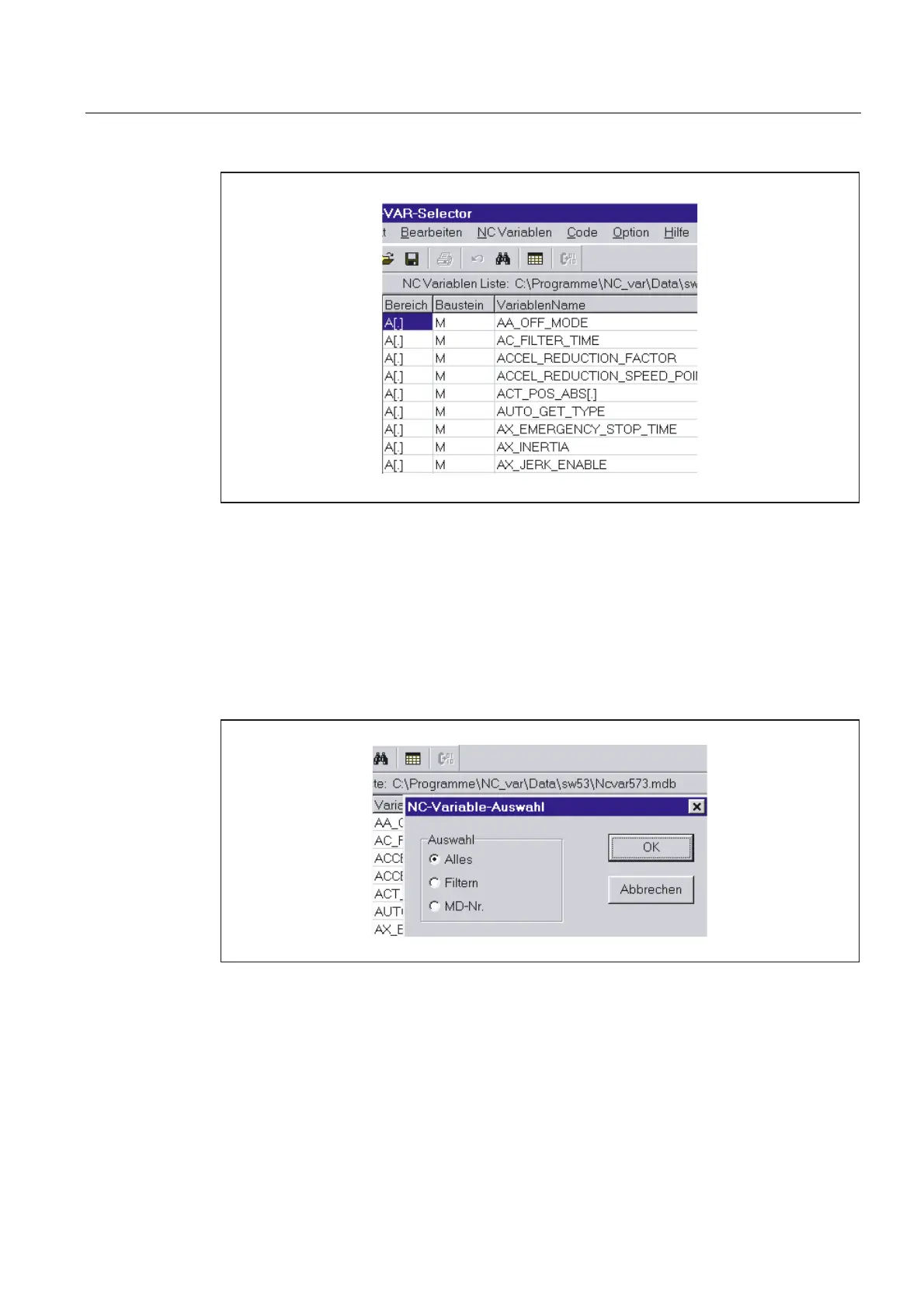

Fig. 2-25 Window with selected Complete List
The field variables (e.g., axis area, T area data, etc.) are indicated by means of brackets ([.]).
Additional information must be specified here. When the variables are transferred to the
project list, the additional information required is requested.
Displaying subsets
Double-click on any table field (with the exception of variable fields) to display a window in
which filter criteria can be preset.
Fig. 2-26 Window with filter criteria for displaying list of variables
There are three options:
• Display all data
• Input area, block and name (incl. combinations)
• Display MD/SE data number
