Detailed Description
2.3 Tool cutting edge
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-31
3 3 3 3 3 3 3
3 6
3 3
;
=
3
6

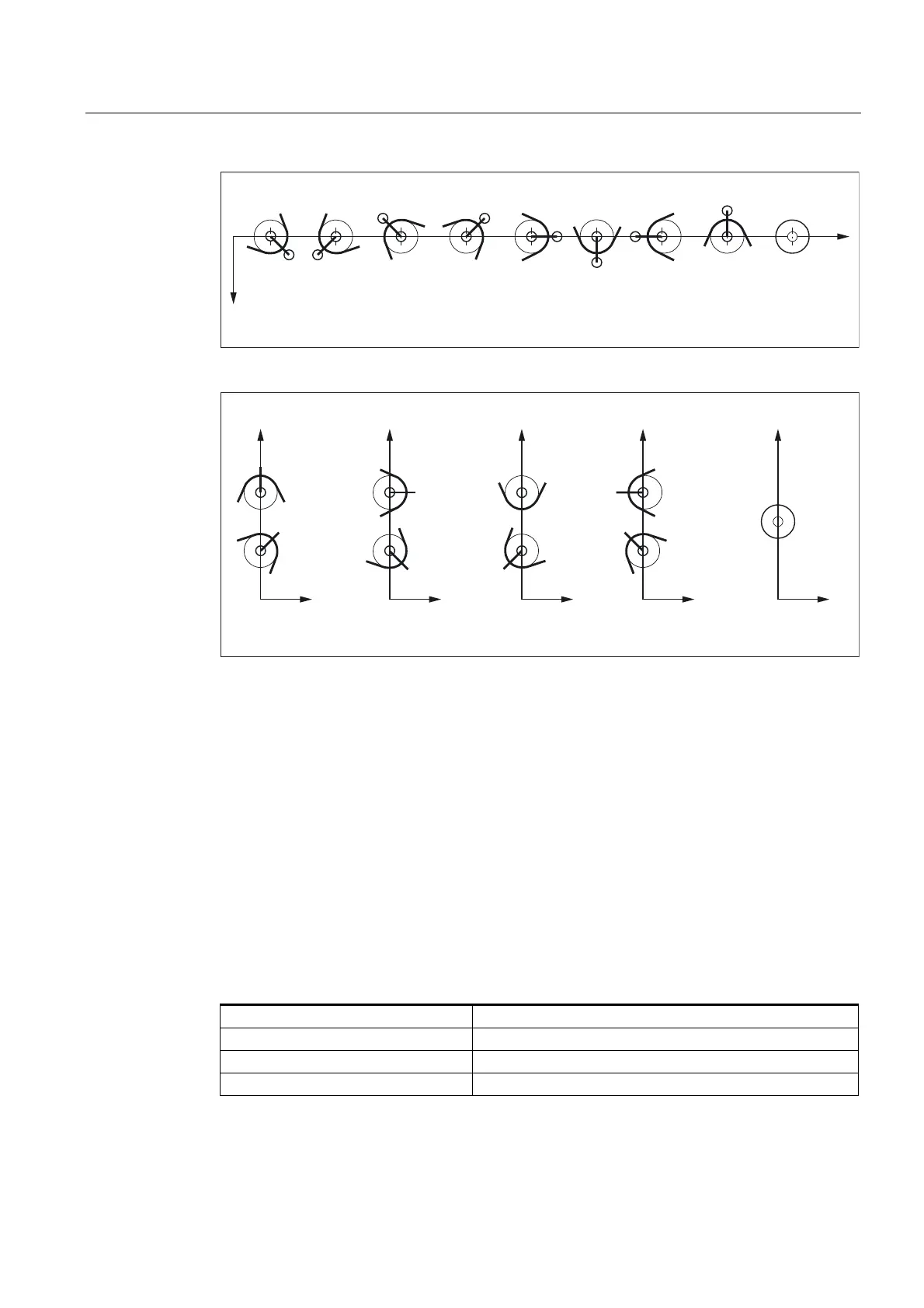

Fig. 2-6 Tool parameter 2 (P2): Machining in front of the turning center
;
=
3 3
3
3 3
3 3
3 6
3
3
3
6
;
=
;
=
;
=
;
=
Fig. 2-7 Tool parameter 2 (P2): Cutting edge position for vertical boring and turning mills
Special feature
• If the cutting edge center point S is used instead of point P as a reference point to
calculate the tool length compensation, the identifier 9 must be entered for the cutting
edge position.
• The identifier 0 (zero) is not permitted as a cutting edge position.
2.3.4 Geometry tool length compensation (tool parameters 3 to 5)
Tool length 1 to 3
The lengths of the tools for tool length compensation are entered as tool lengths 1 to 3 (tool
parameters 3 to 5). The following length specifications must be entered as a minimum for
each tool type:
Tool type 12x, 140, 145, 150: Tool length 1
Tool type 13x: Tool length 1 to 3 (depending on plane G17-G19)
Tool type 2xx: Tool length 1
Tool type 5xx: Tool length 1 to 3
