Detailed Description
2.18 Knee-shaped acceleration characteristic curve
Acceleration (B2)
2-40 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
Y
UHG
Y
PD[
111111
Y
W

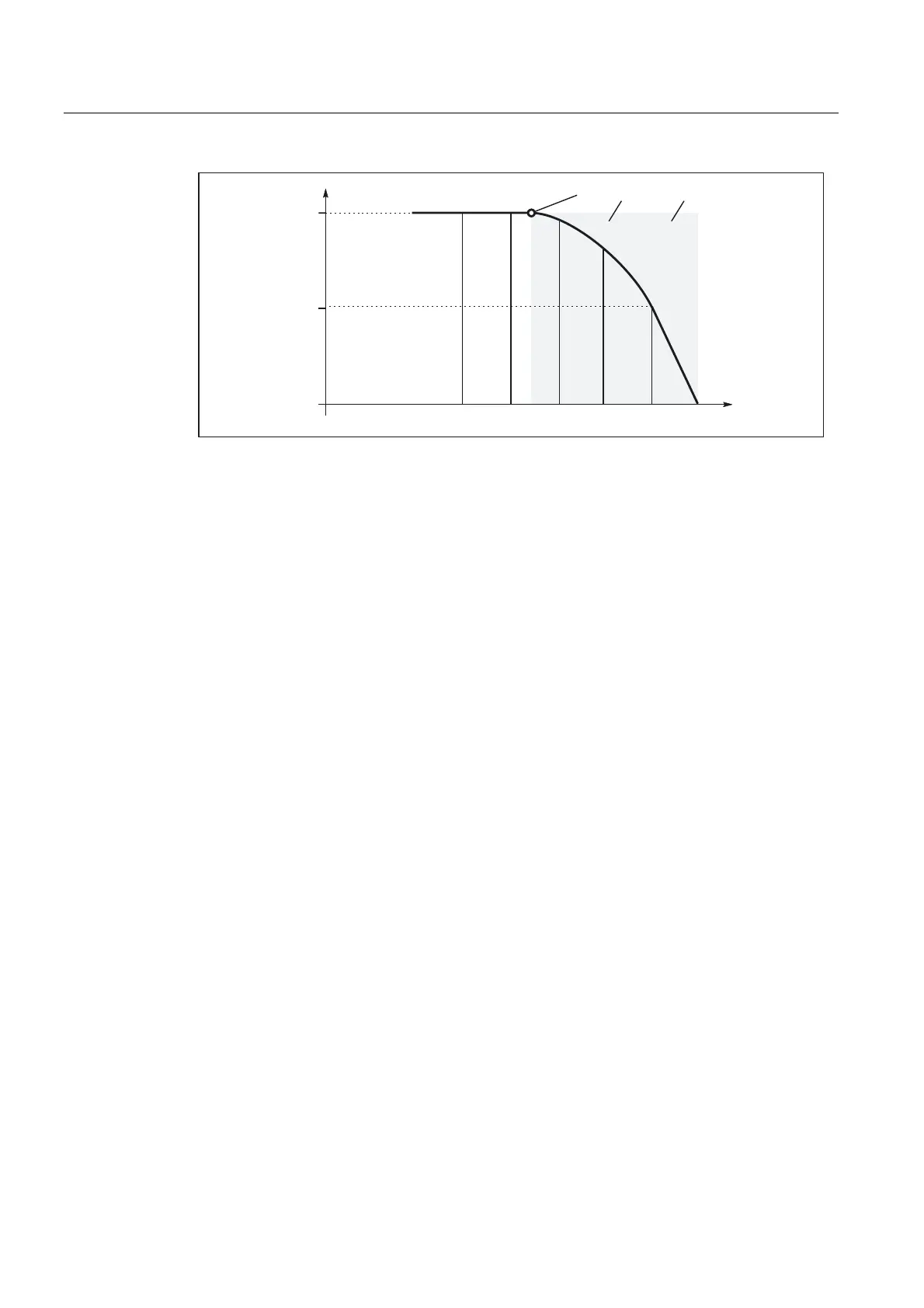

Fig. 2-11 Deceleration with LookAhead
1: Brake application point
2: Torque decrease zone
3: Maximum torque zone
v
red
: Creep velocity
v
max
: Maximum velocity
Nxy: Part program block with block number Nxy
2.18.2 Activation
2.18.2.1 Parameterization
Key statement
The knee-shaped acceleration characteristic curve is parameterized for specific axes using
the following machine data:
MD32000 $MA_MAX_AX_VELO (maximum axis velocity)
MD35220 $MA_ACCEL_REDUCTION_SPEED_POINT
(speed for reduced acceleration)
MD35230 $MA_ACCEL_REDUCTION_FACTOR (reduced acceleration)
MD32300 $MA_MAX_AX_ACCEL (maximum axis acceleration)
MD35242 $MA_ACCEL_REDUCTION_TYPE
(type of acceleration reduction: 0 = constant, 1 = hyperbolic, 2 = linear)
