Detailed Description

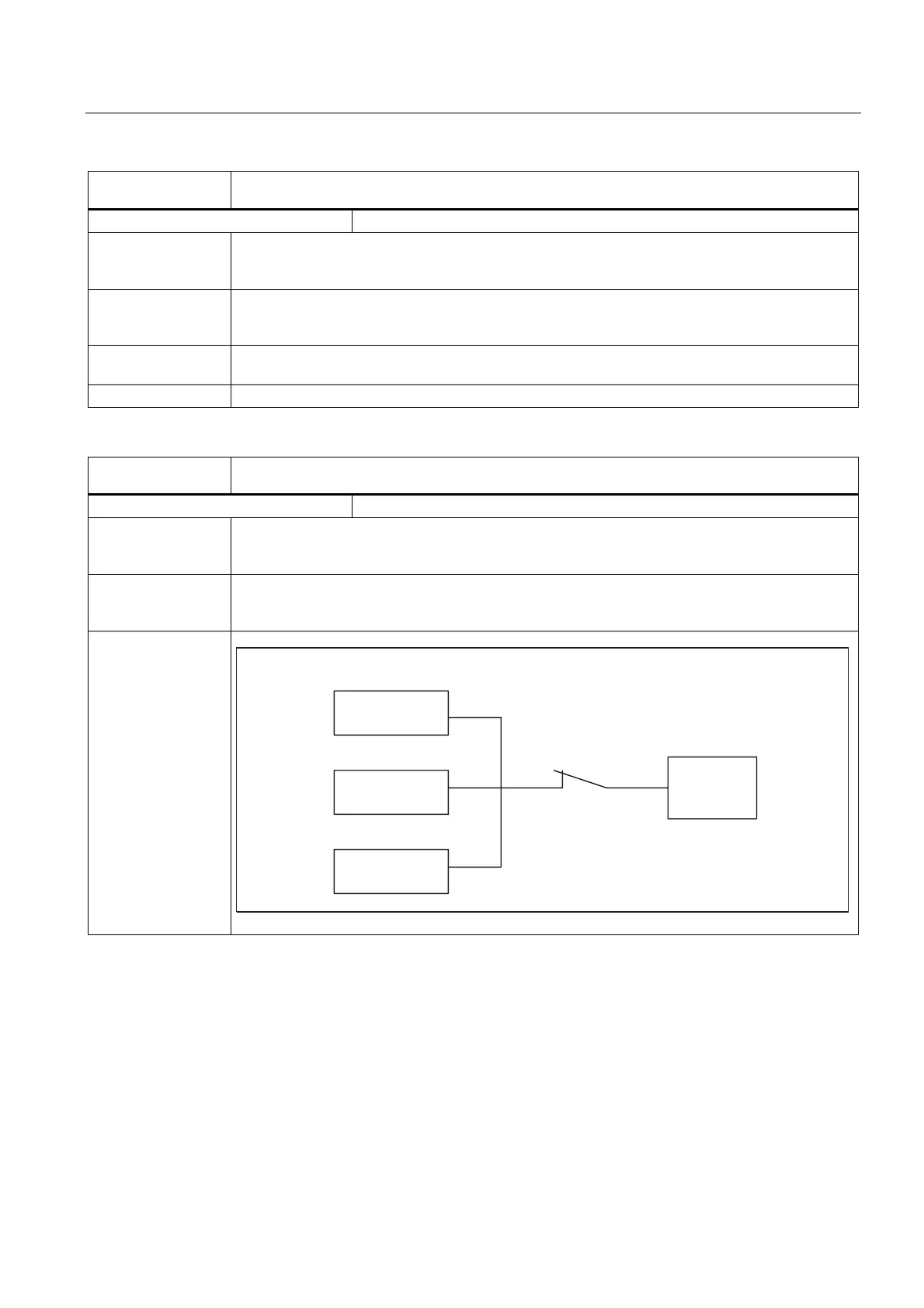

2.9 Mode group, channel, program operation, reset response (K1)
NC/PLC Interface Signals (Z1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-81
DB11, ...
DBX0.2
JOG mode
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
JOG mode is selected by the PLC program.
Signal state 0 or
edge change
1 → 0
JOG mode is not selected by the PLC program.
Signal irrelevant
for ...
DB11, ... DBX0.4 (operating mode, changeover inhibit) = 1
Corresponding to .... DB11, ... DBX6.2 (active JOG mode)
DB11, ...
DBX0.4
Mode changeover inhibit
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The currently active mode (JOG, MDA or AUTOMATIC) of the mode group cannot be changed. The
machine functions that can be selected within a mode group can be changed.
Signal state 0 or
edge change
1 → 0
The mode of the mode group can be changed.
'%;
1&
0RGHVZLWFKRYHU
GLVDEOH
0RGHVHOHFWLRQ
$8720$7,&
PRGH
0'$RSHUDWLQJ
PRGH
-2*
PRGH
