Detailed Description
2.1 General functionality
Travel to Fixed Stop (F1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-11
$AA_FXS and $VA_FXS
In SW 6.2 and higher, the meaning of system variable $AA_FXS is redefined for SERUPRO
only and completely replaced by variable $VA_FXS. Variables $AA_FXS and $VA_FXS have
the same values continuously outside the SERUPRO function.
Description NCK Variables
Axis not at fixed stop $AA_FXS = 0 and $VA_FXS = 0
Fixed stop successfully approached $AA_FXS = 1 and $VA_FXS = 1
Approach to fixed stop failed $AA_FXS = 2 and $VA_FXS = 2
Travel to fixed stop selection active $AA_FXS = 3 and $VA_FXS = 3
Fixed stop detected $AA_FXS = 4 and $VA_FXS = 4
Travel to fixed stop deselection active $AA_FXS = 5 and $VA_FXS = 5

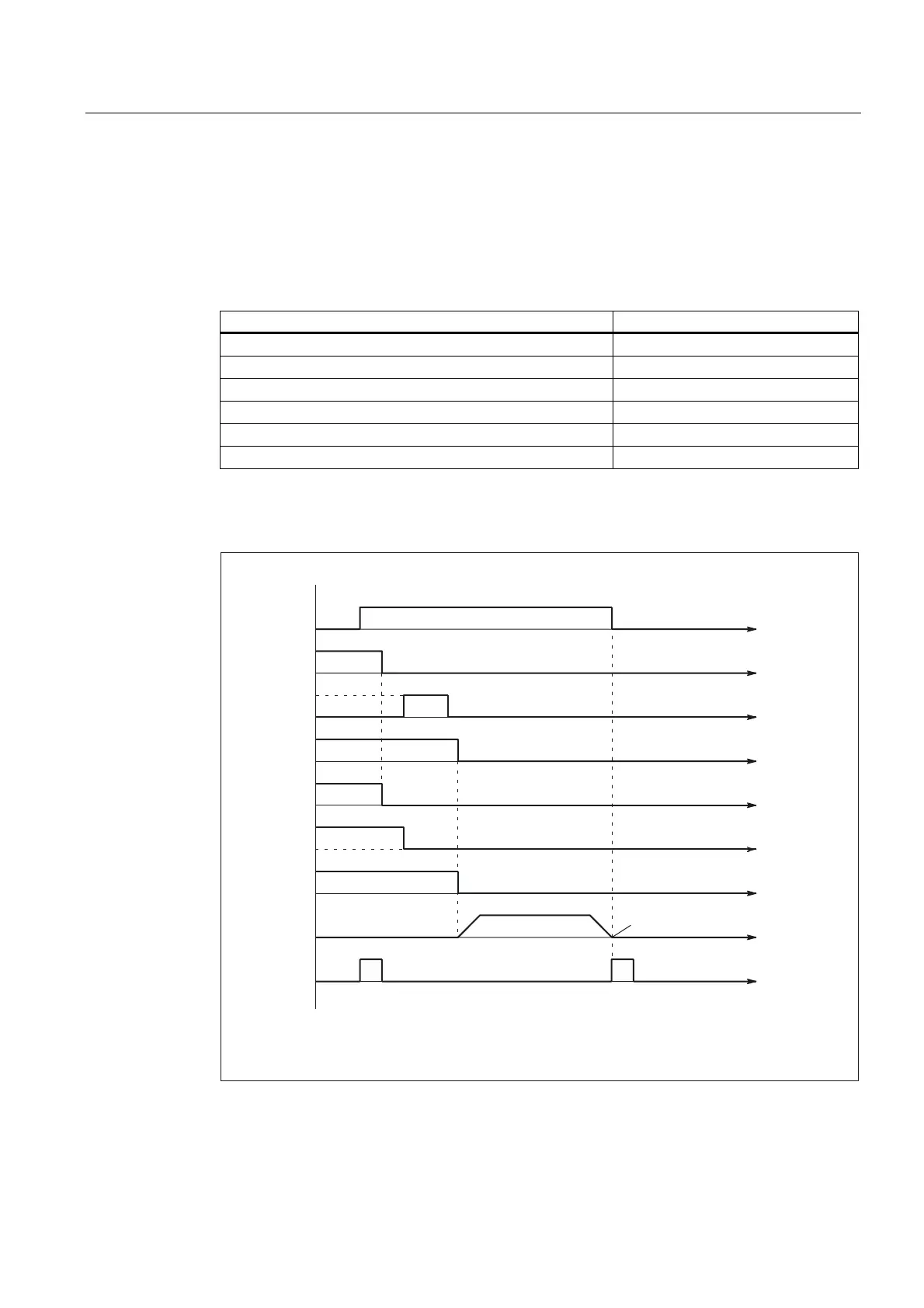

Course of values
Course of values of system variables $VA_FXS[ ] with values 1 to 5
'HVHOHFWEORFNZLWK);6>[@
,6$FWLYDWHWUDYHOWRIL[HGHQGVWRS
6HWYHORFLW\
5HFRUGFKDQJH
$FFHOHUDWLRQDFFRUGLQJWR0'0$;B$;B$&&(/
7HUPLQDOLVVWLOODFWLYHZLWKRXWFKDQJHRYHURIWHUPLQDO
,6)L[HGVWRSUHDFKHG
7HUPLQDODFWLYH
7DUJHWSRVLWLRQGHVHOHFWHGUHFRUG
,6(QDEOHWUDYHOWRIL[HGVWRS
7HUPLQDODFWLYH
,6$FNQRZOHGJHIL[HGVWRSUHDFKHG
Fig. 2-2 Diagram for FXS with a digital drive (611 digital)
