Detailed Description
2.10 System settings for power-up, RESET/part-program end and part-program start
Mode Group, Channel, Program Operation, Reset Response (K1)
2-136 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
Run-up
(POWER ON)
MD 20110:
RESET_MODE_MASK
Bit 0
Bit 0=1
Bit 0=0
(default)
- G codes in MD 20150: GCODE_RESET_VALUES
- Coupled axis groupings are deactivated
- Tangential follow-up is no longer active
- Synchronous spindle coupling is no longer active
- Axial revolutional feedrate off and setting for path and synchronous axes reset to master spindle
- Geometry axis assignment in MD 20050: AXCONF_GEOAX_ASSIGN_TAB
- Master-value coupling is no longer active
- Basic frame is deselected
- Electronic gear is no longer active
- Master spindle Initial setting in MD 20090: SPIND_DEF_MASTER_SPIND
- Master toolholder Initial setting in MD 20124: TOOL_MANAGEMENT_TOOLHOLDER
- Transformation active
in MD 20140
- Geo axis replacement active
in MD 20118 with MD 20050
- Transformation off
- Tool length compensation off
MD 20110
Bit 2 and bit 6
Tool length compensation active
in MD 20120: , MD 20121 and
MD 20130
Bit 2=1
Bit 6=1
Bit 2=0
The tool length compensation
selected before POWER ON
remains active
RESET/Part-program end

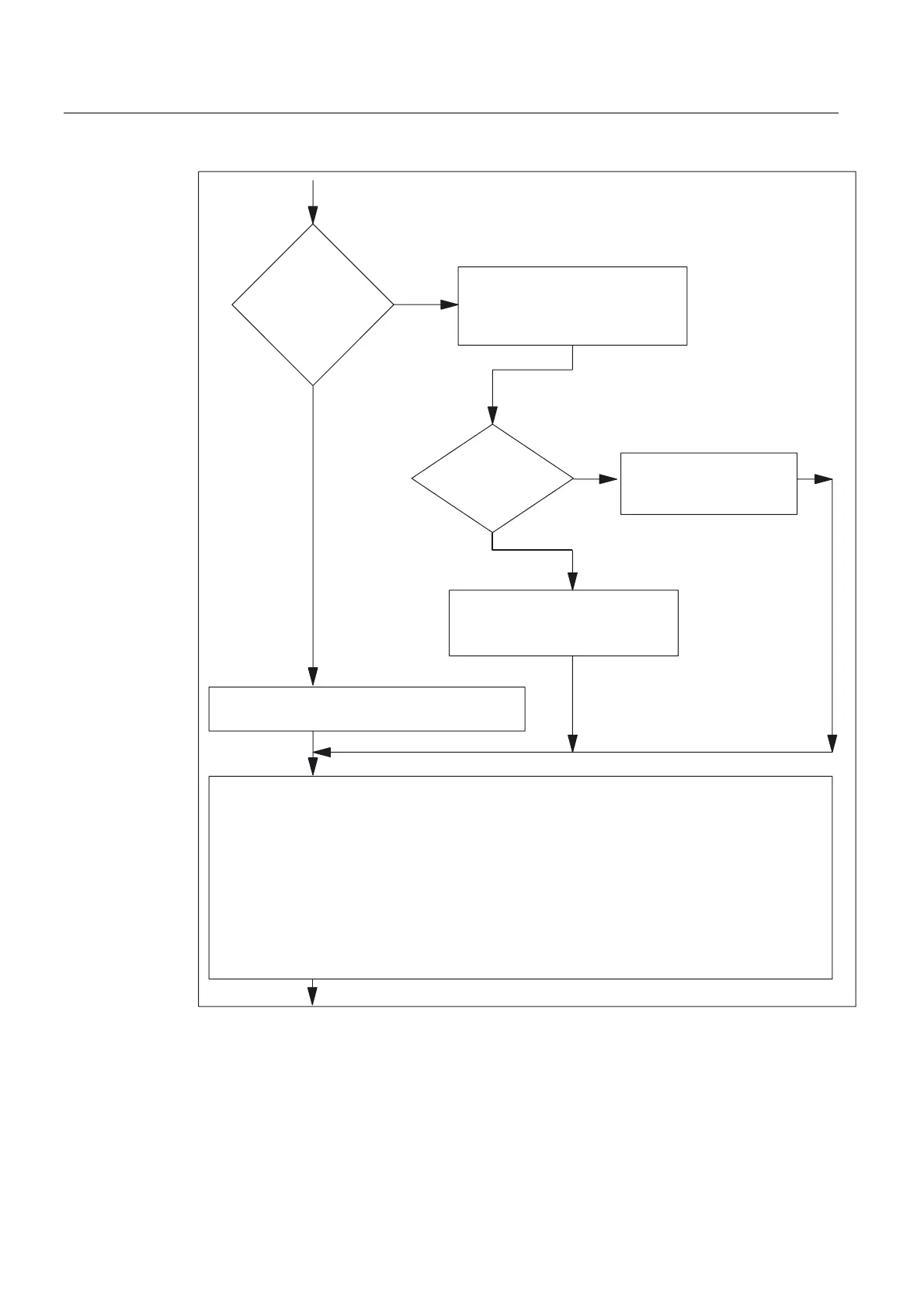

Fig. 2-16 System settings after power-up
• After power-up (POWER ON)
MD20110 $MC_RESET_MODE_MASK, Bit 0 = 0 or 1
Bits 4 - 13 can be combined optionally.
