NOTE
If the mapping file assignment for a SIPROTEC device has been changed, this is usually connected with a
change of the allocations of the SIPROTEC objects to the system interface.
After having selected a new mapping file, please check the allocations to "Target system interface" or
"Source system interface" in the DIGSI allocation matrix.
Edit Field "Module-specific settings"
Change only the numbers in the lines not starting with "//" and observe the semicolon at the end of the lines in
the field Module-specific settings.
Further changes in the field might lead to an error message when closing the dialog box Interface settings.
Select the bus mapping corresponding to your requirements. The documentation of the individual bus
mappings is available on the Internet (www.siprotec.com in the download area).
After having selected the bus mapping, the area of the mapping file in which you can make device-specific
settings appears in the window (see Figure 3-24). The type of this setting depends of the protocol used and is
described in the protocol documentation. Please only perform the described changes in the settings window
and confirm your entries with "OK".

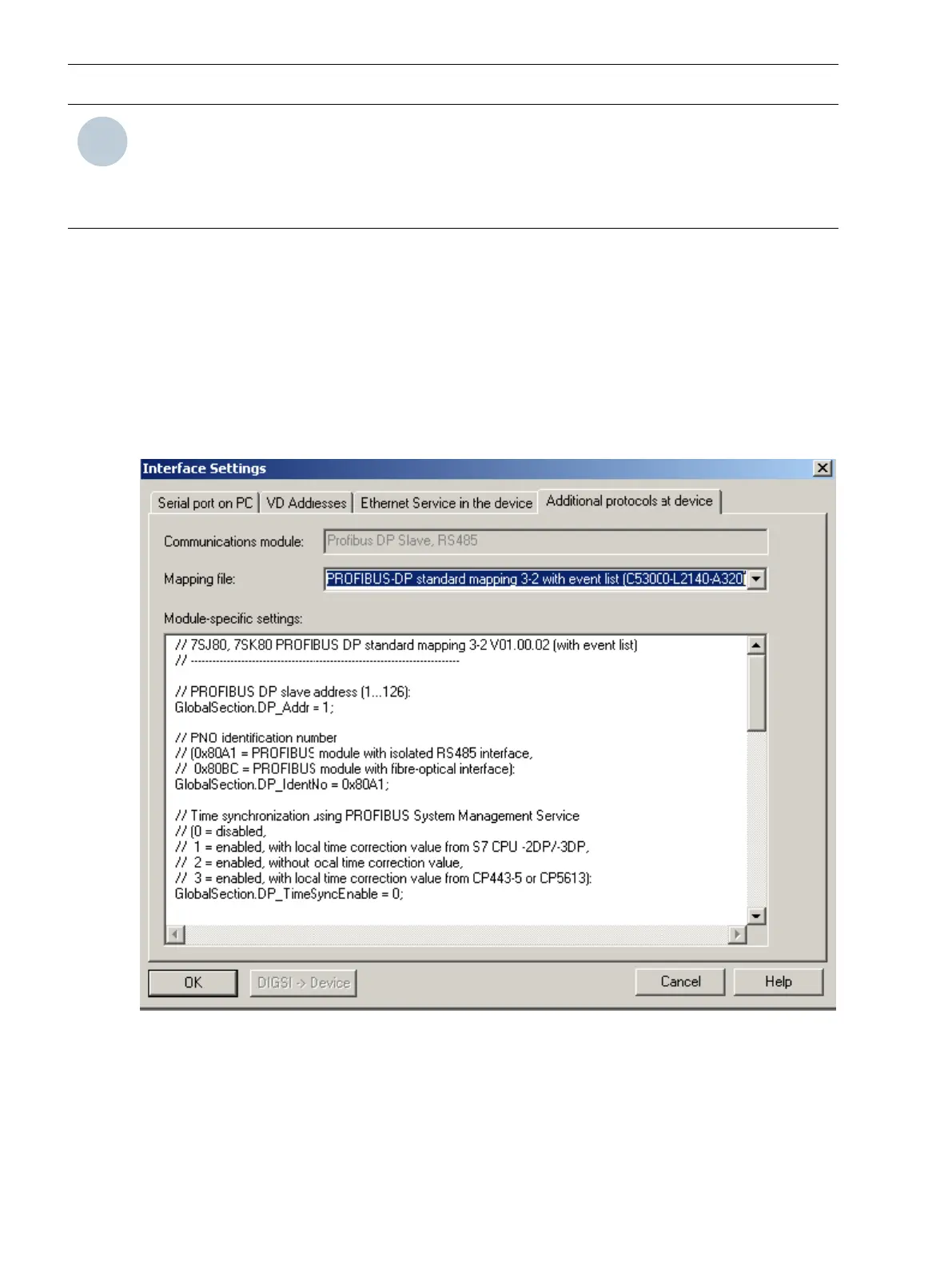

[modulspez-071122, 1, en_US]
Figure 3-24
Module-specific settings
Transfer the data to the protection device (see the following figure).
Mounting and Commissioning
3.3 Commissioning
232 SIPROTEC 4, 7SD80, Manual
E50417-G1100-C474-A2, Edition 02.2018
