All drillings in the area of the specific device cut-out widths (see Table 6-7) must comply with the dimensions
in the corresponding figures.
[dw_z2_2-6, 2, en_US]

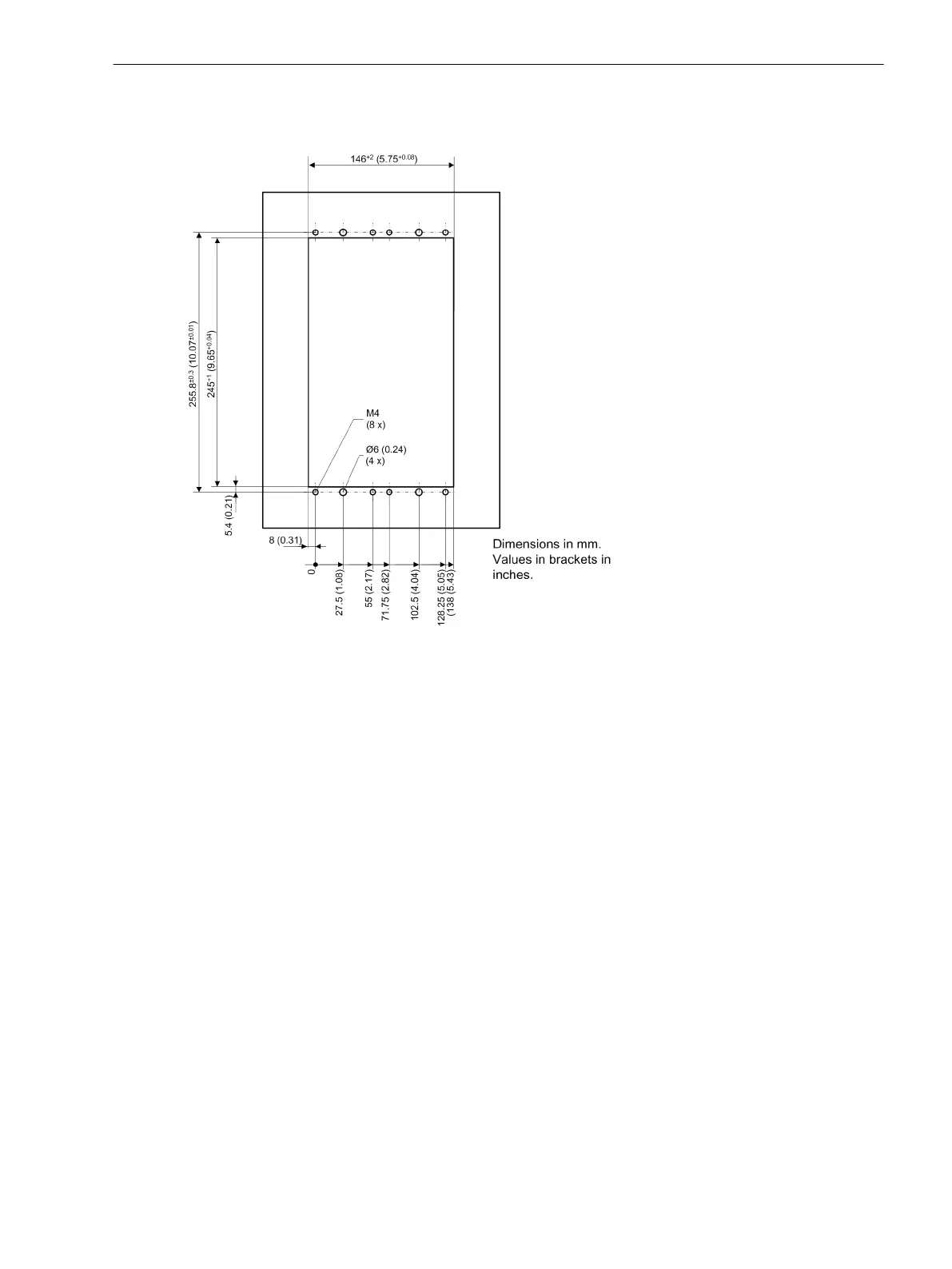

Figure 6-6
Cut-Out Widths and Drilling Pattern – 1/3 Device, 2nd Device Row
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 251
C53000-G5040-C002-J, Edition 08.2020
