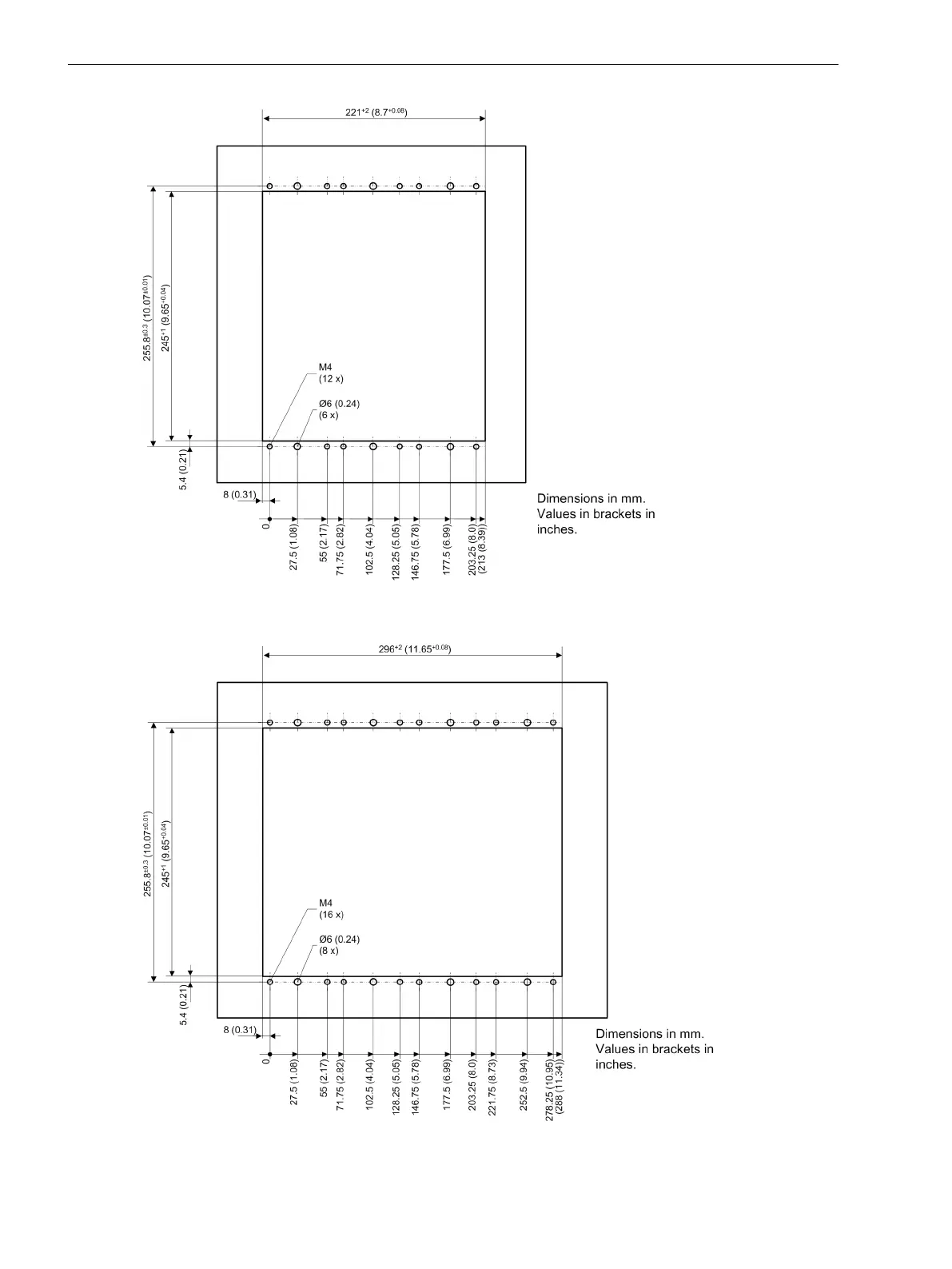

Figure 6-7
Cut-Out Widths and Drilling Pattern – 1/2 Device, 2nd Device Row
[dw_z2_4-6, 2, en_US]
Figure 6-8
Cut-Out Widths and Drilling Pattern – 2/3 Device, 2nd Device Row
Technical Data
6.14 Assembly Dimensions
252 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-J, Edition 08.2020
