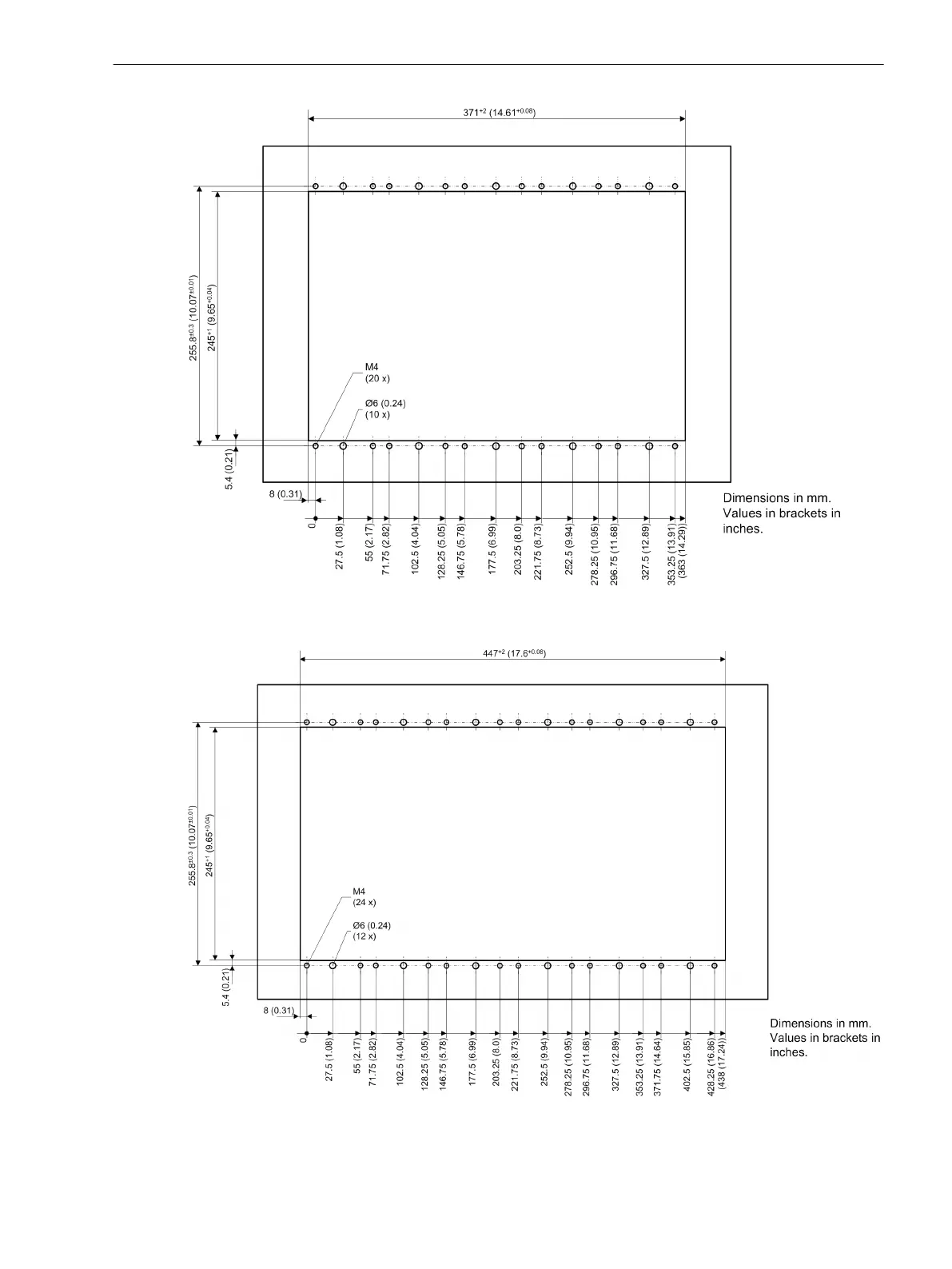

Figure 6-9
Cut-Out Widths and Drilling Pattern – 5/6 Device, 2nd Device Row
[dw_z2_6-6, 3, en_US]
Figure 6-10
Cut-Out Widths and Drilling Pattern – 1/1 Device, 2nd Device Row
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 253
C53000-G5040-C002-J, Edition 08.2020
