Description
3.4 Interaction interfaces
SIRIUS 3RW5 Modbus TCP communication module
24 Manual, 03/2018, A5E43676481002A/RS-AA/001

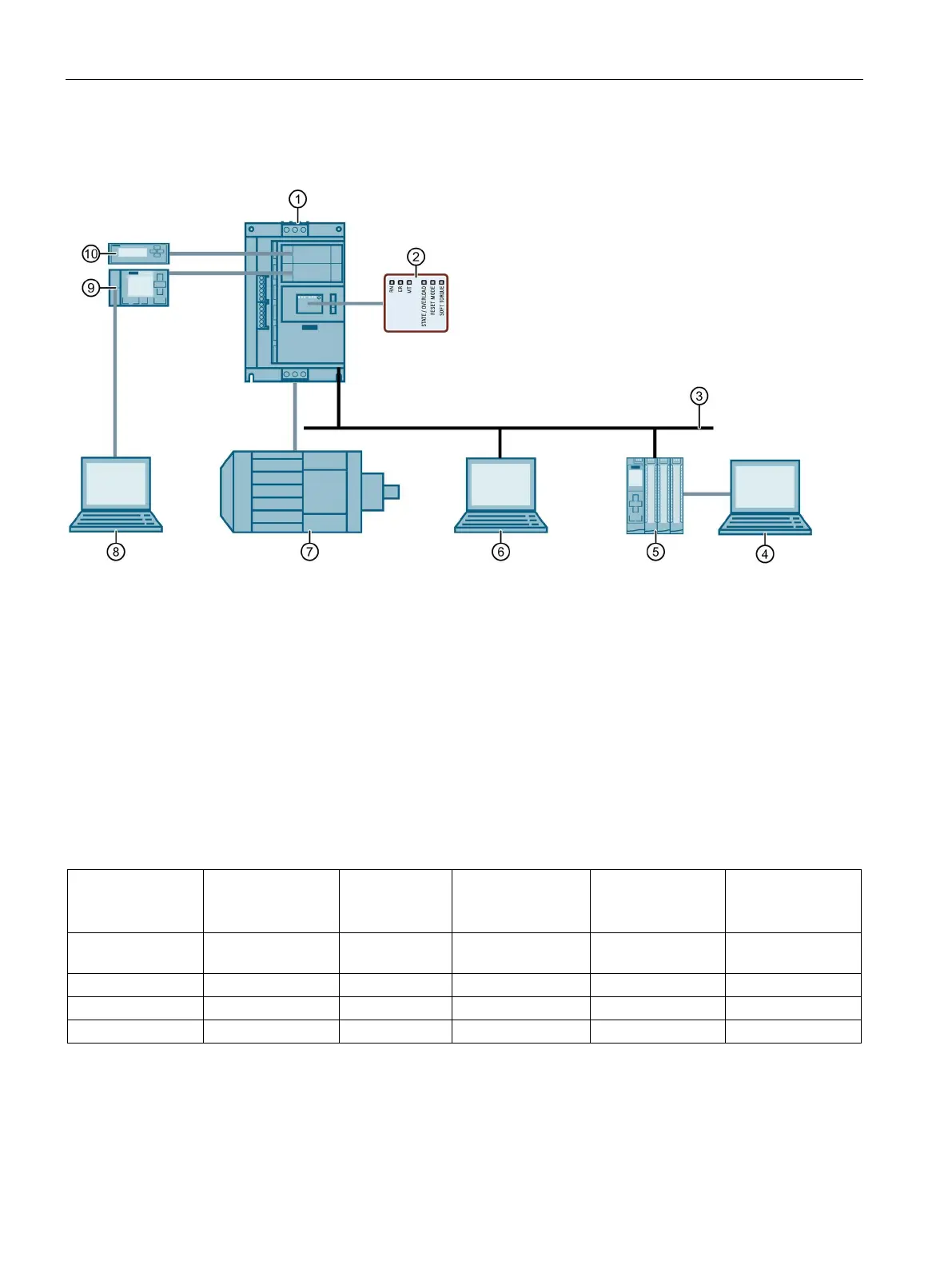

3.4
Interaction interfaces
①
SIRIUS 3RW5 soft starter (illustration similar)
②
LED display on 3RW5 soft starter
③
Modbus TCP (via 3RW5 Modbus TCP communication module)
④
PC / programming device with configuration software of controller (e.g. STEP 7)
⑤
Programmable logic controller (e.g. SIMATIC S7-1500)
⑥
PC with Modbus client
⑦
Motor
⑧
PC with SIRIUS Soft Starter ES (TIA Portal) via local interface on the 3RW5 HMI High Feature
⑨
3RW5 HMI High Feature (accessories depend on 3RW5 soft starter)
⑩
3RW5 HMI Standard (accessories depend on 3RW5 soft starter)
Options for data transfer
3RW5 HMI High
Feature
3RW5 HMI
Standard
SIRIUS Soft Starter
ES (TIA Portal)
1)
Fieldbus via 3RW5
communication
module
3RW5 soft starter
Monitoring ✓ ✓ ✓ ✓
(via user program)
LEDs
Diagnostics
✓
✓
✓
✓
LEDs
Control
✓
✓
✓
✓
Via input IN
Parameterization
o
-
o
o
o
o: Depends on the 3RW5
soft starter
1)
via local interface on the 3RW5 HMI High Feature
